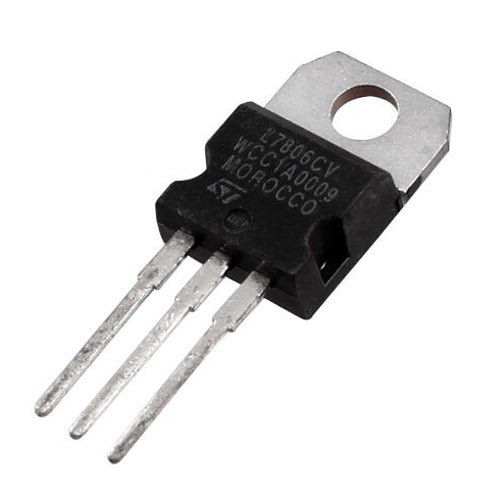

L7806CV Positive Voltage Regulator (6V -1A)

Overview

The L7806CV is a fixed positive voltage regulator that delivers a stable 6V output with a maximum current of 1A. Housed in a TO-220 package, this three-terminal regulator is a reliable solution for powering microcontrollers, sensors, and other 5V/6V logic circuits in your projects. With built-in thermal overload protection and short-circuit protection, it ensures safe and consistent operation in a wide range of applications.

Key Features

• Fixed 6V Output: Provides a precise 6V regulated voltage, ideal for many digital circuits.
• 1A Output Current: Capable of delivering up to 1A to your load.
• Thermal Overload Protection: Automatically shuts down if the temperature exceeds safe limits.
• Short-Circuit Protection: Safeguards the regulator and your circuit from damage.
• TO-220 Package: Standard package with a metal tab for effective heat sinking.
• Low Quiescent Current: Minimizes power consumption in standby.

Technical Specifications

• Output Voltage: 6V (fixed)
• Output Current: 1A (max)
• Input Voltage Range: 8V to 25V (typical)
• Dropout Voltage: 2V (typical at full load)
• Line Regulation: 100mV (max)
• Load Regulation: 100mV (max)
• Operating Temperature Range: 0°C to 125°C
• Package: TO-220

Applications & Use Cases

• Powering Arduino and other 5V/6V microcontrollers
• Supplying stable voltage to sensors, op-amps, and logic ICs
• Building regulated power supplies for hobbyist projects
• Voltage regulation in robotics and automation systems
• Powering LED strips and other moderate-power loads

What's Included

• 1x L7806CV Positive Voltage Regulator (6V -1A)

Compatibility

• Works with any DC power source providing at least 8V (up to 25V) input.
• Compatible with standard breadboard and PCB designs using TO-220 footprint.
• Use with appropriate input/output capacitors (e.g., 0.33µF input, 0.1µF output) for optimal performance.

MOKWN Recommendation

For most applications, the L7806CV is a cost-effective and dependable choice. Ensure adequate heat sinking when operating at currents above 500mA. For higher current requirements, consider using a heatsink or a switching regulator alternative. This regulator is a staple for every electronics lab, perfect for students, hobbyists, and professionals alike.
