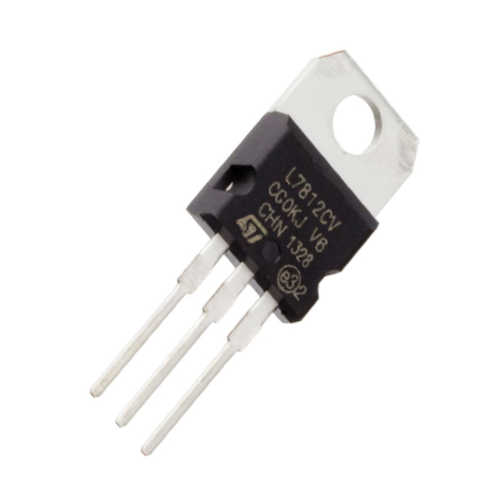

L7812CV Positive Voltage Regulator (12V -1A)

Overview

The L7812CV is a classic three-terminal positive voltage regulator that delivers a fixed 12V output with a maximum current of 1.5A (1A continuous recommended). This through-hole IC is a staple in electronics, providing a simple and reliable solution for stabilizing power supplies in a wide range of projects. Whether you're powering a microcontroller, driving sensors, or building a custom power supply, the L7812CV ensures your circuits receive consistent, clean voltage, protecting sensitive components from fluctuations.

Key Features

• Fixed 12V Output: Provides a stable 12V DC output, ideal for many standard electronic applications.
• 1.5A Output Current: Capable of delivering up to 1.5A (with adequate heat sinking), suitable for powering moderate loads.
• Thermal Overload Protection: Built-in safety shuts down the regulator if it overheats, preventing damage.
• Short Circuit Protection: Automatically limits current to protect the IC and connected components.
• Safe Area Protection: Ensures the transistor operates within safe limits, enhancing reliability.
• Low Quiescent Current: Minimal standby current, improving efficiency.
• TO-220 Package: Easy to mount on a heatsink for better thermal management.

Technical Specifications

• Output Voltage: 12V (fixed)
• Output Current: 1.5A (max), 1A (typical continuous)
• Input Voltage Range: 14.5V to 35V (recommended 19V to 27V for best performance)
• Dropout Voltage: 2V (typical)
• Line Regulation: 10mV (typical)
• Load Regulation: 12mV (typical)
• Operating Temperature Range: 0°C to 125°C (junction)
• Package: TO-220
• Pin Configuration: 1. Input, 2. Ground, 3. Output

Applications & Use Cases

• Powering Arduino, Raspberry Pi Pico, ESP32, and other microcontrollers from a higher voltage source.
• Building a dedicated 12V power supply for LED strips, relays, motors, or other actuators.
• Regulating voltage for sensor networks, IoT devices, and embedded systems.
• Use in bench power supplies, audio circuits, and other DIY electronics projects.
• Providing a stable reference voltage for analog circuits.

What's Included

• 1x L7812CV Positive Voltage Regulator (TO-220 package)

Compatibility

• Works with any circuit requiring a regulated 12V supply, provided the input voltage is at least 14.5V.
• Compatible with standard breadboards and PCBs (through-hole mounting).
• Use with appropriate input and output capacitors (0.33µF input, 0.1µF output) for optimal stability.
• Can be used with a heatsink for currents above 0.5A.

MOKWN Recommendation

The L7812CV is an essential component for any electronics enthusiast. It's reliable, affordable, and easy to use. For most projects, we recommend adding a heatsink if you plan to draw more than 500mA. Pair it with a suitable transformer or AC-DC adapter to create a robust power supply. Whether you're a student, hobbyist, or professional, this regulator will serve you well.
