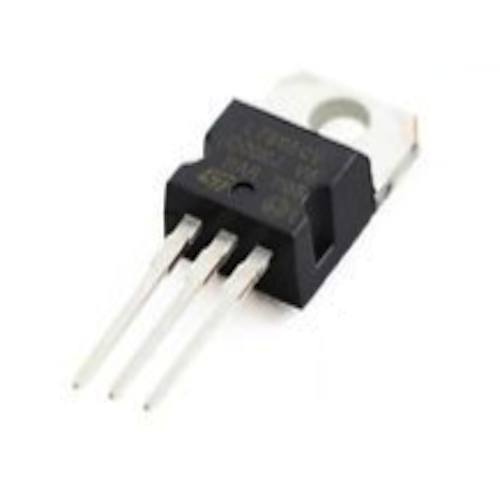

L7824CV Positive Voltage Regulator (24V - 1A )

Overview

The L7824CV is a fixed positive voltage regulator that delivers a stable 24V output with a maximum current of 1.5A. This three-terminal regulator is a staple in electronics, providing clean and reliable power for circuits that require a consistent 24V supply. Whether you're working on industrial controls, audio equipment, or custom power supplies, the L7824CV ensures your projects run smoothly without voltage fluctuations.

Key Features

• Fixed 24V Output: Provides a precise 24V DC output, ideal for circuits that need a steady voltage.
• Output Current up to 1.5A: Capable of driving moderate loads, suitable for a wide range of applications.
• Built-in Protection: Includes thermal overload protection and safe area protection to safeguard the regulator and your circuit.
• Low Quiescent Current: Minimizes power consumption, improving overall efficiency.
• Easy to Use: Standard TO-220 package with three pins (input, ground, output) for simple integration.

Technical Specifications

• Output Voltage: 24V (fixed)
• Output Current: 1.5A (max)
• Input Voltage Range: 27V to 38V (typical)
• Dropout Voltage: 2V (typical at 1A)
• Line Regulation: 10mV (typical)
• Load Regulation: 10mV (typical)
• Package: TO-220
• Operating Temperature Range: 0°C to +125°C

Applications & Use Cases

• Power Supply Design: Build a regulated 24V power supply for your projects.
• Industrial Control Systems: Provide stable voltage to sensors, relays, and microcontrollers.
• Audio Equipment: Power amplifiers and audio circuits that require clean DC.
• Automotive Electronics: Regulate voltage for in-car devices.
• DIY Projects: Ideal for hobbyists and makers needing reliable 24V power.

What's Included

• 1x L7824CV Positive Voltage Regulator (TO-220 package)

Compatibility

• Works with any circuit requiring a 24V regulated supply, including microcontrollers, motor drivers, and sensor arrays.
• Compatible with standard breadboards and PCBs via through-hole mounting.

MOKWN Recommendation

For Egyptian engineers, students, and makers, the L7824CV is an essential component for any project requiring a stable 24V supply. Its reliability and ease of use make it a great choice for both learning and production. Pair it with a suitable heat sink for high-current applications. Order today from MOKWN to keep your projects powered and precise!
