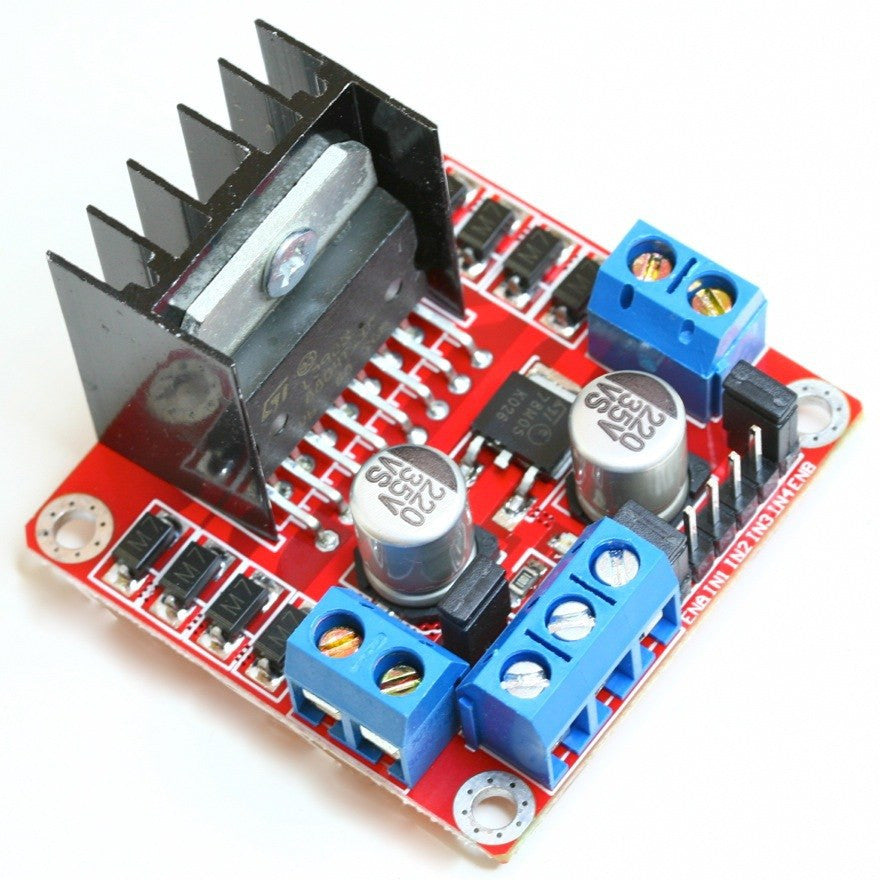

L298 Dual Motor Driver Module 2A

Overview

Take command of your robotics projects with the L298 Dual Motor Driver Module, a reliable and versatile solution for driving two DC motors or one stepper motor. Harnessing the power of the L298N chip, this module delivers up to 2A per channel, making it ideal for a wide range of DIY and educational applications. Whether you're building a robot car, a conveyor system, or an automated project, the L298 module provides robust, straightforward motor control.

Key Features

• Dual H-Bridge: Independently control two DC motors in both directions, or combine channels for a single stepper motor.
• High Current Capacity: Drives up to 2A per channel (peak 3A) with a wide operating voltage range of 5V to 35V.
• 5V Onboard Regulator: Optional jumper-enabled 5V output to power logic circuits and microcontrollers.
• Speed & Direction Control: PWM-enabled inputs for precise speed regulation and simple direction pins for forward/reverse.
• LED Indicators: Visual feedback for motor and power status.
• Robust Design: Screw terminals for secure motor and power connections, plus a heat sink for thermal stability.

Technical Specifications

• Chip: L298N
• Drive Voltage: 5V-35V
• Logic Voltage: 5V
• Logic Current: 0mA (logic inputs draw minimal current)
• Max Output Current per Channel: 2A (peak 3A)
• Number of Channels: 2 (dual H-bridge)
• Control Method: TTL logic inputs, PWM capable
• Dimensions: Approx. 43 x 43 x 27mm
• Weight: Approx. 30g

Applications & Use Cases

• Robotics: Perfect for driving motors in robot cars, tank treads, and robotic arms.
• Automation: Use in conveyor belts, automated gates, and small-scale industrial prototypes.
• Education: Ideal for STEM projects, university labs, and hobbyist learning.
• CNC & 3D Printers: Control stepper motors for precise positioning.
• Smart Home: Operate motorized curtains, blinds, or adjustable beds.

What's Included

• 1 x L298 Dual Motor Driver Module
• 1 x Heat sink (pre-installed)
• (Note: Jumper caps and cables are not included; please check your kit or purchase separately.)

Compatibility

• Microcontrollers: Works with Arduino, Raspberry Pi, ESP32, STM32, and any 5V TTL logic source.
• Motors: Compatible with most DC motors (6V-12V typical) and 4-wire stepper motors.
• Power: Requires an external power supply (e.g., 7V-12V battery pack) for motor power; logic can be 5V from the onboard regulator or external source.

MOKWN Recommendation

The L298 Dual Motor Driver Module is a must-have for any maker's toolkit. Its proven reliability and ease of use make it the go-to choice for beginners and experts alike. Whether you're prototyping a new robot or teaching electronics, this module delivers consistent performance. We recommend pairing it with a quality 12V DC motor and an Arduino board for a seamless start. For projects requiring higher current, consider our L298N-based alternatives or explore our range of advanced motor drivers.
