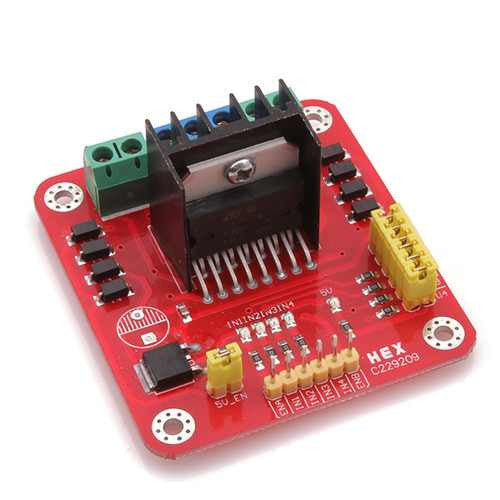

L298 Dual H-Bridge Motor Driver (DC and Stepper Motors)

Overview

Take command of your robotics and automation projects with the L298 Dual H-Bridge Motor Driver. This robust and versatile module is the go-to solution for driving two DC motors or a single stepper motor with precision and ease. Powered by the reliable L298N IC, it delivers high current output up to 2A per channel, making it perfect for a wide range of maker applications—from smart robots to custom CNC machines. Whether you're a student learning embedded systems or a professional engineer prototyping, this driver simplifies motor control, allowing you to focus on innovation.

Key Features

• Dual H-Bridge Configuration: Independently control two DC motors bidirectionally or one bipolar stepper motor.
• High Current Capacity: Supports peak current of 2A per bridge, ideal for small to medium-sized motors.
• Wide Voltage Range: Operates with motor supply voltages from +5V to +35V, accommodating various motor types.
• Onboard 5V Regulator: Can supply logic voltage directly from the motor power source, simplifying wiring.
• Easy Interface: Standard pins for logic inputs and motor connections, compatible with microcontrollers like Arduino, Raspberry Pi, and STM32.
• Thermal Protection: Designed to operate in a wide temperature range (-25°C to +130°C) for reliable performance.

Technical Specifications

• Driver IC: L298N Dual H-Bridge DC Motor Driver
• Peak Output Current per Channel: 2A
• Motor Supply Voltage (Vs): +5V to +35V
• Logic Supply Voltage (Vss): +5V to +7V (onboard 5V regulator available)
• Storage Temperature: -25°C to +130°C
• Control Interface: TTL/CMOS compatible logic inputs

Applications & Use Cases

• Robotics: Build differential-drive robots, line followers, and obstacle avoiders.
• RC Vehicles: Control motors in remote-controlled cars, boats, and tanks.
• CNC Machines: Drive stepper motors for precise positioning in 3D printers and laser engravers.
• Automation Projects: Use in conveyor belts, smart curtains, and industrial prototypes.
• Educational Projects: Ideal for university labs and STEM workshops.

What's Included

• 1x L298 Dual H-Bridge Motor Driver Module
• (Note: Heatsink may be included depending on version; check product listing for details.)

Compatibility

• Compatible with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers.
• Works with DC motors (6V-12V typical) and bipolar stepper motors (4, 6, or 8 wires).
• Can be used with PWM for speed control and direction pins for steering.

MOKWN Recommendation

For Egyptian makers seeking a reliable and affordable motor driver, the L298 is a solid choice. It's perfect for educational projects and hobbyist robotics. For higher current applications (above 2A), consider our L298N High-Power variant or the TB6612FNG module. Pair it with our range of DC motors and stepper motors for a complete solution. Order now and get free delivery within Cairo for orders over 500 EGP!
