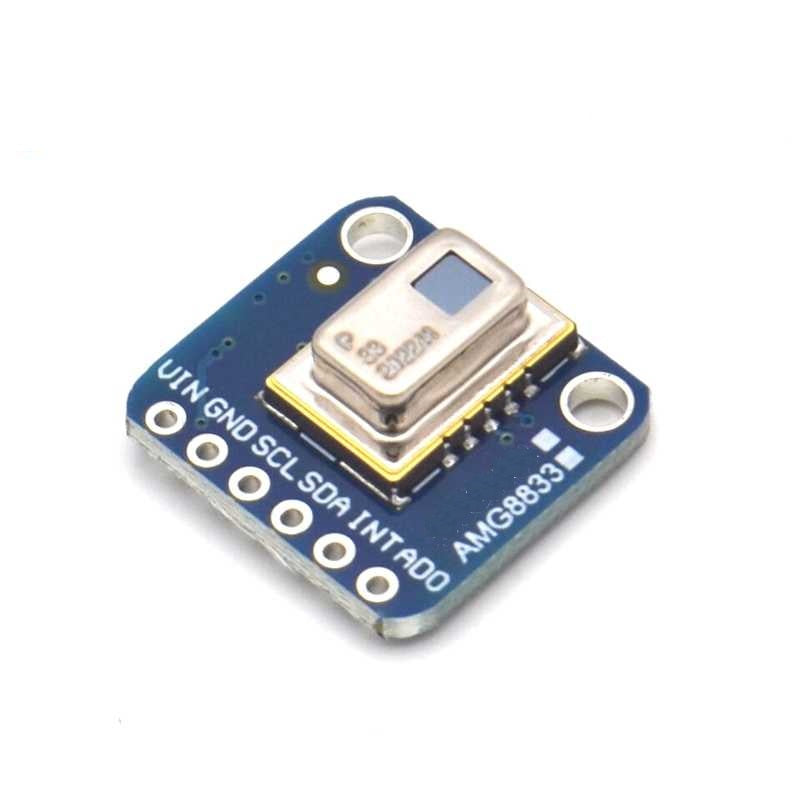

Infrared Thermal Camera Sensor (AMG8833)

Overview

The AMG8833 Infrared Thermal Camera Sensor is a compact, high-performance 8x8 (64-pixel) infrared thermal sensor array that enables you to visualize temperature distribution in real-time. This sensor detects infrared radiation from objects and converts it into a temperature map, allowing you to 'see' heat signatures even in complete darkness. With a detection range of up to 7 meters, it's perfect for building your own thermal camera, presence detection systems, or any project that requires non-contact temperature sensing.

Key Features

• 8x8 Pixel Resolution: Provides a 64-point thermal map for detailed temperature analysis.
• Wide Detection Range: Accurately detects heat sources from up to 7 meters away.
• High Accuracy: Temperature measurement accuracy of ±2.5°C, sufficient for most hobbyist and prototyping applications.
• I2C Interface: Easy to connect with popular microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32.
• Compact Design: Small form factor (11.6 x 8.0 x 4.3 mm) for easy integration into your projects.
• Low Power Consumption: Operates at 3.3V, drawing only ~4.5mA, ideal for battery-powered applications.
• Wide Temperature Range: Can measure objects from 0°C to 80°C, covering a broad spectrum of thermal applications.

Technical Specifications

• Sensor Type: Infrared thermal array (8x8 pixels)
• Operating Voltage: 3.3V (5V tolerant I2C lines)
• Interface: I2C (address 0x68 or 0x69)
• Temperature Range: 0°C to 80°C (object temperature)
• Accuracy: ±2.5°C
• Field of View: 60°
• Detection Distance: Up to 7 meters
• Frame Rate: 10 frames per second
• Current Consumption: 4.5mA (typical)
• Dimensions: 11.6 x 8.0 x 4.3 mm (sensor module)

Applications & Use Cases

• Thermal Imaging Camera: Build a low-cost thermal camera for educational or hobbyist projects.
• Human Presence Detection: Detect the presence of people or animals in a room for smart home automation.
• Overheating Detection: Monitor electronic components, motors, or batteries to prevent overheating.
• Energy Audits: Identify heat leaks in buildings or insulation gaps.
• Medical Screening: Non-contact fever screening at entrances (with appropriate calibration).
• Robotics: Enable robots to detect heat signatures for object tracking or navigation.

What's Included

• 1x AMG8833 Infrared Thermal Camera Sensor Module
• 1x Pin Header Strip (breakaway)
• (Note: No microcontroller or display included)

Compatibility

• Arduino: Works with any Arduino board via I2C (use Wire library).
• Raspberry Pi: Connect via I2C pins (requires enabling I2C).
• ESP32/ESP8266: Compatible with I2C interface.
• STM32: Works with standard I2C peripherals.
• Micro:bit: Can be used with breakout boards.
• Compatible Libraries: Adafruit AMG88xx library, or your own custom code.

MOKWN Recommendation

This sensor is a fantastic entry point into thermal imaging for makers, students, and engineers. Its ease of use and I2C interface make it a must-have for any electronics project that requires temperature mapping. Whether you're building a smart home system, a robotics project, or just exploring thermal technology, the AMG8833 offers excellent value for its price. We recommend pairing it with an OLED display or a graphical LCD for immediate visual feedback.
