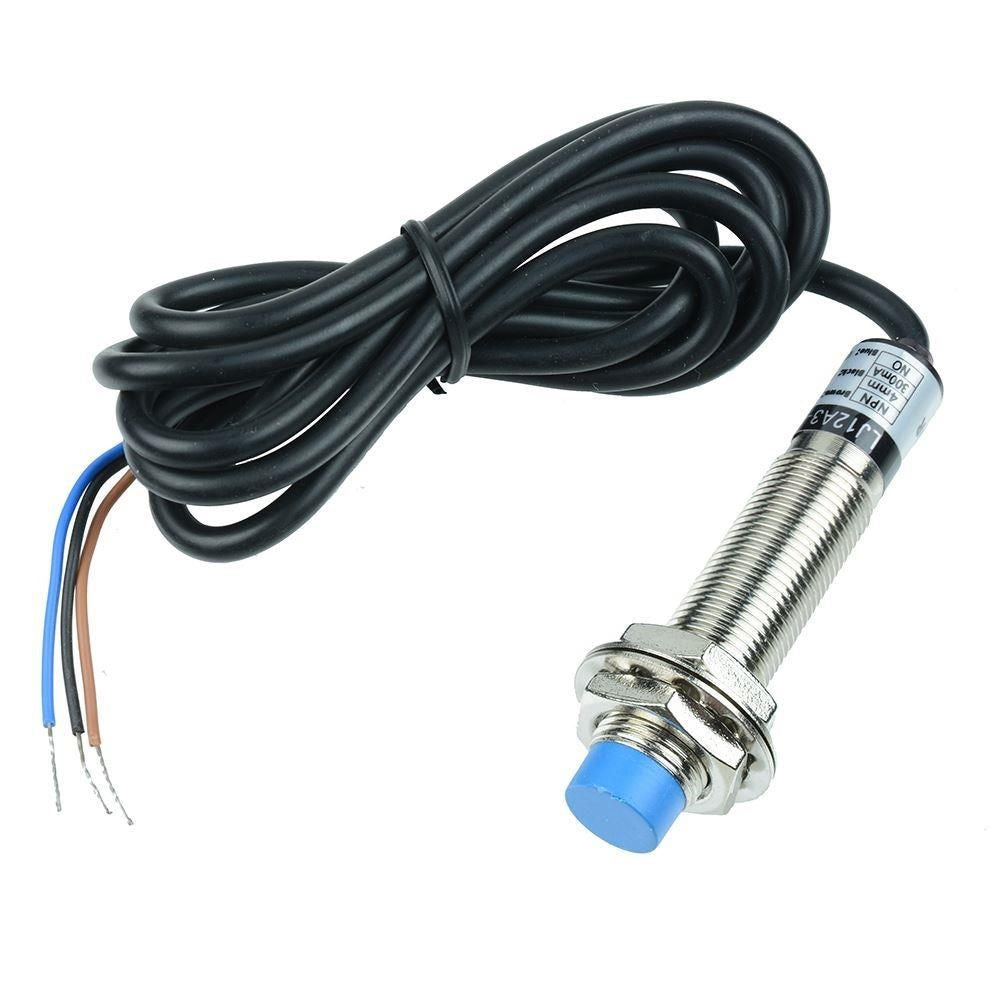

Inductive Proximity Sensor PNP (Metal Object Detection)

Overview

The Inductive Proximity Sensor PNP is a robust, non-contact metal detection solution designed for industrial automation, robotics, and embedded systems. This 12mm cylindrical sensor reliably detects ferrous metal objects within a 4mm sensing range, making it ideal for position sensing, counting, and limit switch applications. Its PNP (Normally Open) output and wide 6-36V DC operating voltage ensure easy integration with most PLCs, microcontrollers, and industrial controllers.

Key Features

• Reliable Metal Detection: Detects ferrous metal objects without physical contact, ensuring long service life and high repeatability.
• PNP Normally Open Output: Provides a high signal when a target is detected, compatible with most industrial inputs and microcontrollers.
• Wide Operating Voltage: 6-36V DC allows use in various systems, from low-voltage hobby projects to industrial control panels.
• Compact 12mm Housing: Cylindrical design with threaded mounting for easy installation in tight spaces.
• LED Indicator: Built-in LED shows detection status for quick troubleshooting and setup.
• IP67 Protection: Dust-tight and protected against temporary immersion, suitable for harsh environments.

Technical Specifications

• Size: 12 mm diameter
• Output Type: PNP (Normally Open), 3-wire configuration
• Detection Range: 4 mm (flush mounted)
• Operating Voltage: 6-36 V DC
• Detected Object Material: Ferrous metals (e.g., iron, steel)
• Output Current: Typically up to 200 mA
• Protection Rating: IP67
• Connection: 3-wire cable (brown, blue, black)

Applications & Use Cases

• Industrial Automation: Position sensing, part presence detection, and limit switching on conveyor systems.
• Robotics: End-of-arm tooling, obstacle detection, and precise positioning in robotic arms.
• CNC & 3D Printers: Homing sensors for axes, filament runout detection, and bed leveling.
• Security Systems: Detecting opening of metal doors or presence of metal objects.
• Educational Projects: Ideal for teaching automation concepts in universities and technical schools.

What's Included

• 1x Inductive Proximity Sensor PNP (12mm, 4mm range)
• Mounting nuts and instructions (if applicable)

Compatibility

• Works with any system that accepts a PNP (sourcing) digital input, including:
• Arduino, Raspberry Pi, ESP32, and other microcontrollers (with proper voltage level shifting if needed)
• PLCs and industrial controllers
• Relay modules and motor controllers

MOKWN Recommendation

For Egyptian makers and engineers, this inductive sensor is a dependable choice for adding metal detection to your projects. Its robust build and wide voltage range make it a versatile component for both hobby and industrial use. Pair it with our selection of Arduino boards and relay modules to quickly build automation systems. Available now at MOKWN with fast delivery across Egypt.
