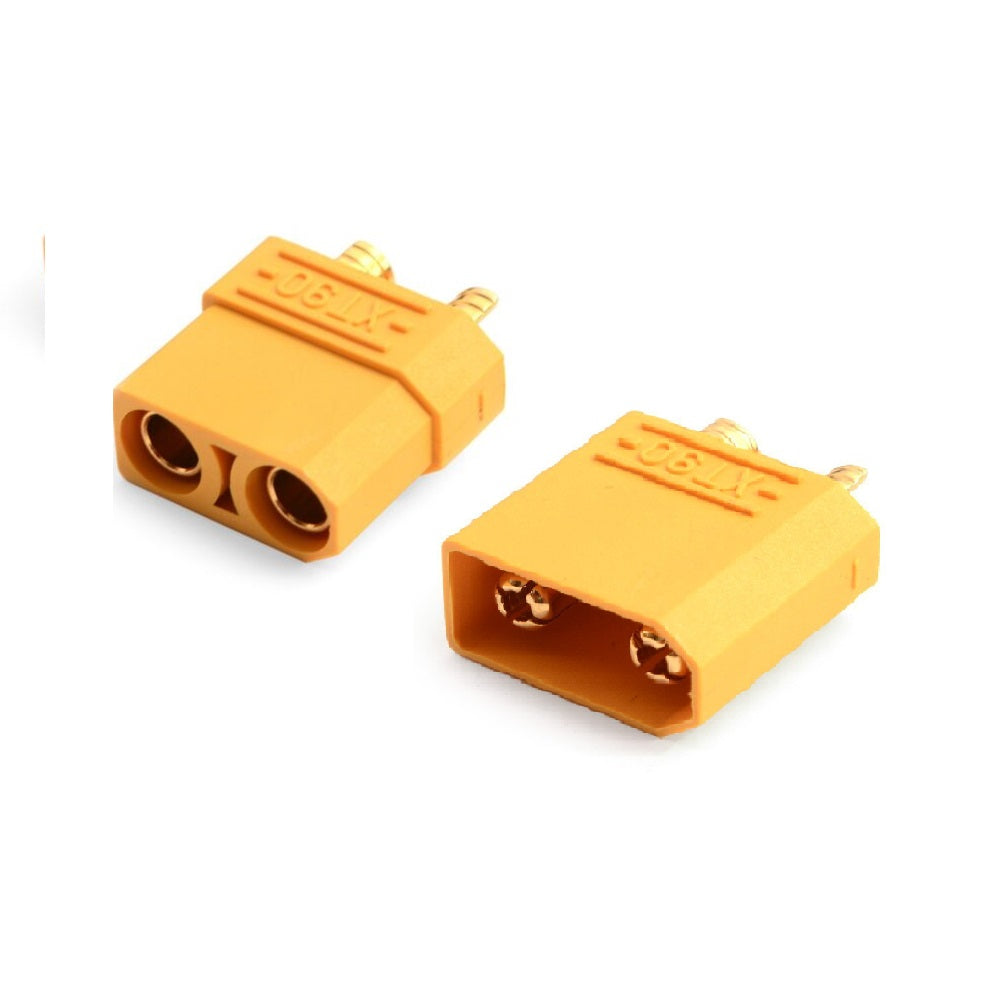

High Current Battery Connector XT90 (Male + Female)

Overview

Meet the XT90 High Current Battery Connector – the robust, reliable solution for demanding power applications. Engineered for high-current circuits up to 90A at 600V DC, this male and female connector pair ensures a secure, low-resistance connection that minimizes power loss and heat buildup. Whether you're building a high-performance RC vehicle, a solar power system, or an advanced robotics project, the XT90 delivers the performance and safety you need. Its gold-plated contacts and durable housing provide excellent conductivity and long-lasting reliability, making it a favorite among hobbyists and professionals alike.

Key Features

• High Current Capacity: Handles continuous currents up to 90A at 600V DC (nominal 45A), ideal for power-hungry applications.
• Secure Connection: The male and female connectors feature a snap-fit design that locks firmly, preventing accidental disconnection during vibration or movement.
• Low Resistance: Gold-plated contacts ensure minimal resistance, reducing heat generation and improving overall efficiency.
• Durable Construction: High-quality nylon housing and gold-plated terminals withstand repeated plugging/unplugging cycles and harsh environments.
• Color-Coded Design: Distinct red and black housings for easy polarity identification, reducing wiring errors.
• Easy to Solder: Large solder lugs provide a solid connection point for wires up to 10 AWG (5.26 mm²).
• Versatile: Suitable for a wide range of high-current DC applications.

Technical Specifications

• Maximum Continuous Current: 90A @ 600V DC
• Nominal Continuous Current: 45A
• Contact Resistance: ≤ 0.5 mΩ
• Insulation Resistance: ≥ 100 MΩ
• Operating Temperature: -20°C to +120°C
• Housing Material: Nylon (PA66)
• Contact Material: Gold-plated copper alloy
• Wire Gauge: Up to 10 AWG (5.26 mm²)
• Dimensions: Male: 34.5mm x 16.5mm x 10mm; Female: 36mm x 16.5mm x 10mm
• Color: Red (male) / Black (female)

Applications & Use Cases

• RC Hobby: Perfect for high-performance RC cars, drones, and boats that draw high currents.
• Robotics: Ideal for powering robotic arms, servo systems, and autonomous robots with high power requirements.
• Solar Power Systems: Connect solar panels, batteries, and charge controllers safely and efficiently.
• E-Bikes & E-Scooters: Reliable battery-to-controller connections for electric mobility devices.
• DIY Electronics Projects: Great for power distribution in custom builds, power supplies, and battery packs.
• Industrial Equipment: Suitable for testing equipment, power tools, and other high-current DC applications.

What's Included

• 1x XT90 Male Connector
• 1x XT90 Female Connector

Compatibility

• Works with a wide range of high-current DC power systems, including LiPo batteries, brushed/brushless motors, and power distribution boards.
• Compatible with standard XT90 connectors from other brands.
• Recommended for use with wires up to 10 AWG for optimal performance.

MOKWN Recommendation

At MOKWN, we trust the XT90 connector for high-current projects that demand reliability. Whether you're a student working on a university project, a professional engineer, or a hobbyist, this connector offers the perfect balance of performance and safety. For the best results, pair it with high-quality silicone wire and use proper soldering techniques. Upgrade your power connections today with the XT90 – your projects deserve it!
