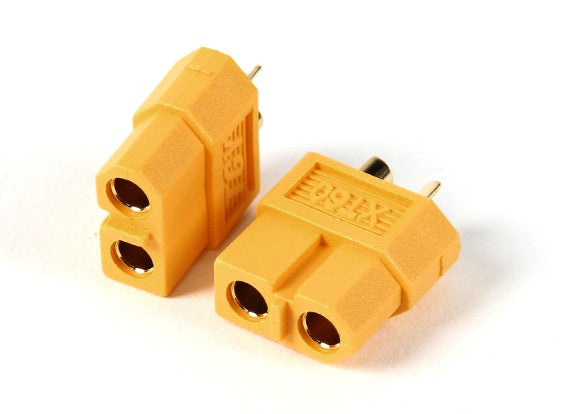

Connector XT60 ( Female)

Overview

The Connector XT60 (Female) from MOKWN is an essential component for any serious electronics project that requires reliable, high-current power connections. Designed for use with lithium polymer (LiPo) batteries, power supplies, and various high-drain devices, this female connector ensures a secure and low-resistance connection. Its robust construction and gold-plated contacts minimize power loss and prevent overheating, making it a top choice for drones, RC vehicles, robotics, and custom power distribution systems.

Key Features

• High Current Capacity: Rated for continuous currents up to 30A (60A peak), suitable for demanding applications.
• Secure Connection: Snap-fit design provides a firm, vibration-resistant lock, preventing accidental disconnection.
• Low Resistance: Gold-plated contacts ensure excellent conductivity and minimal voltage drop.
• Durable Construction: Made from high-quality nylon housing with heat-resistant properties, capable of withstanding high temperatures.
• Easy Soldering: Tinned solder cups allow for quick and reliable solder joints.

Technical Specifications

• Connector Type: XT60 Female
• Current Rating: 30A continuous (60A peak)
• Voltage Rating: 600V (AC/DC)
• Contact Resistance: ≤ 0.5 mΩ
• Contact Material: Gold-plated copper alloy
• Insulation Material: Nylon (PA66), UL94V-0 rated
• Operating Temperature: -20°C to +120°C
• Wire Gauge Compatibility: 12-14 AWG (recommended)
• Mating Cycles: ≥ 500 cycles

Applications & Use Cases

• Drones & FPV: Connect LiPo batteries to flight controllers and power distribution boards.
• RC Hobby: Ideal for RC cars, boats, and planes where high discharge rates are common.
• Robotics: Power high-torque motors and actuators in DIY and educational robots.
• Power Supplies: Use as a safe connection point for bench power supplies and battery chargers.
• Portable Projects: Perfect for custom battery packs and portable electronics requiring reliable power.

What's Included

• 1x XT60 Female Connector

Compatibility

• Works with all standard XT60 male connectors (available separately at MOKWN).
• Compatible with 12-14 AWG silicone wire (not included).
• Common in LiPo batteries, ESCs, and chargers from major brands.

MOKWN Recommendation

For a complete and reliable power solution, pair this female XT60 connector with our XT60 male connectors and high-quality silicone wire. Whether you're building a drone, upgrading an RC vehicle, or developing a custom power system, this connector ensures safe and efficient power delivery. Order now and power your projects with confidence!
