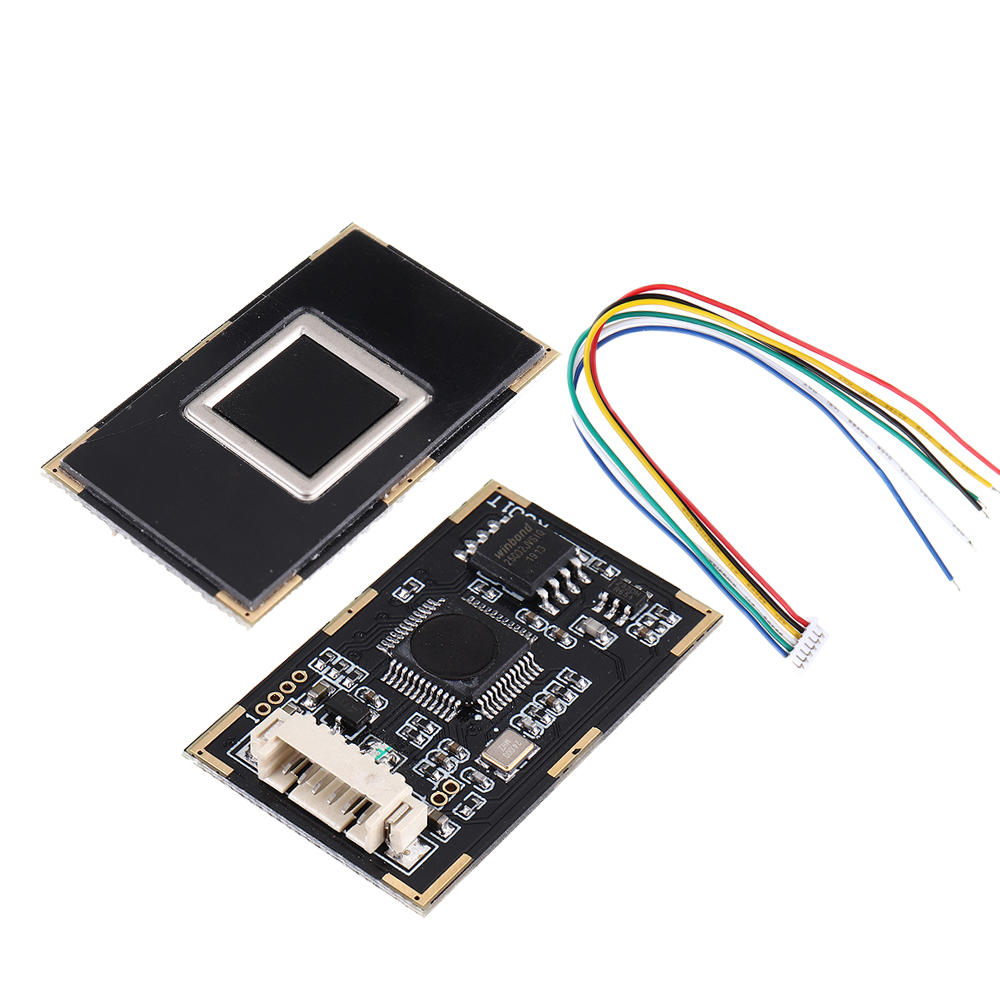

Fingerprint Module R301T

Overview

Unlock the future of secure access with the Fingerprint Module R301T from MOKWN. This reliable and efficient fingerprint sensor module is your all-in-one solution for adding biometric authentication to your projects. Whether you're building a smart lock, an attendance system, or a high-tech security project, the R301T offers a seamless and secure way to verify identity. With the ability to store up to 3000 fingerprint images, it's powerful enough for both hobbyist and professional applications. Easily integrate it with popular microcontrollers like Arduino, Tiva C, STM32, and Raspberry Pi to bring your security concepts to life.

Key Features

• High Capacity Storage: Stores up to 3000 fingerprint images, perfect for multi-user applications.
• Reliable Verification: Provides accurate and fast fingerprint matching for secure access control.
• Wide Compatibility: Works seamlessly with Arduino, Tiva C, STM32, Raspberry Pi, and other microcontrollers.
• UART Communication: Simple serial interface for easy integration with your existing projects.
• Compact Design: Small footprint makes it ideal for embedded systems and space-constrained enclosures.
• Low Power Consumption: Suitable for battery-powered and energy-efficient designs.

Technical Specifications

• Sensor Type: Optical fingerprint sensor
• Storage Capacity: 3000 fingerprints
• Interface: UART (TTL logical level)
• Operating Voltage: 3.6V – 6.0V DC
• Operating Current: < 60mA
• Fingerprint Image Time: < 1.0 second
• Verification Speed: < 0.5 seconds
• False Accept Rate (FAR): < 0.001%
• False Reject Rate (FRR): < 0.1%
• Baud Rate: 9600 (default), adjustable
• Module Size: Approximately 55mm x 21mm x 25mm

Applications & Use Cases

• Access Control Systems: Secure doors, cabinets, and restricted areas.
• Attendance Tracking: Employee and student attendance systems.
• Smart Locks: Biometric locks for homes, offices, and laboratories.
• Security Systems: Alarm systems and identity verification kiosks.
• Robotics: Unlock robot features or restrict access to authorized users.
• IoT Projects: Add biometric authentication to your connected devices.

What's Included

• 1x Fingerprint Module R301T
• 1x 6-pin 2.54mm connector cable (for easy wiring)

Compatibility

• Arduino: Works with Arduino Uno, Mega, Nano, and other boards using UART.
• Tiva C: Compatible with Tiva C Series LaunchPad boards.
• STM32: Works with STM32F103C8T6 (Blue Pill) and other STM32 boards.
• Raspberry Pi: Can be used with Raspberry Pi via UART or USB-TTL converter.
• Other Microcontrollers: Any microcontroller with UART capability.

MOKWN Recommendation

At MOKWN, we understand the importance of security and reliability. The Fingerprint Module R301T is a top choice for makers and professionals in Egypt looking to add biometric authentication to their projects. It's easy to use, highly compatible, and offers excellent performance for its price. Whether you're a student working on a graduation project or an engineer developing a commercial product, this module is a solid investment. Order now and elevate your project's security to the next level!
