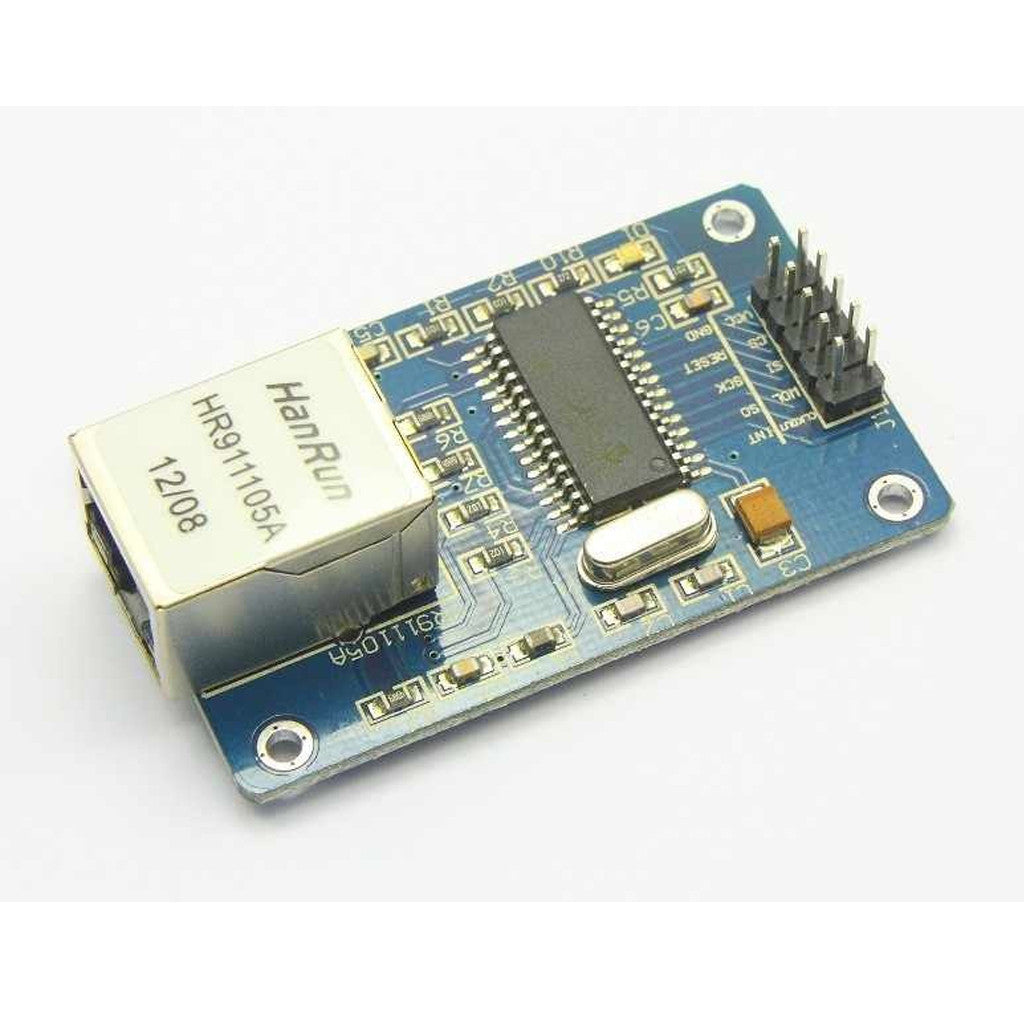

Ethernet Module (ENC28J60) For Arduino / Microcontroller

Overview

Transform your Arduino or microcontroller project into a connected IoT device with the ENC28J60 Ethernet Module. This compact and cost-effective module provides a reliable wired network interface, enabling your projects to communicate over a LAN or the internet. Whether you're building a web server, a networked sensor, or a data logger, the ENC28J60 is the perfect solution for projects that demand stable, high-speed connectivity without the complexity of Wi-Fi.

Key Features

• Reliable Wired Connectivity: Provides a stable 10 Mbps Ethernet connection, immune to Wi-Fi interference.
• SPI Interface: Easy to connect to any microcontroller with SPI support, including Arduino, Raspberry Pi Pico, and ESP32.
• Low Cost: An affordable way to add network capabilities to your projects.
• Compact Design: Small form factor fits easily into your project enclosures.
• Industry Standard: Compatible with the widely used ENC28J60 chip, with extensive libraries and documentation available.

Technical Specifications

• Controller: Microchip ENC28J60
• Interface: SPI (Serial Peripheral Interface)
• Ethernet Standard: IEEE 802.3
• Data Rate: 10 Mbps
• Connector: RJ45 with integrated magnetics
• Operating Voltage: 3.3V (5V tolerant I/O)
• Dimensions: 58mm x 33mm (approx.)
• LED Indicators: Link/Activity and Power

Applications & Use Cases

• IoT Devices: Connect sensors and actuators to the internet for remote monitoring and control.
• Web Servers: Host simple web pages to display sensor data or control relays.
• Networked Data Logging: Send data to a central server or cloud platform.
• Home Automation: Control lights, appliances, and security systems over your local network.
• Educational Projects: Learn about networking, TCP/IP, and embedded systems.

What's Included

• 1x ENC28J60 Ethernet Module
• 1x RJ45 Ethernet Cable (optional, please check availability)

Compatibility

• Arduino: Uno, Mega, Nano, and any board with SPI pins.
• Raspberry Pi Pico: Use with SPI library.
• ESP32: Use with SPI library (note: ESP32 has limited SPI pins).
• Other Microcontrollers: Any with SPI interface and 3.3V logic.
• Libraries: Compatible with UIPEthernet, EtherCard, and standard Arduino Ethernet libraries with slight modifications.

MOKWN Recommendation

For Egyptian makers and engineers seeking a cost-effective way to add Ethernet connectivity to their projects, the ENC28J60 module is an excellent choice. It's reliable, easy to use, and backed by MOKWN's quality assurance. Whether you're a student working on a final year project or a professional prototyping an IoT solution, this module will get you connected quickly. Pair it with our range of Arduino boards and sensors for a complete solution.
