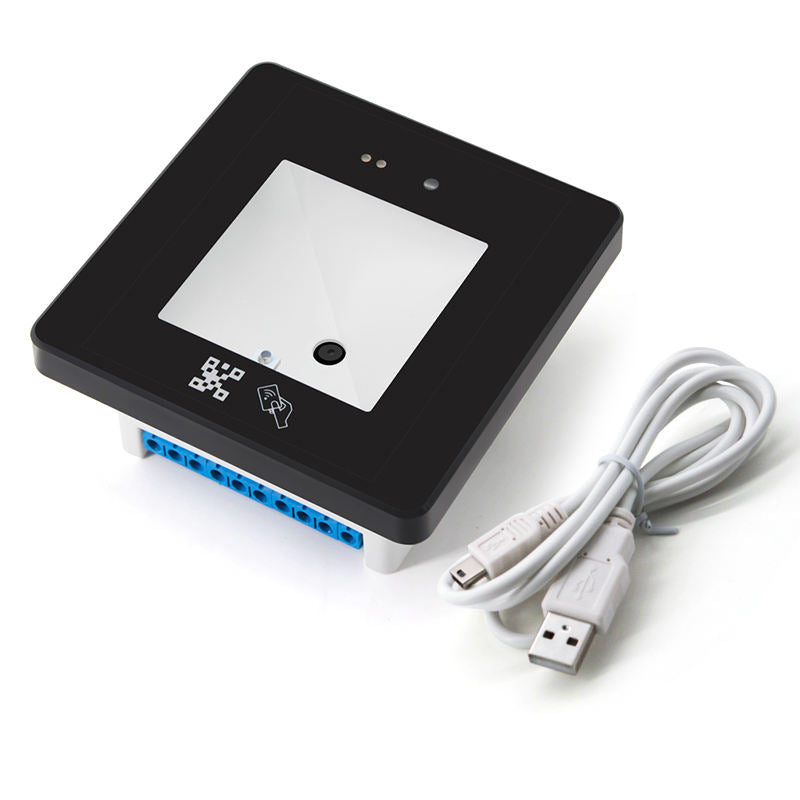

RFID and QR Code and NFC Reader (Wiegand, USB, RS232, RS485, TTL)

Overview

Elevate your access control and identification systems with the MOKWN RFID & QR Code Reader. This versatile 2-in-1 device seamlessly combines a high-speed QR code scanner with a 13.56MHz RFID reader, offering a comprehensive solution for modern security and automation needs. With support for Wiegand, USB, RS232, RS485, and TTL interfaces, it integrates effortlessly into a wide range of projects, from DIY maker builds to enterprise-grade installations.

Key Features

• 2-in-1 Functionality: Combines QR code scanning and 13.56MHz RFID reading in a single device, saving space and cost.
• Universal Interface Support: Compatible with Wiegand, USB, RS232, RS485, and TTL, ensuring seamless integration with most controllers and systems.
• Fast and Accurate Scanning: Reads QR codes and one/two-dimensional barcodes quickly and reliably.
• Versatile RFID Compatibility: Works with common 13.56MHz tags and cards (e.g., Mifare, NTAG) for access control and identification.
• Plug-and-Play: Simple setup with USB (HID or virtual COM) for PC connectivity, or use Wiegand/RS485 for direct connection to access controllers.
• Compact and Durable: Designed for easy mounting in kiosks, gates, or embedded systems.

Technical Specifications

• Function: QR code reader + RFID 13.56MHz
• Barcode Types: QR, one/two-dimensional
• RFID Frequency: 13.56MHz
• Interfaces: Wiegand, USB, RS232, RS485, TTL
• Power Supply: Typically 5V DC (USB powered or external)
• Operating Distance: QR: up to a few cm; RFID: up to 5cm (depending on tag)

Applications & Use Cases

• Access Control: Secure entry systems for offices, labs, and residential buildings.
• Time & Attendance: Employee check-in using RFID badges or QR codes.
• Self-Service Kiosks: Identify users via QR code or RFID for ticketing, payments, or information delivery.
• Inventory Management: Track assets or products with QR codes and RFID tags.
• Smart Lockers: User authentication for parcel lockers or storage systems.
• IoT Projects: Integrate with microcontrollers (Arduino, ESP32, Raspberry Pi) for custom automation.

What's Included

• 1x RFID & QR Code Reader
• 1x USB Cable (for USB interface)
• 1x Mounting Bracket (if applicable)
• User Manual (English)

Compatibility

• Microcontrollers: Arduino, ESP32, Raspberry Pi, STM32, and other TTL/RS232 devices.
• Access Control Systems: Wiegand-compatible controllers (26-bit, 34-bit, etc.).
• PC Systems: Windows, Linux, macOS (via USB HID or virtual COM port).
• Software: Serial terminal, custom scripts, or SDKs (if provided).

MOKWN Recommendation

This RFID & QR Code Reader is an excellent choice for makers, students, and system integrators in Egypt looking for a cost-effective, multi-interface solution. Whether you're building a smart door lock, a time-attendance system, or an IoT project, this device offers the flexibility and reliability you need. We recommend pairing it with our range of 13.56MHz RFID tags and cards for immediate testing. For any integration questions, our technical support team is ready to assist you.
