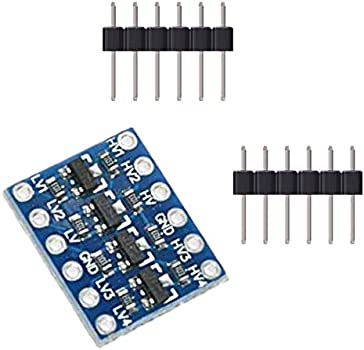

4 Channels IIC I2C Logic Level Converter Bi-Directional Module 3.3V to 5V Shifter

Overview

When working with a mix of 3.3V and 5V devices, communication can be a challenge. This 4-channel I2C logic level converter bridges the gap safely and reliably. It allows bi-directional signal translation between 3.3V and 5V logic levels, making it an essential tool for any electronics workbench. Whether you're interfacing a 5V Arduino with a 3.3V sensor, or connecting multiple I2C devices with different voltage requirements, this module ensures smooth, glitch-free data transfer.

Key Features

• 4 Bi-Directional Channels: Handles multiple signals simultaneously, perfect for I2C (SDA/SCL) and other digital interfaces.
• Wide Voltage Support: Converts between 3.3V and 5V logic levels, with support for other voltage pairs (e.g., 1.8V to 5V) by adjusting the low-side reference.
• High-Speed Operation: Supports I2C data rates up to 400kHz (Fast Mode) and is suitable for SPI and UART.
• Plug-and-Play: No external components needed; just connect your low and high voltage references and the signal lines.
• Compact Design: Small form factor fits easily into breadboards and projects.

Technical Specifications

• Channels: 4 bi-directional
• Low-Voltage Side: 1.8V to 5V (typically 3.3V)
• High-Voltage Side: 3.3V to 5V (typically 5V)
• Interface: I2C, SPI, UART, and other digital signals
• Data Rate: Up to 400kHz (I2C Fast Mode)
• Connector: 12-pin header (0.1" pitch)
• Dimensions: 20mm x 15mm (approx.)
• Weight: 2g (approx.)

Applications & Use Cases

• Arduino & Raspberry Pi Projects: Interface 5V microcontrollers with 3.3V sensors, displays, or modules.
• I2C Bus Level Shifting: Connect multiple I2C devices running at different voltages on the same bus.
• Sensor Integration: Use with 3.3V sensors like MPU6050, BMP280, or HC-SR04 with 5V logic.
• Robotics: Level shift control signals between motor drivers and microcontrollers.
• Prototyping: Essential for any bench setup where voltage compatibility is a concern.

What's Included

• 1x 4-Channel I2C Logic Level Converter Module
• (Pins not included; soldering required)

Compatibility

• Works with Arduino (Uno, Mega, Nano, etc.), Raspberry Pi, ESP32, ESP8266, STM32, and other microcontrollers.
• Compatible with 3.3V and 5V logic systems.
• Ideal for I2C, SPI, and UART communication.
