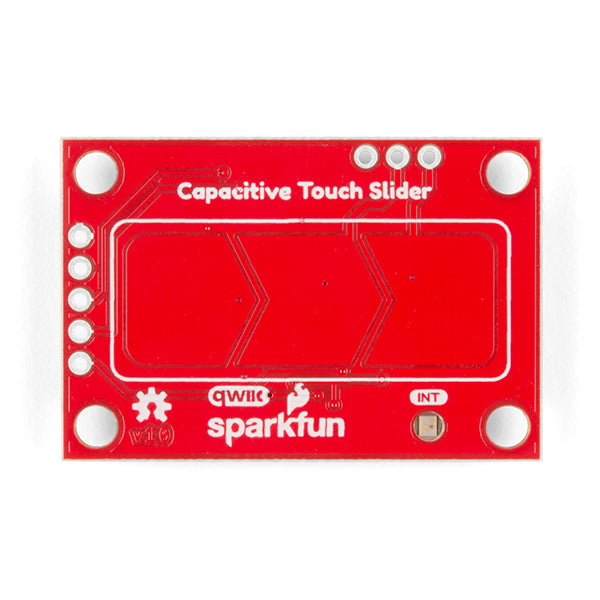

Capacitive Touch Slider - CAP1203

Overview

The Capacitive Touch Slider - CAP1203 is a versatile and reliable sensor module designed to bring intuitive touch interfaces to your electronics projects. Unlike mechanical buttons, this capacitive sensor detects touch through non-conductive materials, enabling sleek, hidden controls. With three independent channels that can be configured as separate buttons or as a slider, the CAP1203 offers flexibility for a wide range of applications. Whether you are building a custom control panel, a smart home device, or an interactive art installation, this sensor provides a responsive and durable solution that works even under surfaces like wood, acrylic, or glass up to 6mm thick.

Key Features

• 3-Channel Capacitive Sensing: Each channel can be used independently or combined to create a slider interface.
• Works Through Non-Conductive Materials: Detect touches through wood, acrylic, glass, and other materials up to 6mm thick, perfect for hidden controls.
• I2C Interface: Simple two-wire communication with microcontrollers, saving GPIO pins.
• Low Power Consumption: Ideal for battery-powered projects with sleep modes.
• Adjustable Sensitivity: Configure touch thresholds via I2C to suit different materials and environments.
• LED Indicator: Onboard LED for visual feedback during touch detection.
• Compact Design: Small form factor, easy to integrate into any project.

Technical Specifications

• Controller: CAP1203
• Channels: 3 (configurable as independent buttons or slider)
• Interface: I2C (address 0x28)
• Operating Voltage: 2.7V - 3.6V (typically 3.3V)
• Touch Sensing Method: Capacitive
• Sensing Range: Up to 6mm through non-conductive materials
• Dimensions: 25mm x 20mm (approx.)
• Weight: 5g (approx.)

Applications & Use Cases

• Hidden Buttons: Place under wooden panels or acrylic surfaces for a clean, minimalist look.
• Interactive Art: Create touch-sensitive installations that respond to human touch.
• Smart Home Controls: Build custom control panels for lights, fans, or other appliances.
• Wearables: Integrate into clothing or accessories for touch-based input.
• Robotics: Use as a touch sensor for human-robot interaction.
• Educational Projects: Teach capacitive sensing and I2C communication in classrooms.

What's Included

• 1x Capacitive Touch Slider - CAP1203 module
• 1x Pin header (pre-soldered or loose, depending on version)

Compatibility

• Works with any microcontroller that supports I2C, including Arduino, Raspberry Pi, ESP32, STM32, and more.
• Can be used with popular development platforms and libraries (e.g., Arduino Library for CAP1203).
• Pins: VCC, GND, SDA, SCL, and optional interrupt pin.

MOKWN Recommendation

The Capacitive Touch Slider - CAP1203 is an excellent choice for makers and professionals who want to add a modern, touch-based interface to their projects. Its ability to sense through materials makes it perfect for creating sleek, durable, and easy-to-clean surfaces. Whether you are a hobbyist or an engineer, this sensor offers great value and performance. We recommend pairing it with an Arduino or ESP32 for quick prototyping. For any questions about integration, our team at MOKWN is here to help.
