Arduino UNO R3 Starter Kit – Arduino Learning Kit

Overview

The Arduino UNO R3 Starter Kit is the ultimate, all-inclusive learning and prototyping package designed for beginners, students, makers, and engineering educators. Featuring an authentic-architecture Arduino UNO R3 development board, an 830-point solderless breadboard, and over 50 varieties of high-grade sensors, actuators, displays, and passive components, this kit provides a complete hands-on pathway from fundamental electronic circuits to sophisticated robotics and automation. Neatly organized in a durable, compartmentalized carrying case, it is the premier kit adopted by Egyptian universities, STEM schools, and robotics academies for coursework and graduation prototyping.

Key Features

• Comprehensive Component Selection: Over 50 different components including stepper motors, servo motors, LCD displays, RFID systems, and precision environmental sensors.
• Core Arduino UNO R3 Board: Powered by the ATmega328P microcontroller with 14 digital I/O pins, 6 analog inputs, and a rugged USB interface ready for immediate programming.
• Solderless Prototyping Platform: Includes an 830-tie point breadboard and 65 flexible multi-colored jumper wires for rapid, mess-free circuit experimentation.
• Interactive Displays & Feedback: Features a 16x2 I2C LCD screen, 8x8 LED matrix, 4-digit 7-segment display, active and passive buzzers, and multi-color LEDs.
• Advanced Sensing & Security: Includes RFID read/write module with card and keyfob, ultrasonic/sound detection, flame sensor, temperature/humidity sensor (DHT11), and tilt switch.
• Organized Storage Box: Packaged inside a clear, heavy-duty latching plastic case with custom dividers to prevent bent pins and lost parts.

Technical Specifications

• Main Board: Arduino UNO R3 compatible development board (ATmega328P @ 16 MHz)
• Board Operating Voltage: 5V DC (USB or 7V–12V DC external via DC barrel jack)
• Breadboard: 830 tie-point solderless breadboard with dual power distribution rails
• Motors Included: 1 × 5V 28BYJ-48 Stepper Motor with ULN2003 Driver Board; 1 × SG90 9g Micro Servo Motor
• Displays Included: 1 × 1602 LCD with I2C Backpack (2-wire interface); 1 × 8x8 LED Matrix; 1 × 4-Digit 7-Segment; 1 × 1-Digit 7-Segment
• Sensors Included: DHT11 Temperature & Humidity, Sound Sensor, Flame Sensor, Water Level Sensor, 3 × LDR Light Sensors, Ball Tilt Switch
• Wireless & Input: RC522 RFID Module (13.56 MHz) with Card & Key Fob, IR Receiver with Remote Control, PS2 Dual-Axis Analog Joystick, 4x4 Matrix Keypad
• Passive Components: 30 × Metal Film Resistors (220Ω, 1kΩ, 10kΩ), 15 × 5mm LEDs (Red, Green, Yellow), 1 × RGB LED Module, 74HC595 Shift Register, 10k Potentiometer
• Power Accessories: 9V Battery Snap Connector with DC Barrel Plug, USB Type-A to Type-B Cable

Applications & Use Cases

• STEM & Academic Education: The definitive foundation kit for engineering colleges, introductory coding bootcamps, and high-school electronics clubs.
• Smart Home Automation: Build automated lighting, RFID security door locks, climate monitoring stations, and infrared remote-controlled appliances.
• Robotics & Motion Control: Learn PWM motor driving, precise servo positioning, and stepped angular displacement.
• Prototyping & Graduation Projects: Rapid proof-of-concept testing for mechatronics, IoT sub-assemblies, and industrial telemetry.

What's Included

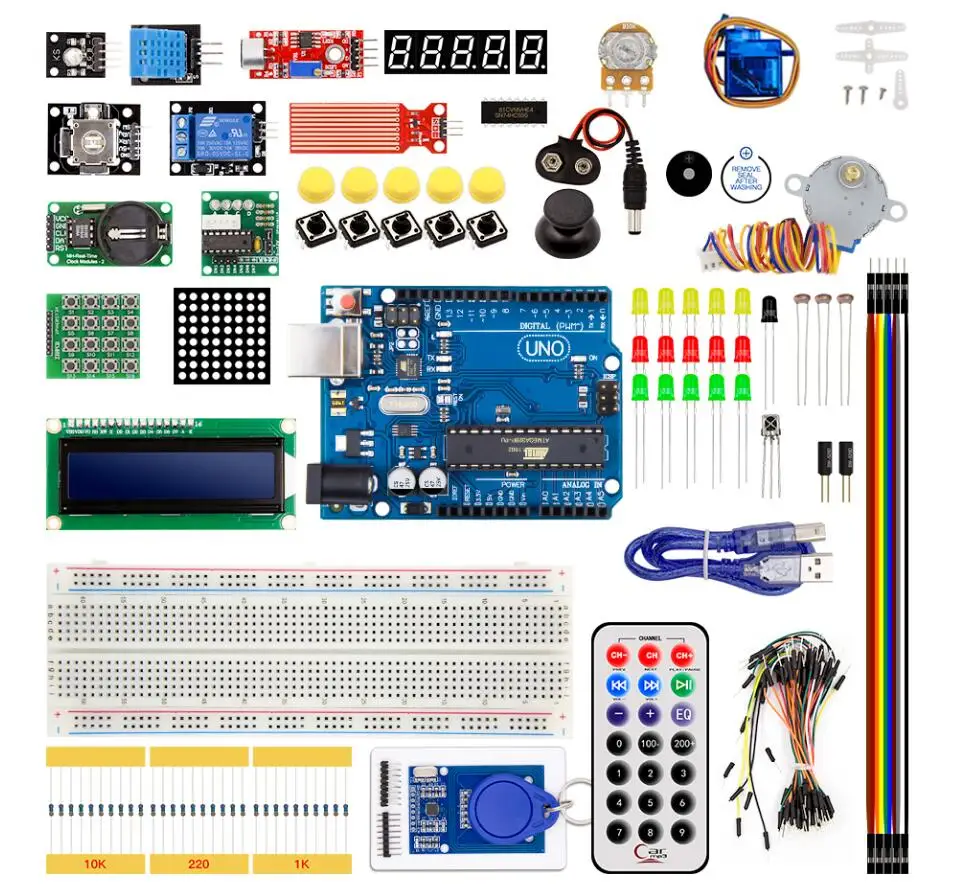

• 1 × UNO R3 Development Board + High-Speed USB Cable
• 1 × 830-Point Solderless Breadboard
• 1 × 65-Piece Breadboard Jumper Wire Pack + 10-Pin Dupont Female-to-Male Cable
• 1 × 1602 LCD Display with Pre-Soldered I2C Module
• 1 × SG90 9g Micro Servo Motor + Horn Set
• 1 × 5V Stepper Motor + ULN2003 Stepper Driver Board
• 1 × RC522 RFID Module + RFID Card + RFID Key Ring
• 1 × PS2 Dual-Axis Analog Joystick Module
• 1 × DHT11 Temperature & Humidity Sensor
• 1 × Water Level Detection Sensor
• 1 × Sound Detection Sensor Module
• 1 × Flame Sensor + 1 × Ball Tilt Switch + 3 × Photoresistors (LDR)
• 1 × 1-Channel 5V Relay Module
• 1 × DS1302 Real-Time Clock (RTC) Module
• 1 × 16-Key Membrane Matrix Keypad
• 1 × IR Wireless Remote Control + IR Receiver Diode
• 1 × 8x8 LED Matrix Display + 1 × 4-Digit 7-Segment + 1 × 1-Digit 7-Segment
• 1 × 74HC595N 8-Bit Shift Register IC
• 15 × 5mm LEDs (5 Red, 5 Green, 5 Yellow) + 1 × RGB Full-Color LED Module
• 30 × Precision Resistors (10 × 220Ω, 10 × 1kΩ, 10 × 10kΩ) + 1 × Rotary Potentiometer
• 1 × Active Buzzer + 1 × Passive Buzzer + 4 × Tactile Push Buttons with Caps
• 1 × 9V Battery Clip with DC Power Jack
• 1 × Heavy-Duty Compartmentalized Plastic Organizer Case

Compatibility

• Software Ecosystem: Fully compatible with Arduino IDE (all versions), PlatformIO, Scratch for Arduino (mBlock), and Tinkercad circuits simulation.
• Operating Systems: Works seamlessly on Windows 11/10/8/7, macOS, Linux, and ChromeOS.
• Code & Libraries: Compatible with standard Arduino library repository (LiquidCrystal_I2C, Servo, Stepper, MFRC522, DHT, etc.).

MOKWN Recommendation

If you're asking "Where do I start with electronics in Egypt?", this Arduino UNO R3 Starter Kit is MOKWN's answer. It contains every single component and sensor typically required in university labs, maker workshops, and beginner tutorials — meaning you will never find yourself halfway through a tutorial only to discover you're missing a resistor, an I2C screen, or an RFID tag. The durable plastic case keeps your workspace organized, and every component is thoroughly tested before shipping. Available now with fast delivery across Egypt and payment on delivery!
