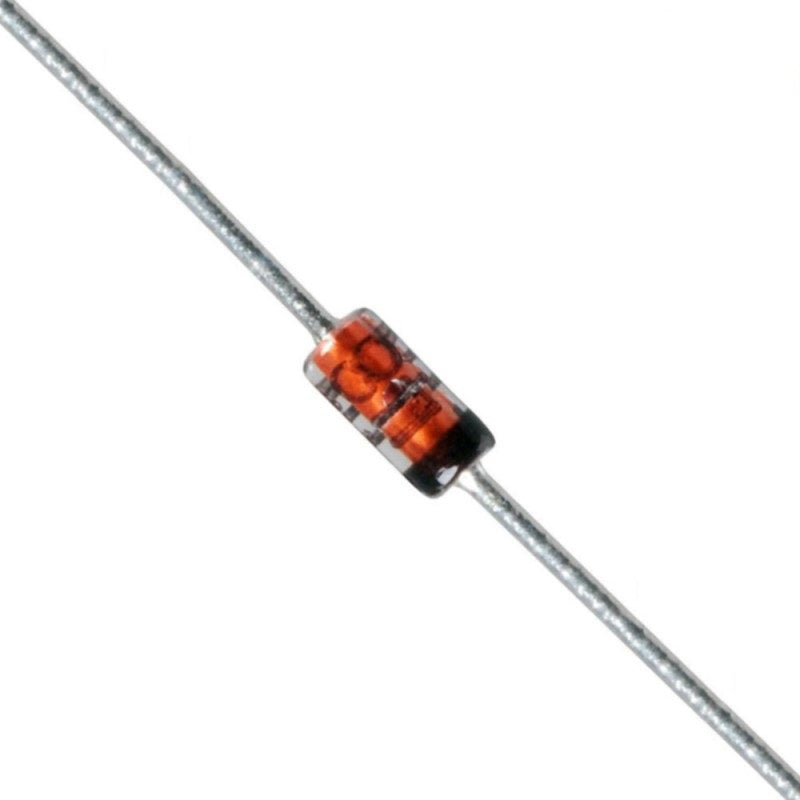

Zener Diode BZX79-C9V1 (9.1 Volt)

Overview

The BZX79-C9V1 Zener Diode is a reliable and precise voltage regulation component designed to maintain a stable 9.1V output. This through-hole diode is essential for protecting sensitive electronics from voltage fluctuations and ensuring consistent operation in a wide range of applications. Whether you are developing power supplies, voltage reference circuits, or protection systems, the BZX79-C9V1 delivers accurate and dependable performance.

Key Features

• Precise Zener Voltage: 9.1V with tight tolerance for accurate regulation.
• High Reliability: Robust construction ensures long-term stability.
• Low Noise: Provides clean voltage regulation for sensitive circuits.
• Through-Hole Package: Easy to solder and integrate into PCBs.
• Wide Operating Range: Suitable for various low-power applications.

Technical Specifications

• Zener Voltage (Vz): 9.1V
• Package: DO-35 (through-hole)
• Power Dissipation: 500mW (typical)
• Tolerance: ±5% (standard)
• Operating Temperature Range: -65°C to +175°C
• Forward Voltage: 0.9V (max) at 200mA (typical)

Applications & Use Cases

• Voltage Regulation: Provide a stable 9.1V reference for analog circuits.
• Overvoltage Protection: Protect components from voltage spikes.
• Voltage Reference: Use in precision measurement and comparator circuits.
• Power Supply Design: Ideal for low-power supplies and battery-operated devices.
• Signal Clipping: Used in waveform shaping and protection circuits.

What's Included

• 1x BZX79-C9V1 Zener Diode (9.1V)

Compatibility

• Compatible with standard breadboards and PCBs.
• Works with common microcontrollers like Arduino, ESP32, and Raspberry Pi when used in appropriate voltage regulation circuits.
• Can replace other 9.1V Zener diodes with similar specifications.

MOKWN Recommendation

For Egyptian makers and engineers, the BZX79-C9V1 is a cost-effective and reliable choice for projects requiring precise voltage regulation. We recommend pairing it with a current-limiting resistor for optimal performance. Whether you are a student, hobbyist, or professional, this diode is a fundamental component for your electronics toolkit.
