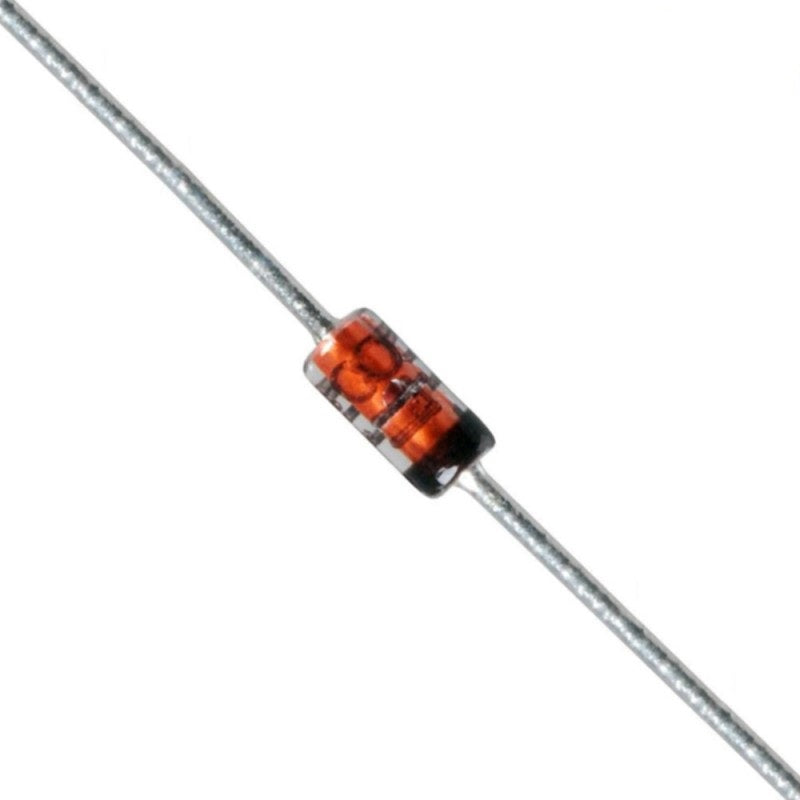

Zener Diode BZX79-C12 (12 Volt)

Overview

The BZX79-C12 is a 12V Zener diode from the BZX79 series, designed for voltage regulation and stabilization. It provides a precise 12V reference voltage, making it an essential component for power supply circuits, voltage protection, and various electronic projects. Its small DO-35 glass package ensures easy handling and mounting, suitable for both through-hole and surface-mount applications.

Key Features

• 12V Zener Voltage: Provides stable 12V reference with a tolerance of ±5%.
• Power Dissipation: 500mW maximum, suitable for low-power applications.
• Low Leakage Current: Ensures minimal power loss and high efficiency.
• Standard Package: DO-35 glass package, easy to integrate into circuits.
• Wide Operating Range: Operates effectively in a range of currents, making it versatile.

Technical Specifications

| Parameter | Value | |------------|-------| | Zener Voltage (Vz) | 12V (±5%) | | Power Dissipation | 500mW | | Maximum Reverse Current | 5µA @ 9.1V | | Zener Impedance (Zzt) | 25Ω @ 5mA | | Operating Temperature | -65°C to +175°C | | Package | DO-35 (Glass) |

Applications & Use Cases

• Voltage Regulation: Used as a shunt regulator to provide a constant 12V output.
• Overvoltage Protection: Protects sensitive circuits from voltage spikes.
• Reference Voltage: Provides a stable reference for comparators and ADCs.
• Power Supply Circuits: Used in linear power supplies for voltage stabilization.
• Signal Clipping: Clips AC signals to a specific voltage level.

What's Included

• 1 x BZX79-C12 Zener Diode (12V)

Compatibility

• Works with standard breadboards and PCBs.
• Compatible with Arduino, Raspberry Pi, and other microcontroller projects.
• Can be used in conjunction with resistors and other diodes for custom voltage regulation.

MOKWN Recommendation

The BZX79-C12 is a reliable and cost-effective solution for your voltage regulation needs. Whether you're a hobbyist or a professional engineer, this diode ensures stable performance. We recommend stocking up on these essential components for your electronics lab.
