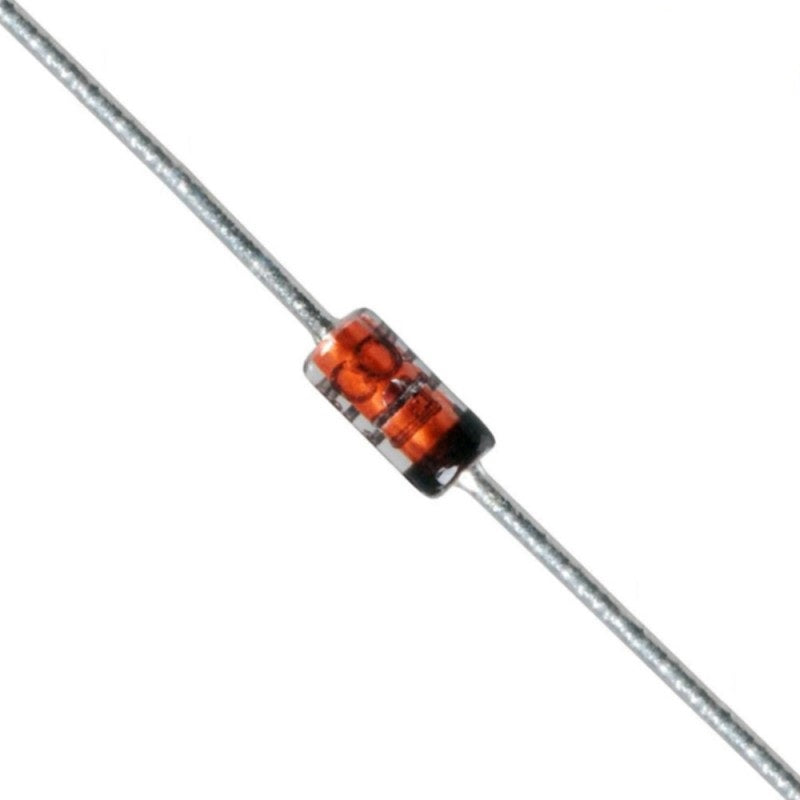

BZX79-C5V6 (5.6V) Zener Diode

Overview

The BZX79-C5V6 is a 5.6V Zener diode from the reliable BZX79 series, designed for precise voltage regulation, reference, and overvoltage protection. Its compact DO-35 axial package is ideal for through-hole PCB mounting, making it a staple for hobbyists, students, and professionals working on power supplies, Arduino projects, and embedded systems. With a power dissipation of 400mW and a ±5% tolerance, this diode ensures stable performance for your low-power circuits.

Key Features

• Stable 5.6V Zener Voltage: Provides a consistent reference voltage for regulation and protection.
• 400mW Power Dissipation: Suitable for low-power applications and signal-level circuits.
• ±5% Voltage Tolerance: Guarantees dependable voltage accuracy.
• DO-35 Axial Package: Easy to mount on breadboards, PCBs, and perfboards.
• Through-Hole Design: Ideal for hand soldering and prototyping.

Technical Specifications

| Parameter | Value | |-----------|-------| | Zener Voltage (Vz) | 5.6V | | Power Dissipation | 400mW (0.4W) | | Package Type | DO-35 (Axial) | | Tolerance | ±5% | | Mounting Type | Through-Hole |

Applications & Use Cases

• Voltage Regulation: Maintain a stable 5.6V output in low-power supplies.
• Voltage Reference: Provide a precise reference for analog circuits and ADCs.
• Overvoltage Protection: Clamp excessive voltages to protect sensitive components.
• Arduino and Raspberry Pi Projects: Use in level shifting, protection, and reference circuits.
• Embedded Systems: Ensure stable logic levels and protect inputs.
• Educational Labs: Perfect for teaching Zener diode characteristics.

What's Included

• 1x BZX79-C5V6 Zener Diode (5.6V, 400mW)

Compatibility

• Works seamlessly with standard breadboards and PCBs.
• Compatible with common microcontrollers like Arduino, ESP32, and Raspberry Pi.
• Can be used in series with resistors for current limiting.

MOKWN Recommendation

For makers in Egypt building power supplies, sensor interfaces, or protection circuits, the BZX79-C5V6 is a reliable and cost-effective choice. Keep a few in your kit for quick prototyping and voltage reference tasks. For higher power applications, consider a larger Zener diode from our extensive collection.
