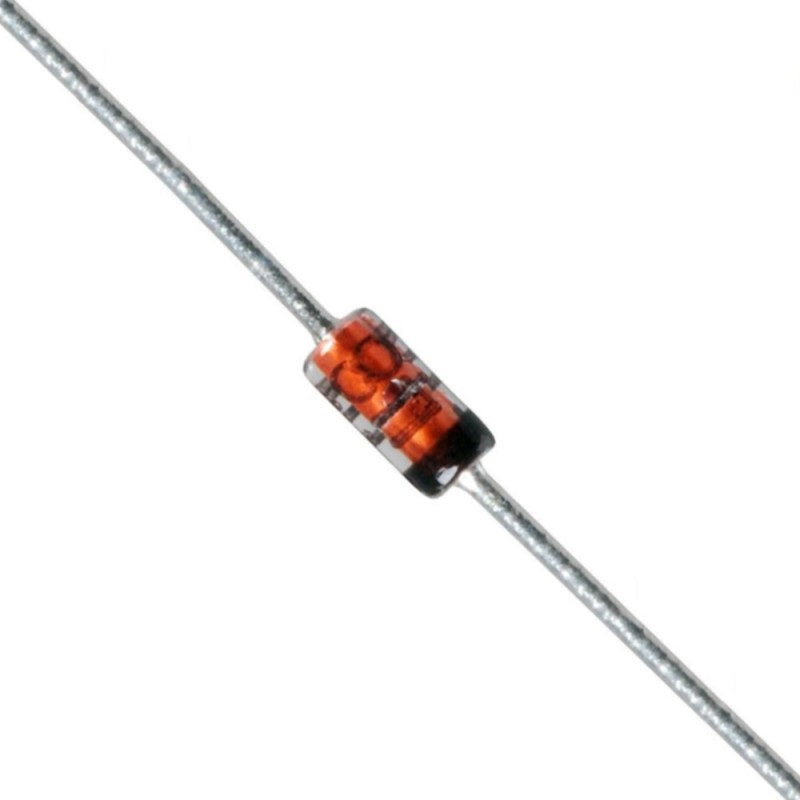

Zener Diode BZX79-C3V3 (3.3 Volt)

Overview

The BZX79-C3V3 is a 3.3V Zener diode in a DO-35 glass package, designed for voltage regulation and protection in low-voltage electronic circuits. It provides a stable reference voltage, making it an essential component for power supplies, voltage dividers, and clamping circuits. Whether you're a hobbyist or a professional engineer, this diode ensures reliable performance in your projects.

Key Features

• Stable 3.3V Regulation: Delivers a precise 3.3V output for consistent voltage references.
• Wide Power Dissipation: Handles up to 500mW of power, suitable for various applications.
• High Precision: Tight tolerance (±5%) ensures accurate voltage regulation.
• Compact DO-35 Package: Easy to integrate into PCBs and prototyping boards.
• Fast Response: Quick zener breakdown for effective transient protection.
• RoHS Compliant: Environmentally friendly and lead-free.

Technical Specifications

• Zener Voltage (Vz): 3.3V (typical)
• Tolerance: ±5%
• Power Dissipation (Pd): 500mW
• Package Type: DO-35 (Glass Axial)
• Operating Temperature Range: -65°C to +200°C
• Storage Temperature Range: -65°C to +200°C
• Reverse Leakage Current (Ir): < 5µA at 1V
• Zener Impedance (Zzt): < 90Ω at 5mA
• Maximum Reverse Voltage (Vr): 3.3V

Applications & Use Cases

• Voltage Regulation: Ideal for creating stable 3.3V power rails in embedded systems.
• Clamping Circuits: Protects sensitive components from overvoltage spikes.
• Voltage Reference: Provides a precise reference for analog circuits and ADCs.
• Power Supply Protection: Safeguards circuits from transient voltage surges.
• Signal Clipping: Used in waveform shaping and signal conditioning.
• Battery Charging Circuits: Helps maintain safe voltage levels in charging modules.

What's Included

• 1x BZX79-C3V3 Zener Diode (3.3V)

Compatibility

• Compatible with standard breadboards and PCBs.
• Works with microcontrollers like Arduino, ESP32, and Raspberry Pi Pico.
• Can be used in power supply modules, voltage regulators, and protection circuits.

MOKWN Recommendation

For makers and engineers in Egypt, the BZX79-C3V3 is a reliable and affordable component for your voltage regulation needs. Whether you're building a power supply or adding protection to your projects, this diode is a must-have. Order now and get fast delivery across Egypt!
