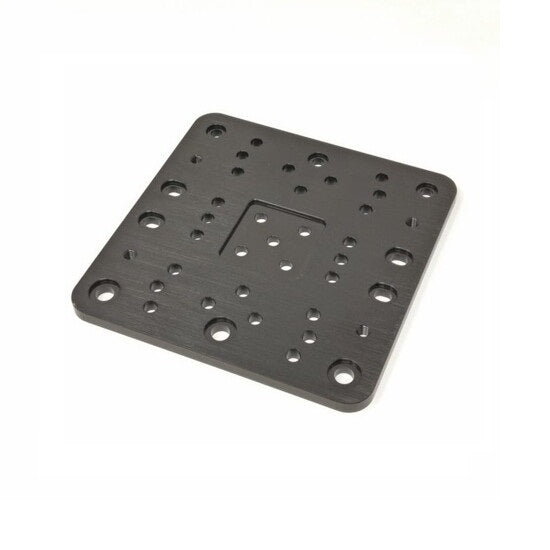

XLarge C-Beam Gantry Plate (Aluminum -125x 125mm)

Overview

Elevate your CNC and motion control projects with the MOKWN XLarge C-Beam Gantry Plate. Machined from high-grade 6061-T5 aluminum, this 125x125mm plate is engineered to provide a rock-solid foundation for your C-Beam linear rail systems. Its generous size and precision construction allow for up to six wheels, ensuring smooth, accurate, and stable movement—essential for demanding applications like 3D printing, laser engraving, and CNC milling.

Key Features

• Superior Stability: The large 125x125mm footprint distributes load evenly, minimizing vibration and flex for reliable, repeatable motion.
• Precision Engineering: CNC-machined from 6061-T5 aluminum for tight tolerances and a durable, lightweight build.
• High Load Capacity: Accommodates up to six wheels, providing exceptional support for heavier gantry setups.
• Versatile Compatibility: Designed to work seamlessly with C-Beam linear rails and OpenBuilds ecosystem components.
• Easy Integration: Pre-drilled holes and a standardized pattern simplify assembly and alignment.

Technical Specifications

• Material: 6061-T5 Aluminum
• Dimensions: 125 x 125 x 6mm
• Weight: Lightweight for reduced inertia
• Surface Finish: Anodized for corrosion resistance

Applications & Use Cases

• CNC Routers: Build a rigid gantry for precise milling and cutting.
• 3D Printers: Upgrade your printer's Z-axis or gantry for improved print quality.
• Laser Engravers: Ensure stable and accurate laser positioning.
• Robotics: Create robust linear motion systems for pick-and-place or automated machinery.
• DIY Projects: Ideal for hobbyists and makers building custom motion systems.

What's Included

• 1x XLarge C-Beam Gantry Plate (125x125mm)

Compatibility

• Compatible with C-Beam linear rails (OpenBuilds) and all standard OpenBuilds wheels and plates.
• Works with MOKWN's range of CNC kits, 3D printer parts, and motion control accessories.

MOKWN Recommendation

For a complete and reliable motion system, pair this gantry plate with our C-Beam linear rails, V-slot wheels, and high-torque NEMA 23 stepper motors. Whether you're building a new machine or upgrading an existing one, this plate delivers the stability you need for professional-grade results.
