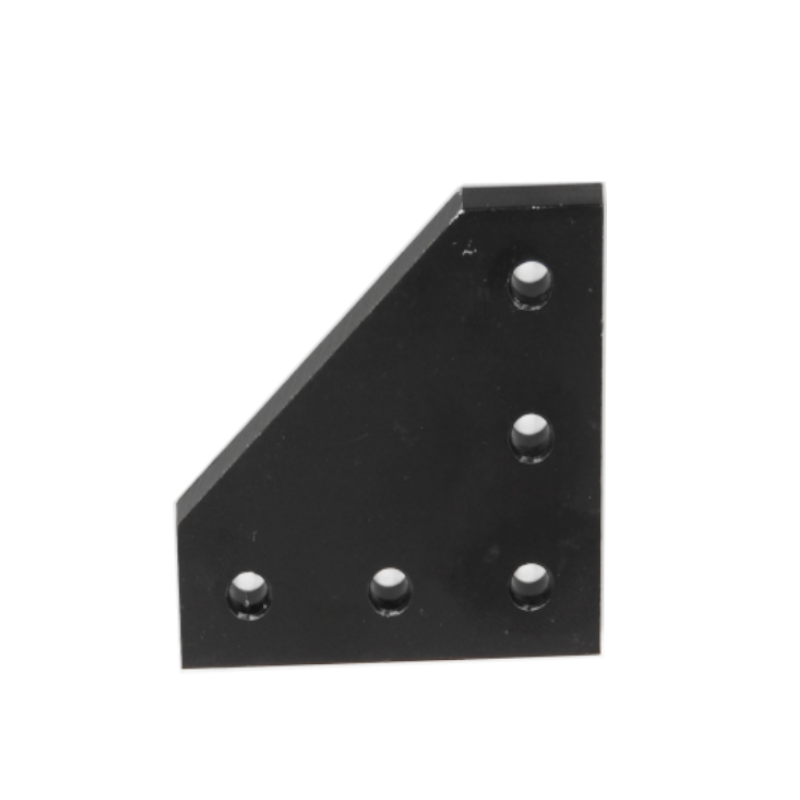

90 Degree Outside Joining Plate for 2020 Aluminum Extrusion

Overview

Build rock-solid frames for your 3D printer, CNC router, or custom automation rig with the 90 Degree Outside Joining Plate for 2020 Aluminum Extrusion from MOKWN. These precision-machined plates provide a clean, professional way to create rigid 90° connections between 2020 aluminum extrusions, ensuring your projects are structurally sound and vibration-resistant.

Whether you're assembling a new machine or reinforcing an existing one, these joining plates offer the perfect blend of strength, simplicity, and versatility. Say goodbye to wobbly joints and hello to a rock-solid foundation.

Key Features

• Precision Fit: Specifically designed for 2020 aluminum extrusion profiles (20mm x 20mm).
• Robust Construction: 4mm thick aluminum plate provides excellent rigidity and load-bearing capacity.
• Optimized Hole Pattern: M5 screw holes on standard 20mm spacing, compatible with common T-nuts and bolts.
• Clean 90° Joints: Ensures accurate right-angle alignment for professional-looking builds.
• Versatile Use: Ideal for a wide range of projects from 3D printers to CNC machines.
• Durable Finish: Corrosion-resistant surface for long-lasting performance.

Technical Specifications

• Material: Aluminum
• Thickness: 4mm
• Dimensions: 60 x 60mm
• Hole Size: M5 (5mm diameter)
• Hole Spacing: 20mm
• Compatibility: 2020 Aluminum Extrusion

Applications & Use Cases

• 3D Printers: Reinforce frame corners for stable, high-quality prints.
• CNC Routers: Build rigid gantry frames that minimize flex and vibration.
• Robotics: Create sturdy bases and support structures for robotic arms.
• DIY Projects: Perfect for custom enclosures, workstations, and industrial automation.
• Laser Cutters: Provide a solid frame for precise laser engraving and cutting.

What's Included

• 1x 90 Degree Outside Joining Plate for 2020 Aluminum Extrusion (60x60mm)

(Note: Screws and T-nuts are not included. Please purchase separately.)

Compatibility

• Aluminum Extrusion: 2020 (20mm x 20mm)
• Screws: M5 socket head cap screws (recommended length: 8-10mm)
• T-nuts: M5 T-nuts for 2020 extrusion

MOKWN Recommendation

For a complete frame-building solution, we recommend pairing these joining plates with our high-quality 2020 aluminum extrusions, M5 T-nuts, and button head screws. Order all your frame components from MOKWN and get everything you need in one place, with fast delivery across Egypt.
