Voltage to PWM Converter Module
160 EGP · In stock

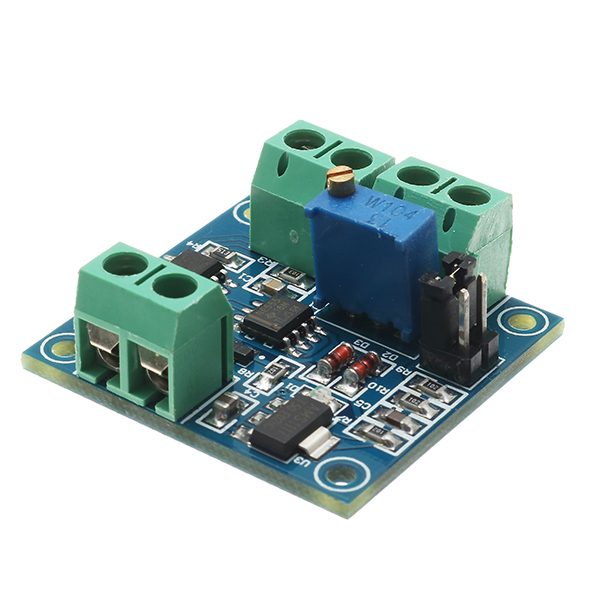

### Overview The Voltage to PWM Converter Module is a versatile signal conditioning solution that translates analog voltage signals (0-5V or 0-10V) into precise PWM (Pulse Width Modulation) duty cycle outputs. This module is essential for bridging the gap between analog sensors, potentiometers, or PLC outputs and digital PWM-controlled devices like motor drivers, LED dimmers, and power controllers. With a high-frequency PWM output and adjustable input range, it provides a reliable and efficient way to control a wide array of electronics projects. ### Key Features - **Dual Input Range**: Supports both 0-5V and 0-10V analog inputs, selectable via a switch, for maximum compatibility. - **High-Frequency PWM Output**: 50kHz PWM frequency ensures smooth, flicker-free control for motors and LEDs. - **Adjustable Output**: Convert any analog voltage to a 0-100% duty cycle, giving you fine control over your devices. - **Wide Operating Voltage**: Works with DC 7-12V power supplies, making it easy to integrate into existing systems. - **Temperature Robust**: Operates reliably in a wide temperature range from -25°C to 85°C. - **Compact and Easy to Use**: Small form factor with clear input/output terminals, ideal for prototyping and permanent installations. ### Technical Specifications - **Input Voltage Range**: 0-5V or 0-10V (selectable) - **PWM Frequency**: 50kHz (approximately) - **Duty Cycle Output**: 0-100% - **Operating Voltage**: DC 7-12V - **Error Tolerance**: 1%-3% - **Working Temperature**: -25°C to 85°C - **Dimensions**: Compact module (exact dimensions available in product images) ### Applications & Use Cases - **Motor Speed Control**: Use a potentiometer or analog sensor to adjust the speed of DC motors via PWM. - **LED Dimming**: Convert analog light sensor readings into PWM signals for smooth, efficient LED brightness control. - **Industrial Automation**: Interface analog PLC outputs with digital PWM inputs on drivers and controllers. - **Robotics**: Integrate analog distance sensors (e.g., ultrasonic, IR) to control servo or motor speed based on distance. - **Power Regulation**: Control the output of switching power supplies or inverters with a simple voltage signal. ### What's Included - 1x Voltage to PWM Converter Module - (No cables or connectors included; please refer to the pinout diagram for wiring) ### Compatibility - Works with any microcontroller (Arduino, Raspberry Pi, ESP32) that can read PWM signals. - Compatible with analog sensors, potentiometers, and PLC analog output modules. - Pairs well with motor drivers (e.g., L298N, L293D) and LED drivers that accept PWM inputs. ### MOKWN Recommendation This Voltage to PWM Converter Module is a must-have for any electronics enthusiast, student, or professional looking to bridge analog and digital control systems. Its high-frequency output and adjustable input range make it a versatile addition to your toolkit. Whether you're building a robot, automating lighting, or developing industrial control systems, this module simplifies the process. Order yours today from MOKWN and elevate your projects with precise PWM control!
