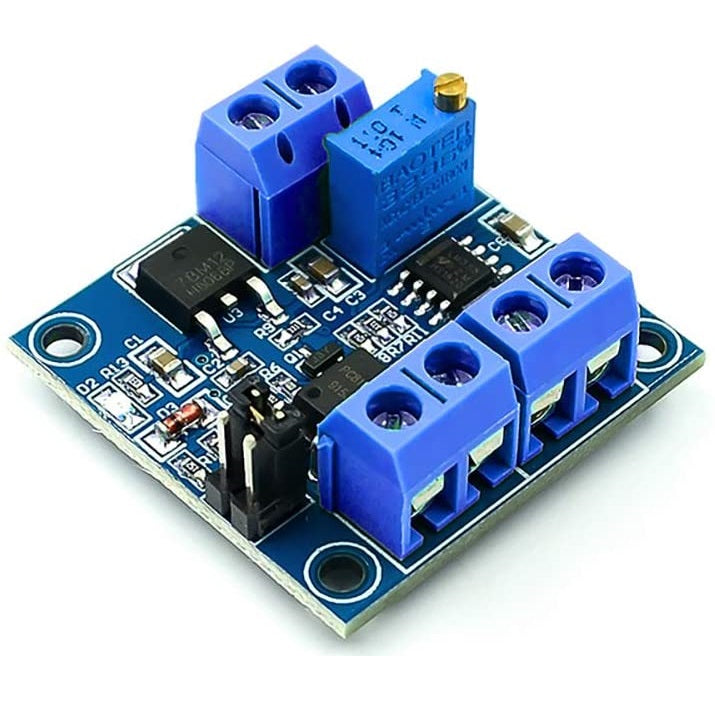

PWM to Voltage Converter Module

Overview

Unlock the full potential of your PWM signals with the MOKWN PWM to Voltage Converter Module. This compact and reliable module seamlessly transforms PWM signals into a precise 0-10V analog voltage, making it an essential bridge between digital control systems and analog devices. Whether you're working with PLCs, industrial control boards, microcontrollers, or automation projects, this converter ensures smooth, accurate signal translation for a wide range of applications.

Key Features

• Wide Conversion Range: Converts 0%-100% PWM duty cycle to a linear 0-10V analog output.
• Versatile Input Compatibility: Accepts PWM signals from both 4.5V-10V and 12V-24V (PLC level) sources.
• Optimized Frequency Range: Designed to work with PWM frequencies between 1kHz and 3kHz, ideal for most industrial and hobbyist controllers.
• Robust Design: Built to handle industrial environments, ensuring reliable performance in demanding settings.
• Easy Integration: Simple wiring and compact form factor make it easy to add to existing projects.

Technical Specifications

• Conversion Range: 0%-100% PWM → 0-10V DC
• Input Voltage Levels: 4.5V-10V, 12V-24V (PLC level)
• PWM Frequency Range: 1kHz - 3kHz
• Output Voltage: 0-10V DC
• Category: ADC-DAC

Applications & Use Cases

• PLC Integration: Convert PWM outputs from PLCs to analog signals for driving motors, valves, or actuators.
• Industrial Control: Interface between digital controllers and analog instruments, such as pressure sensors or temperature controllers.
• Microcontroller Projects: Use with Arduino, Raspberry Pi, or STM32 to generate analog voltages from PWM pins.
• Automation Systems: Control variable speed drives, lighting dimmers, or other analog-controlled equipment.
• Educational Labs: Ideal for teaching signal conversion concepts in electronics and control systems courses.

What's Included

• 1x PWM to Voltage Converter Module
• (Note: Wiring accessories and power supply not included)

Compatibility

• Compatible with any PWM source within the specified voltage and frequency ranges, including PLCs, microcontrollers, and function generators.
• Works with common microcontrollers like Arduino, ESP32, and Raspberry Pi (with level shifting if needed).
• Pairs well with MOKWN's range of sensors, motor drivers, and industrial control modules.
