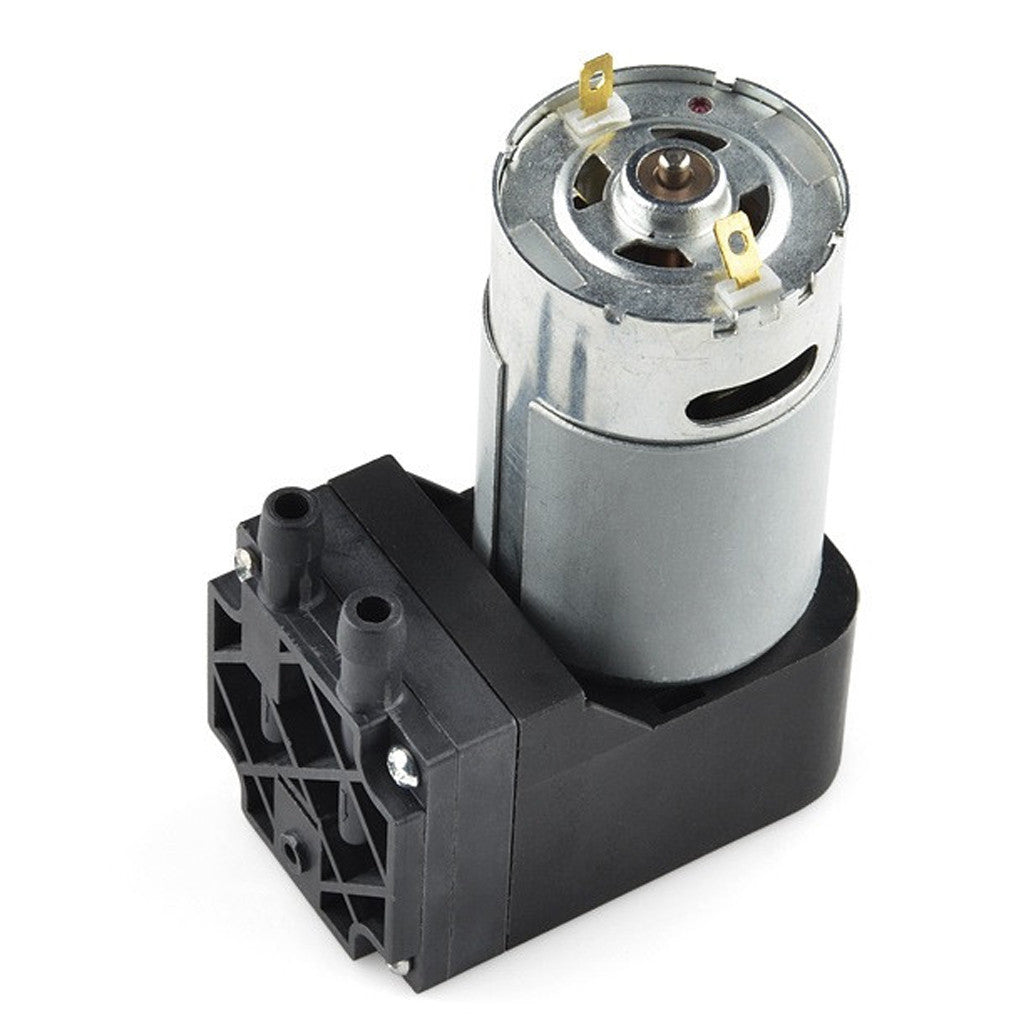

Vacuum Air Pump (12 Watt)

Overview

Introducing the MOKWN 12V Vacuum Air Pump, a compact yet powerful solution for your suction and vacuum needs. Engineered for reliability and efficiency, this pump delivers a strong vacuum of up to 66 kPa and a flow rate of 8-12 L/min, making it ideal for a wide range of projects. Whether you're building a universal gripper, experimenting with coffee grounds, or creating custom automation, this pump provides consistent performance with minimal noise (≤60 dB). Its robust design ensures long-lasting operation in both hobbyist and professional settings.

Key Features

• Efficient Vacuum Generation: Achieves up to 66 kPa vacuum level for strong suction.
• Generous Flow Rate: 8-12 L/min ensures rapid air evacuation.
• Quiet Operation: Noise levels do not exceed 60 dB, perfect for indoor use.
• Low Power Consumption: Nominal current of 350 mA at 12V, energy-efficient.
• Wide Voltage Range: Operates from 9-14V DC, compatible with various power sources.
• Compact and Lightweight: Easy to integrate into tight spaces.
• Durable Construction: Built to withstand continuous operation.

Technical Specifications

• Operating Voltage: 9-14V DC
• Nominal Current: 350 mA
• Flow Rate: 8-12 L/min
• Vacuum Level: 66 kPa
• Maximum Pressure: 120 kPa
• Noise Level: ≤60 dB
• Inlet/Outlet Diameter: 6 mm
• Power: 12W

Applications & Use Cases

• Universal Grippers: Create soft robotic grippers using coffee grounds or granules for adaptive grasping.
• Vacuum Suction Cups: Power suction-based pick-and-place systems.
• Medical and Lab Equipment: Gentle vacuum for filtration or aspiration.
• Automotive: Vacuum actuation for small mechanisms.
• Educational Projects: Demonstrate vacuum principles in physics and engineering classes.
• DIY Automation: Integrate into custom machines requiring vacuum control.

What's Included

• 1x 12V Vacuum Air Pump

Compatibility

• Power Supply: Any 9-14V DC source (e.g., 12V battery, bench supply, or MOKWN power adapter).
• Tubing: 6mm inner diameter silicone or PVC tubing (not included).
• Controller: Can be used with relays, MOSFETs, or microcontrollers (e.g., Arduino, Raspberry Pi) for automated control.

MOKWN Recommendation

This vacuum pump is an excellent choice for robotics enthusiasts, students, and engineers in Egypt looking to add vacuum capabilities to their projects. Its low power consumption and quiet operation make it suitable for both bench testing and field applications. Pair it with a 6mm tubing and a suitable power supply from our store for a complete setup. Upgrade your projects with reliable suction – order now and experience the MOKWN difference!
