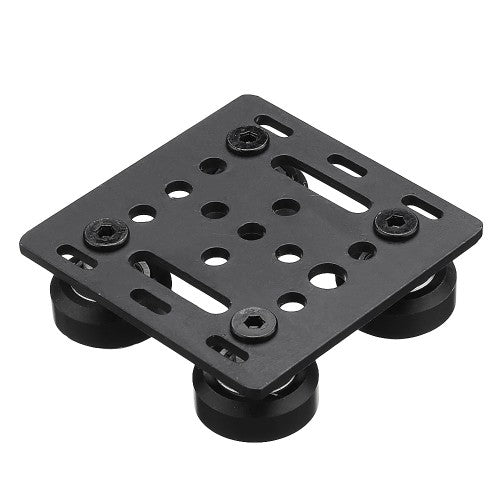

V-slot gantry plate

Overview

Transform your V-slot extrusion into a precise, smooth-moving gantry system with the MOKWN V-slot Gantry Plate. This CNC-machined aluminum plate is the essential mounting bracket for attaching V-slot wheels and creating linear motion for 3D printers, CNC routers, laser engravers, and custom automation projects. Designed for durability and precision, it ensures your axes move with minimal friction and maximum stability.

Key Features

• Precision Machined: Crafted from high-quality aluminum for strength and durability.
• Universal Compatibility: Fits standard V-slot profiles (2020, 2040) and V-slot wheels (with bearings).
• Versatile Mounting: Pre-drilled holes for easy attachment of stepper motors, carriages, and other components.
• Smooth Motion: Pairs perfectly with V-slot wheels and bearings for frictionless linear travel.
• Easy Installation: Includes all necessary hardware for quick setup.

Technical Specifications

• Material: Aluminum Alloy
• Compatible Profiles: V-slot 2020, 2040
• Compatible Wheels: Standard V-slot wheels with 608ZZ bearings or similar
• Mounting Holes: Pre-drilled for M5 hardware (or as specified)
• Finish: Anodized or milled finish for corrosion resistance

Applications & Use Cases

• 3D Printers: Upgrade or build your own CoreXY, Cartesian, or delta printer.
• CNC Routers: Create a sturdy gantry for milling and engraving.
• Laser Engravers: Add a smooth Z-axis or X/Y motion system.
• Robotics: Build custom linear actuators and pick-and-place machines.
• Automation: Ideal for DIY projects requiring precise linear movement.

What's Included

• 1x V-slot Gantry Plate
• Mounting screws and T-nuts (if applicable)
• (V-slot wheels and profiles sold separately)

Compatibility

• Compatible with all standard V-slot aluminum extrusions.
• Works with V-slot wheels (e.g., 20mm wheels with 608 bearings).
• Pairs with NEMA 17 or NEMA 23 stepper motors for motorized systems.

MOKWN Recommendation

For a complete motion system, pair this gantry plate with our V-slot aluminum profiles, V-slot wheels, and GT2 belts. Whether you're a hobbyist or professional, this plate is a reliable foundation for your next build. Order today and get free shipping across Egypt on orders over 500 EGP!
