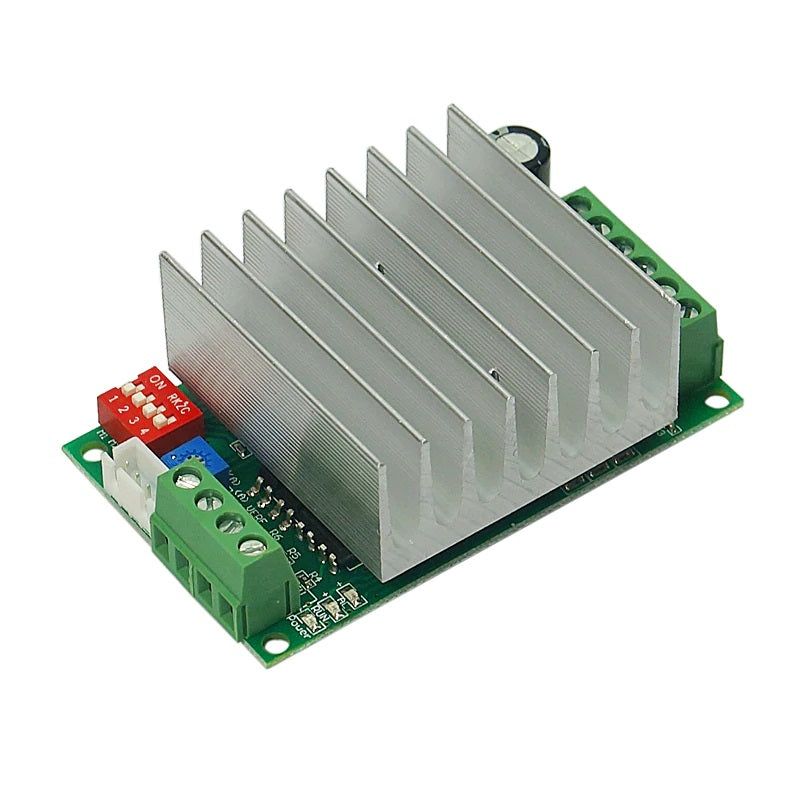

TB6600 Stepper Motor Driver (5A peak)

Overview

Elevate your CNC, 3D printer, and robotics projects with the TB6600 Stepper Motor Driver from MOKWN. This robust driver delivers a powerful 5A peak current and supports a wide voltage range of 8–42V, making it the go-to choice for driving NEMA 17, NEMA 23, and NEMA 34 stepper motors with precision and reliability. Whether you're a hobbyist or a professional, the TB6600 offers smooth, quiet operation and advanced features like micro-stepping and over-current protection.

Key Features

• High Current Output: 5A peak current (4.5A operating) drives demanding stepper motors with ease.
• Wide Voltage Range: Operates from 8V to 42V, compatible with a variety of power supplies.
• Micro-Stepping Support: Provides smooth motion with selectable micro-step resolutions (1, 2/A, 2/B, 4, 8, 16, 32).
• Optical Isolation: Protects your controller (e.g., Arduino) from electrical noise and surges.
• Over-Current & Over-Temperature Protection: Ensures long-lasting durability and safe operation.
• LED Indicators: Clear status LEDs for power and fault conditions.
• Easy Wiring: Screw terminals for quick and secure connections.

Technical Specifications

• Peak Current: 5A
• Operating Current: 4.5A
• Voltage Range: 8–42V DC
• Suitable Motor Types: 4-wire, 6-wire, and 8-wire stepper motors
• Micro-Step Resolutions: 1, 2/A, 2/B, 4, 8, 16, 32
• Logic Input Voltage: 5V DC (opto-isolated)
• Dimensions: 96mm x 56mm x 33mm (approx.)

Applications & Use Cases

• CNC Machines: Ideal for driving stepper motors in routers, mills, and laser cutters.
• 3D Printers: Upgrade your printer's motion system for higher torque and precision.
• Robotics: Power robotic arms, mobile platforms, and automated systems.
• Automation: Suitable for conveyor belts, pick-and-place machines, and other industrial automation.
• Educational Projects: Perfect for university labs and maker spaces.

What's Included

• 1x TB6600 Stepper Motor Driver
• 1x Heatsink (pre-installed)
• Quick start guide (English)

Compatibility

• Controllers: Arduino, Raspberry Pi, and any 5V logic microcontroller.
• Stepper Motors: NEMA 17, NEMA 23, NEMA 34 (4, 6, or 8 wires).
• Power Supplies: 8–42V DC, ensure sufficient current rating (e.g., 12V 5A for NEMA 17).

MOKWN Recommendation

For a complete CNC setup, pair this TB6600 driver with a reliable 24V power supply and a NEMA 23 stepper motor from our store. This combination offers the perfect balance of power, speed, and accuracy for your projects. If you're new to stepper drivers, check out our tutorials and wiring diagrams on the MOKWN blog. For any questions, our Cairo-based support team is here to help you get your project running smoothly.
