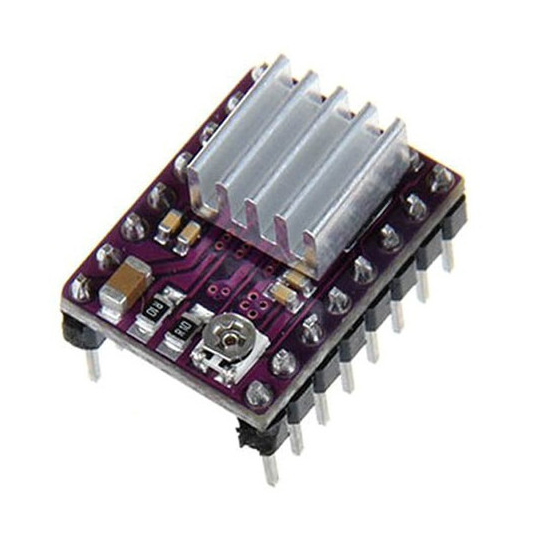

DRV8825 Stepper Motor Driver (2.5 A - Ramps Compatible)

Overview

Upgrade your 3D printer or CNC machine with the DRV8825 stepper motor driver, a high-performance module designed for precise and quiet motor control. This driver supports up to 2.5A per coil and offers adjustable current limiting, making it a versatile choice for a wide range of stepper motors. With built-in micro-stepping (down to 1/32 step) and protection features like over-temperature and over-current, the DRV8825 is a reliable and efficient solution for your motion control projects. Its compatibility with RAMPS and other popular controller boards makes it an essential component for any maker, hobbyist, or professional.

Key Features

• High Current Capacity: Supports up to 2.5A per coil, suitable for most NEMA 17 and NEMA 23 stepper motors.
• Micro-Stepping: Provides full-step to 1/32-step resolutions for smoother and more precise motion.
• Adjustable Current Limiting: Easily set the motor current with a potentiometer to match your motor's specifications.
• Built-in Protection: Over-temperature, over-current, and under-voltage lockout protect your driver and motor.
• Low Power Dissipation: Low RDS(on) MOSFETs reduce heat generation, improving efficiency.
• Compact Design: Small form factor with standard pinout, ideal for RAMPS and other 3D printer boards.

Technical Specifications

• Driver Type: DRV8825 (Texas Instruments)
• Input Voltage: 8.2V to 45V DC
• Output Current: Up to 2.5A per coil (with proper heat sinking)
• Micro-step Resolutions: Full, 1/2, 1/4, 1/8, 1/16, and 1/32 step
• Logic Voltage: 3.3V and 5V compatible
• Protection Features: Over-temperature, over-current, under-voltage lockout
• Dimensions: Approximately 20.5mm x 15.5mm
• Compatibility: RAMPS 1.4, RAMPS 1.5, and other stepstick-compatible boards
• Heat Sink: Recommended for continuous high-current operation

Applications & Use Cases

• 3D Printers: Ideal for driving extruder and axis motors in FDM printers.
• CNC Machines: Suitable for precise positioning in CNC routers, mills, and laser cutters.
• Robotics: Provides smooth motion control for robotic arms and mobile platforms.
• DIY Projects: Perfect for any project requiring precise stepper motor control.

What's Included

• 1x DRV8825 Stepper Motor Driver Module

Compatibility

• Controller Boards: RAMPS 1.4, RAMPS 1.5, and other stepstick-compatible boards.
• Stepper Motors: Works with bipolar stepper motors, including NEMA 17 and NEMA 23.
• Logic Levels: 3.3V and 5V logic compatible.

MOKWN Recommendation

For optimal performance, pair the DRV8825 with a suitable heat sink and ensure proper ventilation. This driver is an excellent choice for upgrading your 3D printer or CNC machine for quieter and more precise operation. If you have any questions about compatibility or setup, our team at MOKWN is here to help.
