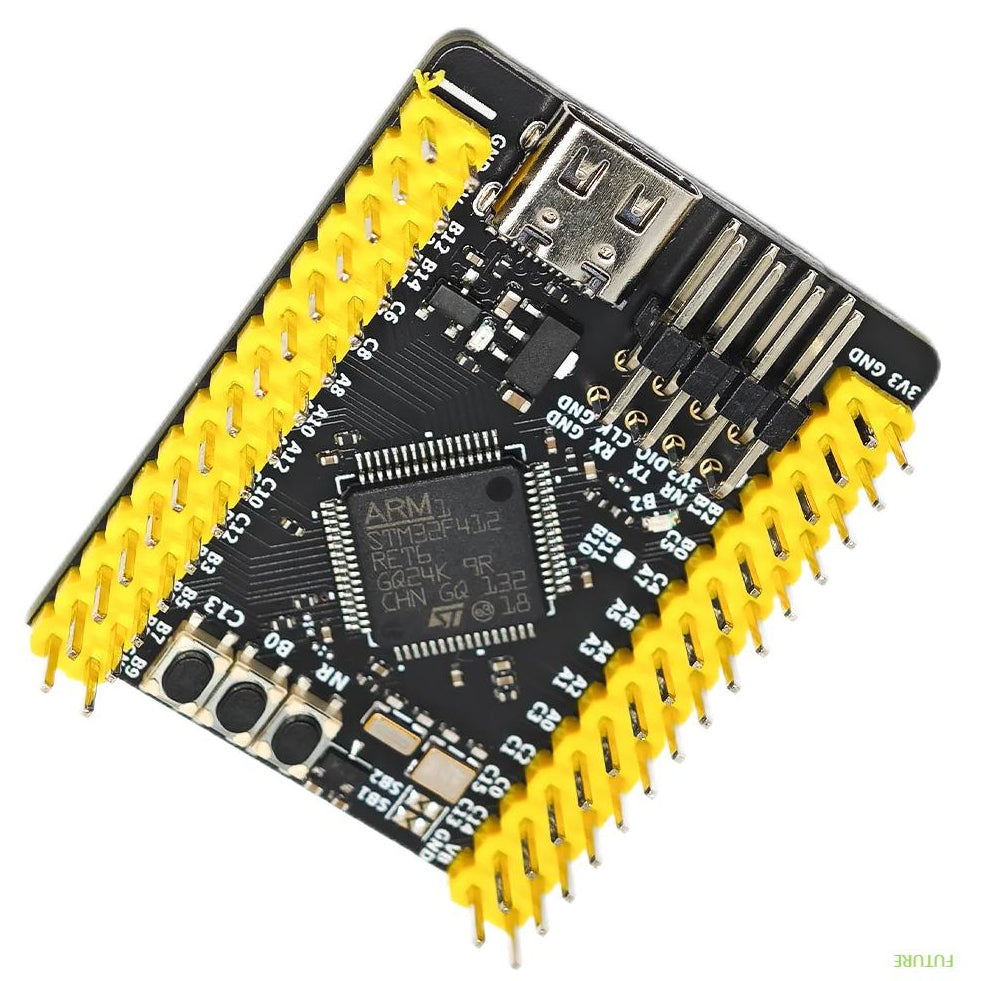

STM32F412RET6 STM32F4 Development Board original (The BlACKPill)

Overview

Unleash the full potential of your embedded projects with the STM32F412RET6 BlackPill Development Board, now available at MOKWN. This compact yet powerful board is built around the STM32F412RET6 microcontroller, featuring a high-performance Arm® Cortex®-M4 32-bit RISC core with a floating-point unit (FPU). Operating at up to 168 MHz, it delivers exceptional processing power for advanced applications, from robotics to IoT. The BlackPill form factor is designed for rapid prototyping, offering a rich set of peripherals and GPIOs in a small footprint. Whether you're a student, hobbyist, or professional engineer, this board is your gateway to creating sophisticated embedded systems with ease.

Key Features

• High-Performance Core: Arm Cortex-M4 with FPU, running at up to 168 MHz for demanding tasks.
• Ample Memory: 512 KB Flash and 192 KB SRAM for complex applications.
• Rich Connectivity: USB OTG FS, multiple UART, SPI, I2C, and CAN interfaces.
• Advanced Peripherals: 12-bit ADCs, DAC, timers, and PWM for precise control.
• Low Power Modes: Multiple low-power states for energy-efficient designs.
• Compact Form Factor: BlackPill layout ideal for breadboards and custom PCBs.
• Easy Programming: Supports STM32CubeIDE, Arduino, and PlatformIO.

Technical Specifications

• Microcontroller: STM32F412RET6
• Core: Arm Cortex-M4 with FPU
• Clock Speed: Up to 168 MHz
• Flash Memory: 512 KB
• SRAM: 192 KB
• Operating Voltage: 3.3V (with 5V tolerant I/O)
• Power Supply: USB or external 3.3V/5V
• Digital I/O Pins: 50+ (including analog)
• Analog Inputs: 16-channel 12-bit ADC
• Communication Interfaces: USB OTG FS, 3x USART, 3x SPI, 3x I2C, 2x CAN
• Timers: Multiple 16-bit and 32-bit timers with PWM
• Debugging: SWD (Serial Wire Debug) header
• Dimensions: 52mm x 20mm (approx.)

Applications & Use Cases

• Robotics: Motor control, sensor fusion, and autonomous navigation.
• IoT: Connect to cloud services via Wi-Fi/GSM shields for smart devices.
• Audio Processing: Real-time audio effects and synthesis.
• Data Acquisition: High-speed sampling for scientific and industrial monitoring.
• Prototyping: Ideal for rapid development of complex embedded systems.
• Education: Perfect for university courses and maker workshops.

What's Included

• 1x STM32F412RET6 BlackPill Development Board
• (Note: USB cable not included)

Compatibility

• Programming Environments: STM32CubeIDE, Keil MDK, Arduino IDE (via STM32 core), PlatformIO.
• Operating Systems: Windows, Linux, macOS.
• Peripherals: Compatible with a wide range of sensors, displays, and modules via standard interfaces.
• Expansion: Breadboard-friendly and compatible with common shields (with level shifting).

MOKWN Recommendation

At MOKWN, we highly recommend the STM32F412RET6 BlackPill for makers and professionals seeking a powerful yet affordable development board. Its high clock speed and ample memory make it suitable for advanced projects that require real-time processing. Whether you're building a drone flight controller, a smart home hub, or a data logger, this board delivers the performance you need. For beginners, we suggest starting with Arduino IDE for a smooth learning curve, then progressing to STM32CubeIDE for advanced features. Trust MOKWN for genuine, high-quality components and fast delivery across Egypt.
