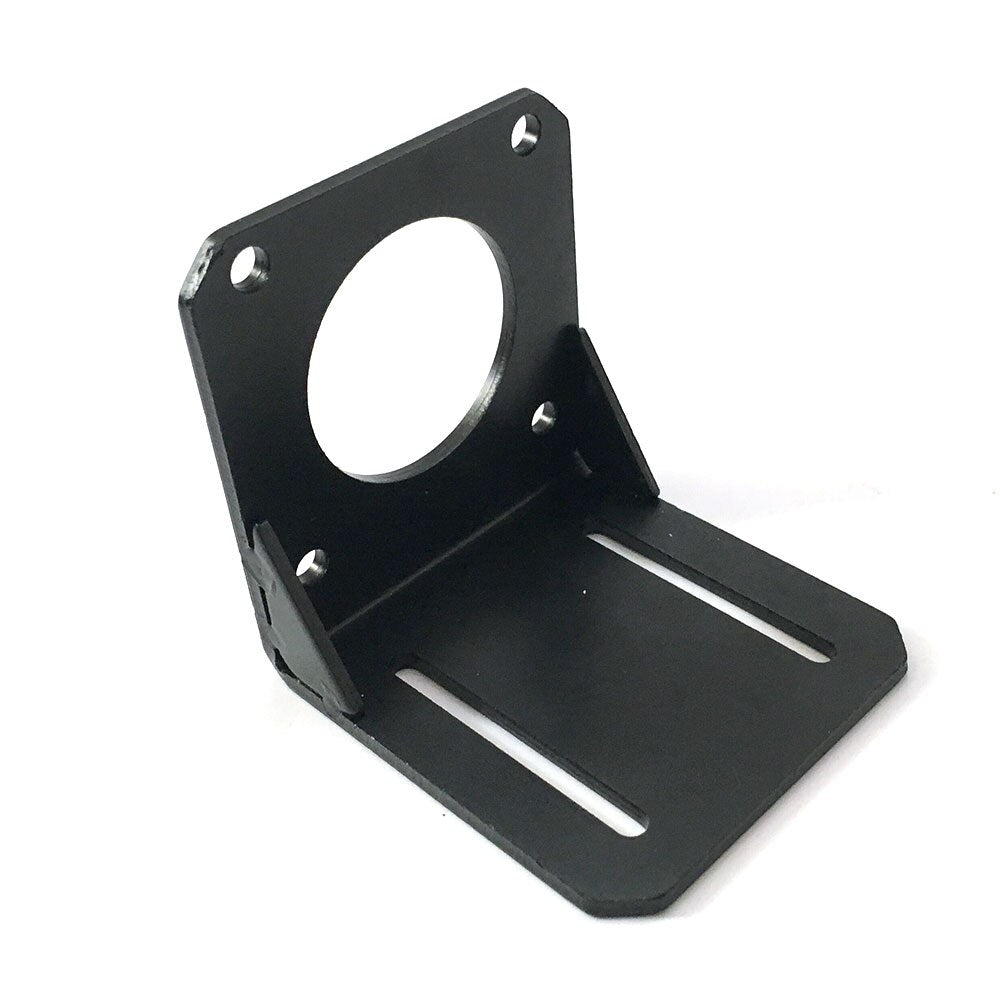

Stepper Motor Base Mount ( Nema 23-Right Angle)

Overview

Elevate your CNC and robotics projects with the MOKWN Stepper Motor Base Mount (NEMA 23 – Right Angle). Engineered for precision and durability, this right-angle bracket securely holds NEMA 23 stepper motors with a 47mm hole spacing, providing a stable and space-saving mounting solution. Whether you're building a CNC router, a 3D printer, or an automated system, this mount ensures reliable performance and easy integration.

Key Features

• Right-Angle Design: Allows for flexible motor placement, saving valuable space in tight enclosures and enabling unique mechanical configurations.
• Precision Fit: Designed specifically for NEMA 23 motors with 47mm hole spacing, ensuring a perfect, secure fit.
• Solid Construction: Made from high-quality materials for rigidity and long-lasting durability, reducing vibration and improving accuracy.
• Easy Installation: Pre-drilled holes and a straightforward design make mounting quick and hassle-free.
• Versatile Compatibility: Works with a wide range of NEMA 23 stepper motors from various manufacturers, making it a versatile addition to your toolkit.

Technical Specifications

• Compatible Motor Frame Size: NEMA 23
• Mounting Hole Spacing: 47mm
• Orientation: Right Angle (90 degrees)
• Material: High-grade aluminum alloy (or steel, depending on variant)
• Finish: Anodized or coated for corrosion resistance
• Weight: Lightweight yet sturdy

Applications & Use Cases

• CNC Machines: Ideal for mounting stepper motors on the X, Y, or Z axes of DIY and professional CNC routers, mills, and lasers.
• 3D Printers: Perfect for positioning motors in custom 3D printer builds or upgrades.
• Robotics: Suitable for robotic arms, automated guided vehicles (AGVs), and other motion control systems.
• Automation: Great for conveyor systems, pick-and-place machines, and other industrial automation equipment.
• Educational Projects: A must-have for engineering students and hobbyists working on mechatronics projects.

What's Included

• 1x Stepper Motor Base Mount (NEMA 23 – Right Angle)
• Mounting screws (if applicable)
• (Note: Stepper motor and other accessories are not included.)

Compatibility

• Compatible with all NEMA 23 stepper motors that have a 47mm bolt circle pattern.
• Works seamlessly with popular controllers like RAMPS, GRBL, and other CNC/3D printer control boards.
• Pairs well with other MOKWN CNC and mechanical components.

MOKWN Recommendation

For optimal performance, pair this mount with a high-torque NEMA 23 stepper motor and a reliable stepper driver from MOKWN. Ensure your motor's shaft aligns correctly with your mechanical system to avoid binding. This mount is an excellent choice for makers, engineers, and educators seeking a robust and affordable mounting solution in Egypt.
