Solid V-Wheel Bearing Kit for V-slot Aluminum Extrusion

Overview

Upgrade your CNC router, 3D printer, or linear motion system with the Solid V-Wheel Bearing Kit, engineered for V-slot aluminum extrusion. Designed for heavier loads and demanding applications, this kit provides superior rigidity and smooth, precise movement compared to standard V-wheels. Each kit includes everything you need to build a robust, low-friction linear motion system that stands up to the rigors of continuous operation.

Key Features

• Solid V-Wheel Design: Machined from solid material for increased strength and durability, ideal for high-load applications.
• Precision Ball Bearings: Includes two 625 2RS sealed bearings for smooth, quiet, and maintenance-free rotation.
• Complete Hardware Kit: Comes with precision shims, an aluminum spacer, a lock nut, and a screw for a hassle-free installation.
• Compatible with V-Slot Extrusion: Specifically designed to fit OpenBuilds V-slot and similar aluminum extrusions.
• Enhanced Stability: The solid construction reduces flex and vibration, ensuring accurate and repeatable motion.

Technical Specifications

• Wheel Type: Solid V-wheel (compatible with V-slot 20x20, 20x40, 20x60, 20x80, 40x40, 40x80 profiles)
• Bearings: 625 2RS (5mm bore, 16mm OD, 5mm width) – sealed ball bearings
• Shims: 5mm precision shims (x2) for fine-tuning wheel alignment
• Spacer: Aluminum spacer (M5 – 6mm) to maintain proper bearing spacing
• Lock Nut: Nylon insert lock nut (M5) to prevent loosening under vibration
• Screw: M5 x 25mm socket head cap screw
• Material: High-grade steel for wheels and bearings; aluminum for spacer

Applications & Use Cases

• CNC Routers and Mills: Ideal for gantry and axis systems requiring high rigidity.
• 3D Printers: Suitable for CoreXY, Cartesian, and other printer designs where load capacity is critical.
• Laser Cutters and Engravers: Provides stable motion for precise cutting and engraving.
• Linear Motion Systems: Perfect for custom automation, pick-and-place machines, and robotics.
• Upgrade Projects: Replace standard V-wheels to handle heavier carriages or increased speeds.

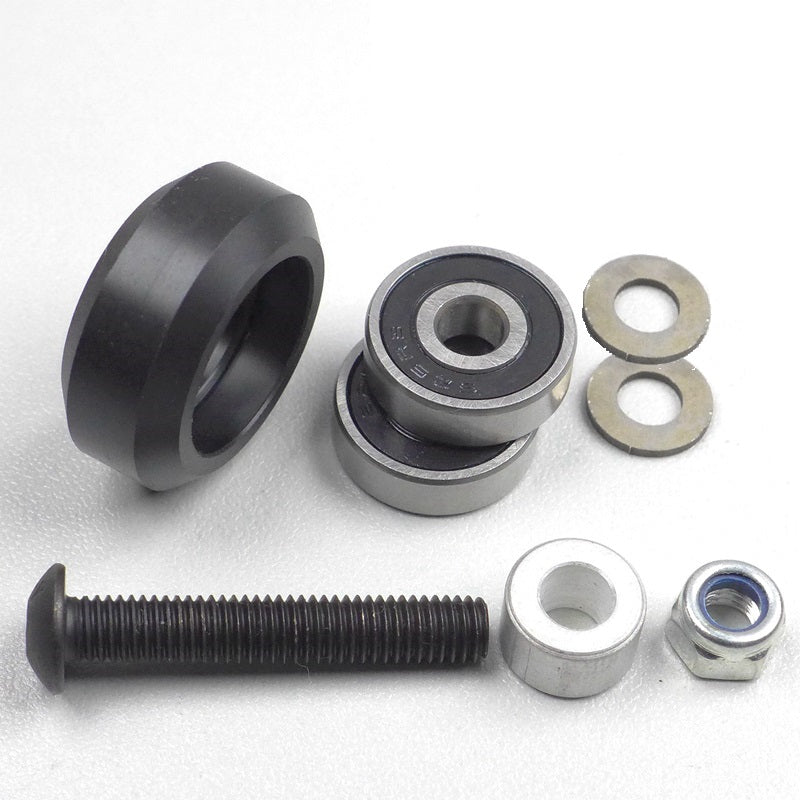

What's Included

• OpenBuilds Solid V wheels x 1
• Ball bearings – 625 2RS x 2
• 5mm precision shim x 2
• Aluminum Spacer (M5 – 6mm) x 1
• Lock nut with Nylon Insert x 1
• Screw (M5 – 25mm) x 1

Compatibility

• Designed for OpenBuilds V-slot aluminum extrusion profiles (20x20, 20x40, 20x60, 20x80, 40x40, 40x80).
• Works with standard M5 hardware and V-slot wheels.
• Compatible with OpenBuilds plates, brackets, and other accessories that use V-wheels.
• Note: For use with heavier loads, ensure your extrusion and frame are adequately supported.

MOKWN Recommendation

For makers in Egypt looking to build or upgrade a CNC machine, 3D printer, or any linear motion system, this Solid V-Wheel Bearing Kit is an excellent choice. Its robust construction ensures long-lasting performance even under demanding conditions. Pair it with V-slot aluminum extrusion and compatible plates from MOKWN for a complete, high-quality motion system. Order now to keep your projects moving smoothly!
