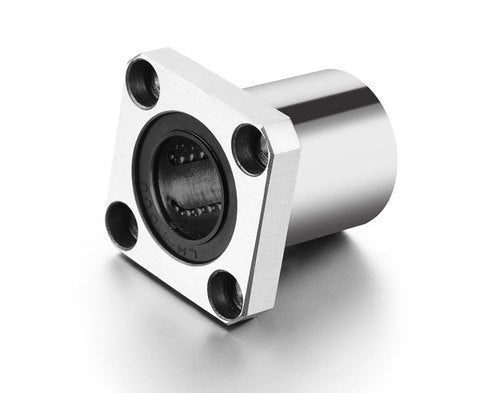

Flange Mounted Linear Bearing LMK10UU (10mm Dia)

Overview

The LMK10UU is a compact, flange-mounted linear ball bearing designed for smooth, precise linear motion in a wide range of automation and CNC applications. Its integrated flange allows for easy and secure mounting directly to a surface, eliminating the need for a separate bearing housing. This bearing is an excellent choice for projects where space is limited and reliable, low-friction movement is essential.

Key Features

• Flange Mounted Design: Simplifies installation and reduces assembly time.
• Smooth Linear Motion: Recirculating ball design ensures low friction and consistent movement.
• High Load Capacity: Supports both radial and axial loads, making it versatile for various applications.
• Durable Construction: Made from high-quality bearing steel for long-lasting performance.
• Compact Size: Ideal for applications with space constraints.

Technical Specifications

• Model: LMK10UU
• Shaft Diameter: 10 mm
• Overall Length: 29 mm
• Overall Width: 29 mm
• Overall Height: 22 mm
• Flange Width: 22 mm
• Flange Height: 22 mm
• Mounting Hole Spacing: 22 mm (center to center)
• Mounting Hole Diameter: 3.5 mm
• Dynamic Load Rating: 370 N
• Static Load Rating: 550 N
• Weight: 54 g

Applications & Use Cases

• 3D Printers: For precise movement of print heads and build plates.
• CNC Routers: Guiding axes for accurate cutting and engraving.
• Automation Equipment: Linear actuators and pick-and-place machines.
• Robotics: Smooth motion for robotic arms and gantries.
• Medical Devices: Laboratory equipment and diagnostic machines.
• Packaging Machinery: For reliable and repeatable linear motion.

What's Included

• 1x LMK10UU Flange Mounted Linear Bearing

Compatibility

• Designed for use with 10 mm diameter hardened and ground steel shafts (sold separately).
• Compatible with standard metric mounting hardware (M3 screws).

MOKWN Recommendation

For optimal performance, pair the LMK10UU with a hardened and ground linear shaft (e.g., SFC10) and ensure proper alignment during installation. This bearing is a reliable and cost-effective solution for your linear motion needs, backed by MOKWN's commitment to quality and customer satisfaction.
