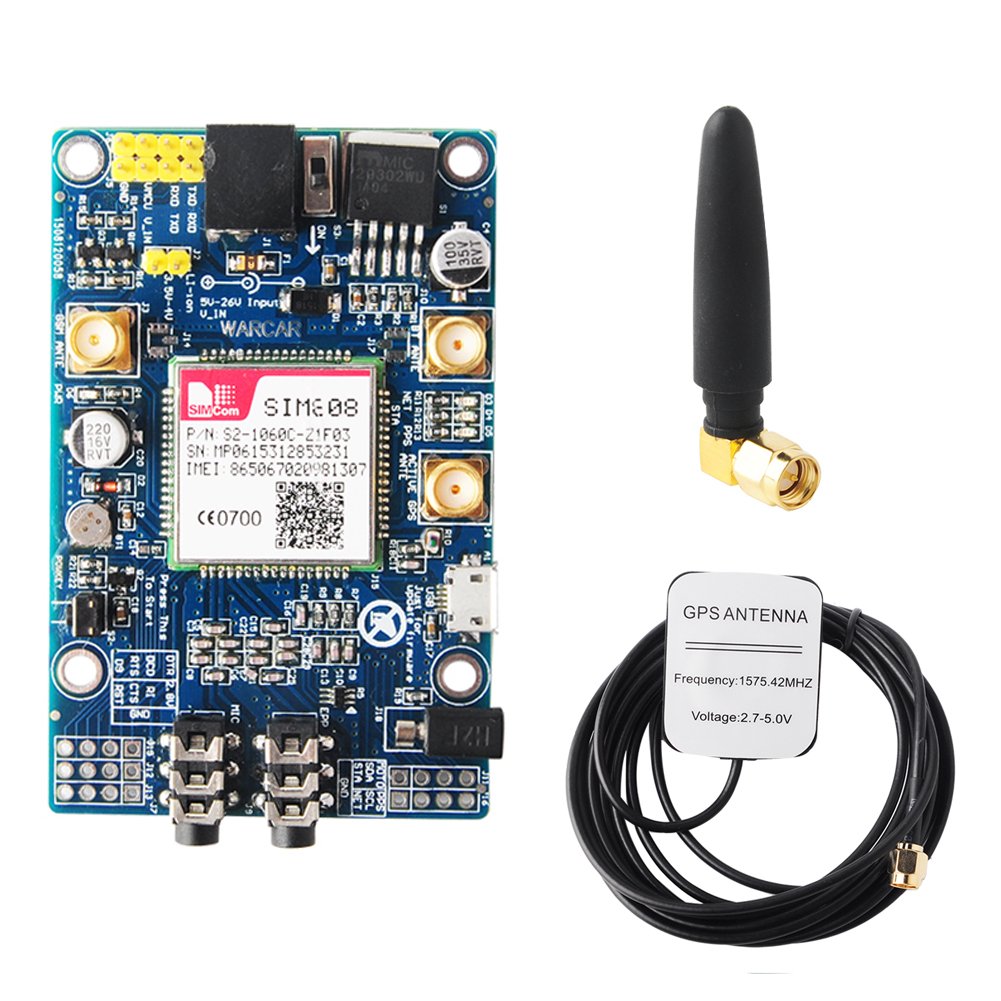

SIM808 GPS-GSM-GPRS Module

Overview

The SIM808 GPS-GSM-GPRS Module is a compact, all-in-one solution that integrates GSM (cellular), GPRS (data), and GPS (location) capabilities into a single module. This powerful combination makes it ideal for IoT projects that require real-time tracking, remote monitoring, and wireless communication. With low power consumption and an integrated Li-Ion battery charging circuit, it’s perfect for portable and battery-powered applications.

Key Features

• Triple Functionality: Combines GSM, GPRS, and GPS in one module, reducing complexity and space.
• Low Power Consumption: Designed for energy-efficient operation, extending battery life in remote applications.
• Integrated Battery Charging: Built-in charging circuit for Li-Ion batteries, simplifying power management.
• Real-Time Tracking: Accurate GPS positioning for location-based services.
• Versatile Communication: Supports voice calls, SMS, and data transmission via GPRS.
• Easy Integration: UART interface for seamless connection with microcontrollers.

Technical Specifications

• Power Supply: 3.4V - 4.4V DC
• GSM Bands: 850/900/1800/1900 MHz
• GPRS: Multi-slot class 12, GPRS class 12
• GPS: Supports GPS, GLONASS, and BeiDou satellite systems
• Interface: UART (3.3V logic)
• Antenna Connectors: IPX/U.FL for GSM and GPS antennas
• Operating Temperature: -40°C to +85°C
• Dimensions: 40mm x 28mm x 8mm

Applications & Use Cases

• Vehicle Tracking Systems: Real-time location monitoring for fleet management and anti-theft.
• Personal GPS Trackers: Wearable devices for children, elderly, or pets.
• Remote Monitoring: Collect data from sensors and send it to the cloud via GPRS.
• Smart Agriculture: Monitor field conditions and track livestock.
• Logistics and Supply Chain: Track shipments and ensure timely delivery.

What's Included

• 1x SIM808 GPS-GSM-GPRS Module
• 1x GSM Antenna
• 1x GPS Antenna

Compatibility

• Microcontrollers: Works with Arduino, Raspberry Pi, ESP32, STM32, and other platforms via UART.
• Development Boards: Can be used with MOKWN's range of development boards and shields.
• Software: AT commands for easy integration with any microcontroller or single-board computer.

MOKWN Recommendation

Whether you are a hobbyist building your first GPS tracker or a professional developing a commercial IoT solution, the SIM808 module is a reliable and cost-effective choice. Its integrated features and low power consumption make it a top pick for projects that demand connectivity and location awareness. Order now and start building your own tracking and communication systems with confidence.
