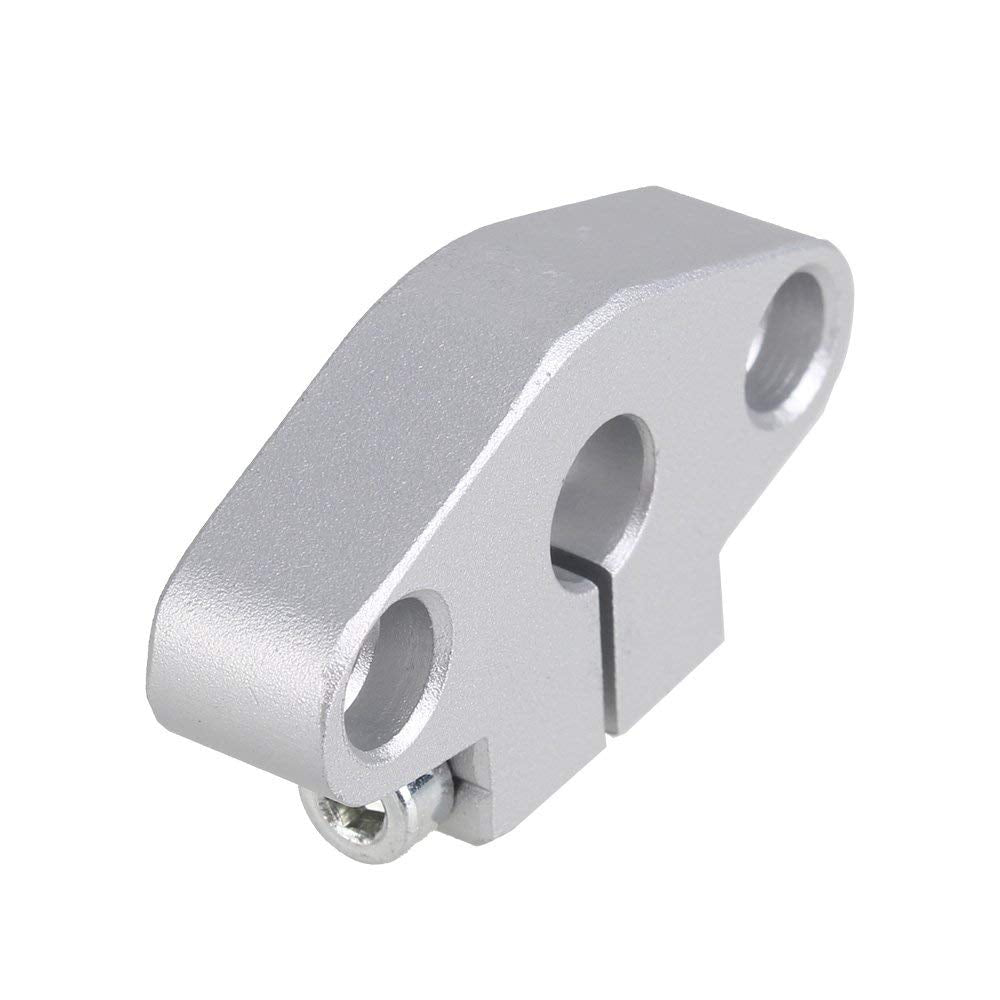

Shaft End Support SF8 (Horizontal - 8mm)

Overview

The SF8 Shaft End Support is an essential component for any precision linear motion system. Designed to securely hold and support 8mm shafts in a horizontal orientation, this sturdy bracket ensures stability and accuracy in CNC machines, 3D printers, and robotics projects. Its compact and robust construction minimizes vibration and deflection, allowing your machinery to operate smoothly and precisely.

Key Features

• Precision Support: Specifically engineered for horizontal mounting of 8mm shafts, providing a stable and rigid support point.
• Secure Clamping: Equipped with an M4 clamping bolt to firmly lock the shaft in place, preventing unwanted movement.
• Easy Mounting: Features M5 mounting bolt holes for simple and secure attachment to your machine frame or structure.
• Durable Construction: Made from high-quality aluminum alloy, offering excellent strength and corrosion resistance.
• Compact Design: Low-profile design saves space and integrates easily into your existing setup.

Technical Specifications

• Shaft Diameter: 8mm
• Clamping Bolt: M4 (included)
• Mounting Bolt: M5 (not included)
• Orientation: Horizontal
• Material: Aluminum Alloy

Applications & Use Cases

• CNC Machines: Ideal for supporting drive shafts and lead screws in DIY and professional CNC routers and mills.
• 3D Printers: Provides reliable shaft support for linear motion systems in 3D printers.
• Robotics: Essential for building stable and precise robotic joints and linear actuators.
• Automation Equipment: Suitable for various automated systems requiring smooth and accurate linear movement.

What's Included

• 1x SF8 Shaft End Support (Horizontal)
• 1x M4 Clamping Bolt

Compatibility

• Compatible with any 8mm shaft
• Works with M5 mounting hardware (not included)
• Perfect for use with MOKWN's range of linear rails, bearings, and CNC components

MOKWN Recommendation

For optimal performance, pair the SF8 Shaft End Support with high-quality 8mm linear shafts and compatible bearings from MOKWN. Whether you're building a new machine or upgrading an existing one, this support ensures your linear motion system operates with precision and longevity. Order today and take your projects to the next level!
