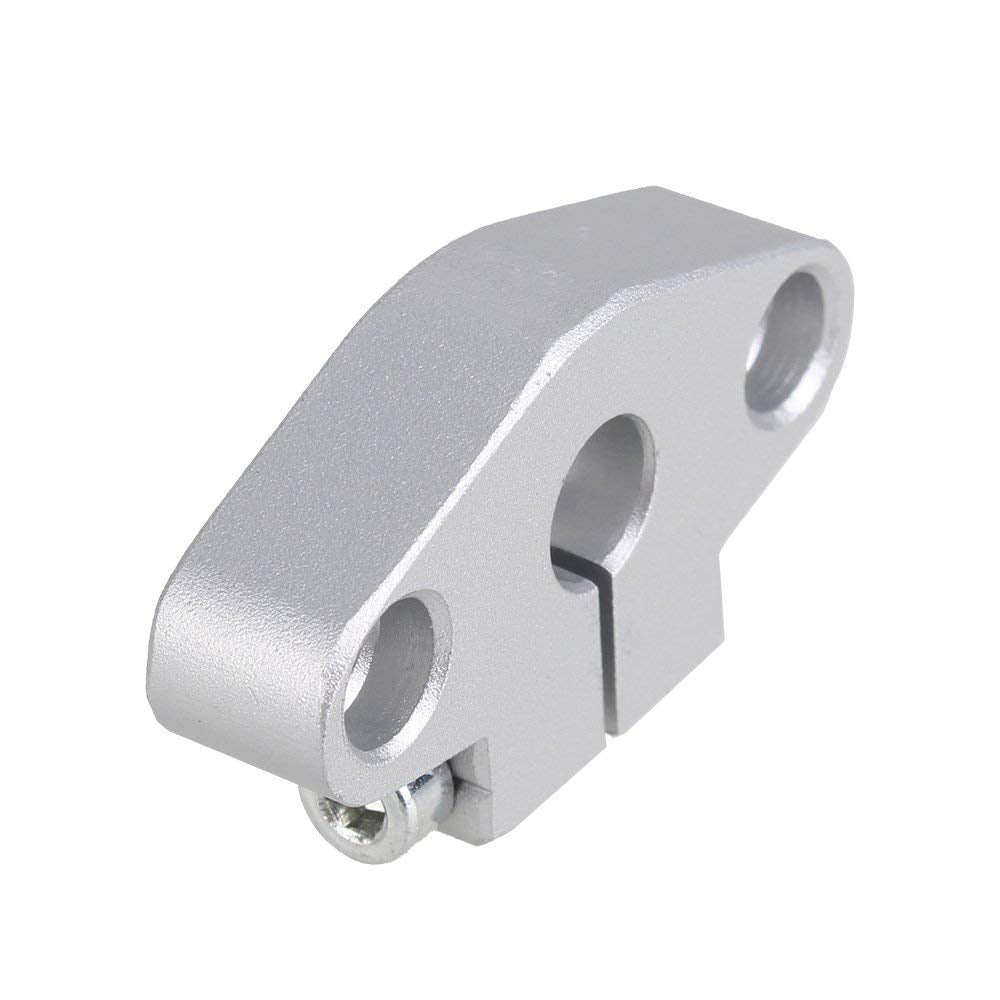

Shaft End Support SF10 (Horizontal -10mm)

Overview

Elevate your CNC machine's precision and stability with the MOKWN SF10 Shaft End Support. Engineered for 10mm shafts, this horizontal support is a critical component for any DIY CNC router, mill, or lathe. Its robust anodized aluminum construction ensures long-lasting durability, while its precise design minimizes vibration and maintains accurate linear motion. Whether you're building a new machine or upgrading an existing one, the SF10 is the perfect choice for reliable shaft support.

Key Features

• Precision Support: Specifically designed for 10mm shafts, ensuring a snug and secure fit.
• Durable Construction: Made from high-quality anodized aluminum, resistant to wear and corrosion.
• Horizontal Orientation: Optimized for horizontal shaft applications, common in CNC and mechanical setups.
• Easy Installation: Includes mounting and clamping bolts for straightforward mounting.
• Vibration Reduction: Helps minimize shaft deflection, improving overall machine accuracy.

Technical Specifications

• Shaft Diameter: 10 mm
• Clamping Bolt: M4
• Mounting Bolt: M5
• Material: Anodized Aluminum
• Mounting Orientation: Horizontal

Applications & Use Cases

• CNC Routers: Provides stable support for linear motion shafts in gantry or moving table designs.
• CNC Mills & Lathes: Ensures accurate shaft alignment for cutting and machining operations.
• 3D Printers: Used in some designs for smooth rod support.
• Robotics: Suitable for linear motion systems in robotic arms and actuators.
• DIY Projects: Perfect for makers and hobbyists building custom machinery.

What's Included

• 1x SF10 Shaft End Support (Horizontal)
• Mounting bolts (M5)
• Clamping bolt (M4)

Compatibility

• Compatible with 10mm shafts commonly used in CNC machines, linear motion systems, and various mechanical assemblies.
• Works with standard M5 mounting holes and M4 clamping hardware.

MOKWN Recommendation

For optimal performance, pair the SF10 with high-quality linear shafts and bearings. Ensure proper alignment during installation to maximize precision. This support is a must-have for any serious CNC enthusiast or professional looking to build or upgrade a reliable machine.
