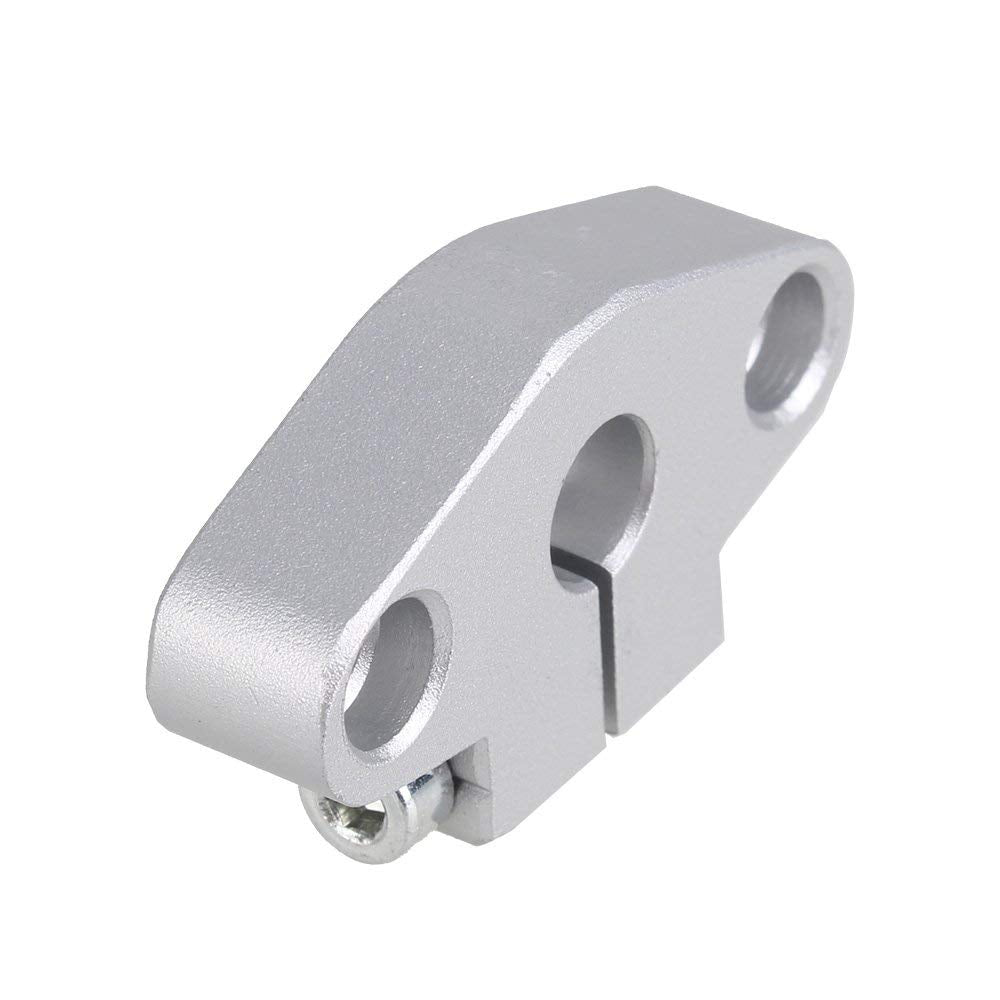

Shaft End Support SF20 (Horizontal - 20mm)

Overview

Ensure the reliability and precision of your CNC machine with the MOKWN Shaft End Support SF20 (Horizontal - 20mm). This robust aluminum end support block is designed to provide secure and stable support for the ends of 20mm linear shafts, or to serve as an intermittent support along the shaft's length. Its anodized aluminum construction offers a perfect blend of lightweight design and exceptional strength, making it an ideal choice for DIY CNC routers, mills, and lathes. Upgrade your machine's stability and performance with this essential component.

Key Features

• Precision-Machined Aluminum: Crafted from high-strength aluminum alloy and finished with a durable anodized coating for corrosion resistance and a sleek appearance.
• Secure Clamping: Equipped with an M5 clamping bolt to firmly lock the shaft in place, preventing unwanted movement or rotation.
• Easy Mounting: Features M6 mounting holes for straightforward and secure attachment to your machine frame or structure.
• Versatile Support: Can be used for end or intermittent support, allowing for flexible design and configuration of your linear motion system.
• Lightweight & Durable: The anodized aluminum construction ensures a lightweight yet robust support that will withstand the demands of continuous operation.

Technical Specifications

• Model: SF20 (Horizontal)
• Shaft Diameter: 20mm
• Clamping Bolt: M5
• Mounting Bolt: M6
• Material: Aluminum (Anodized)

Applications & Use Cases

• CNC Routers: Provides essential support for the linear shafts in your CNC router, ensuring smooth and accurate movement.
• CNC Mills & Lathes: Ideal for securing shafts in milling and lathe machines, enhancing overall rigidity and precision.
• 3D Printers: Can be used to support linear shafts in custom 3D printer builds for improved stability.
• Automation & Robotics: Perfect for various automation projects requiring reliable shaft support in linear motion systems.
• DIY Projects: A must-have for any maker or hobbyist building custom machinery or mechanical systems.

What's Included

• 1x Shaft End Support SF20 (Horizontal)
• Mounting bolts (M6)
• Clamping bolt (M5) pre-installed

Compatibility

• Shaft Diameter: Specifically designed for 20mm linear shafts.
• Mounting Pattern: Features two M6 mounting holes (spacing: 40mm) for easy integration with standard aluminum extrusions or custom brackets.
• Versatile: Compatible with all shaft types, including hardened and precision-ground shafts.

MOKWN Recommendation

For optimal performance and durability, pair the SF20 Shaft End Support with high-quality 20mm linear shafts and bearings from MOKWN. This combination will ensure your CNC or automation project operates with the precision and reliability you expect. Order now and experience the MOKWN difference in quality and value!
