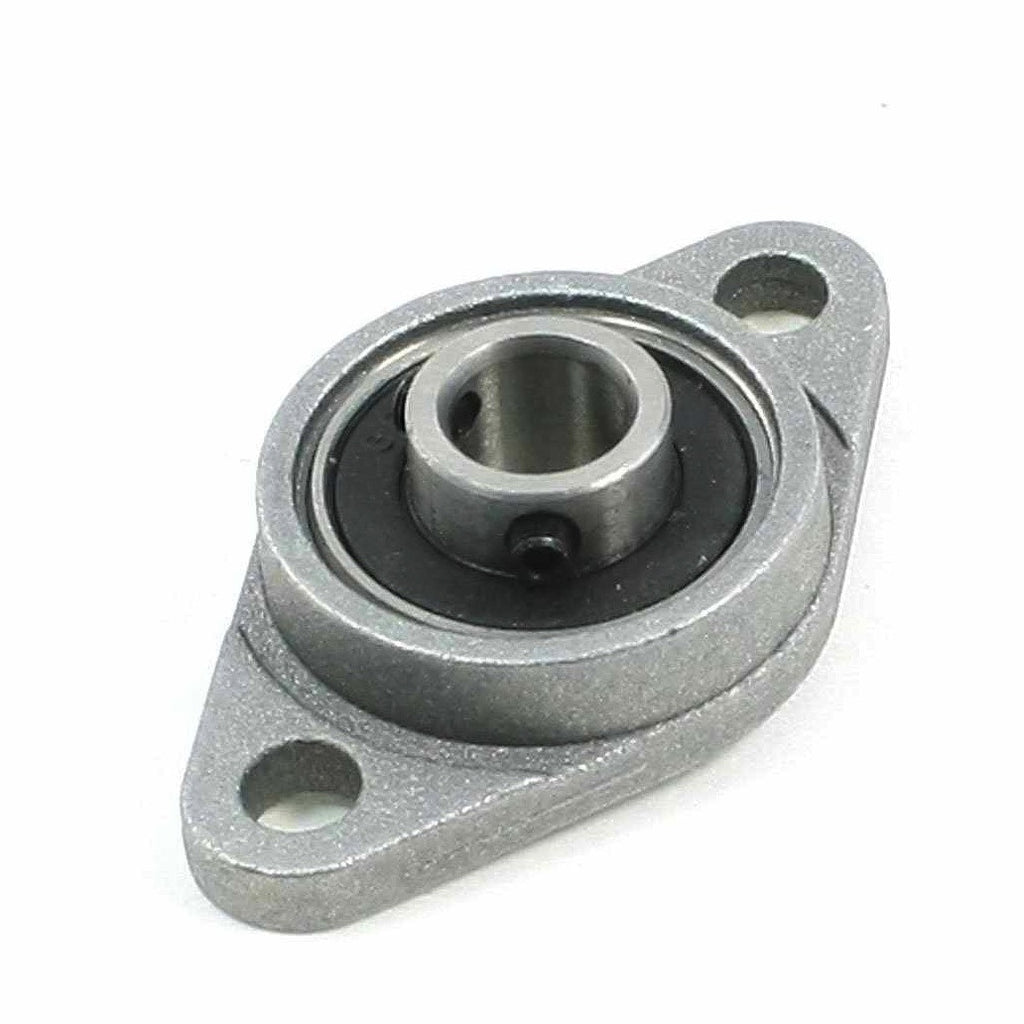

Self-Aligning Flange Bearing (Horizontal-17 mm Dia)

Overview

The KFL003 self-aligning flange bearing is a compact, precision-engineered pillow block bearing designed to support rotating shafts in constrained spaces. With a 17 mm bore, this bearing provides reliable guidance and smooth rotation for lead screws and drive shafts in 3D printers, CNC machines, and other motion control systems. Its self-aligning housing accommodates minor shaft misalignment, reducing stress and wear. The integrated grease fitting allows for easy lubrication, while the set screw locking mechanism ensures a secure shaft connection. This flange bearing is an excellent choice for Z-axis applications where space is limited but performance is critical.

Key Features

• Self-Aligning Housing: Compensates for minor misalignment, extending bearing life and reducing vibration.
• 17 mm Bore: Perfectly sized for common lead screws and shafts used in 3D printers and CNC routers.
• Set Screw Locking: Provides a secure grip on the shaft, preventing slippage during operation.
• Grease Fitting: Allows quick and easy lubrication for smooth, long-lasting performance.
• Compact Flange Design: Saves space, making it ideal for tight installations.
• Durable Construction: Built to withstand the demands of continuous motion applications.

Technical Specifications

• Model: KFL003
• Shaft Size: 17 mm
• Mounting Bolts: M6
• Locking Style: Set screw locking
• Weight: 140 grams
• Housing Type: Flange (horizontal mount)

Applications & Use Cases

• 3D Printers: Perfect for Z-axis lead screw support, ensuring smooth and accurate layer movements.
• CNC Machines: Provides stable support for drive shafts and lead screws in milling machines, routers, and laser cutters.
• Robotics: Ideal for joints and linear actuators where precise shaft alignment is required.
• Automation Equipment: Suitable for conveyor systems, packaging machinery, and other automated processes.
• Hobbyist Projects: Great for DIY CNC builds, camera sliders, and custom motion systems.

What's Included

• 1x KFL003 Self-Aligning Flange Bearing (17 mm bore)

Compatibility

• Compatible with 17 mm diameter shafts and lead screws.
• Mounts using M6 bolts (not included).
• Works with most standard 3D printer and CNC lead screw assemblies, including those with TR8 or similar profiles (verify shaft diameter).

MOKWN Recommendation

For reliable Z-axis motion in your 3D printer or CNC machine, the KFL003 self-aligning flange bearing is a trusted choice. Its self-aligning feature and easy lubrication make it a favorite among makers and engineers. Pair it with a matching lead screw and coupler for a complete motion system. Upgrade your build today with this high-quality bearing from MOKWN.
