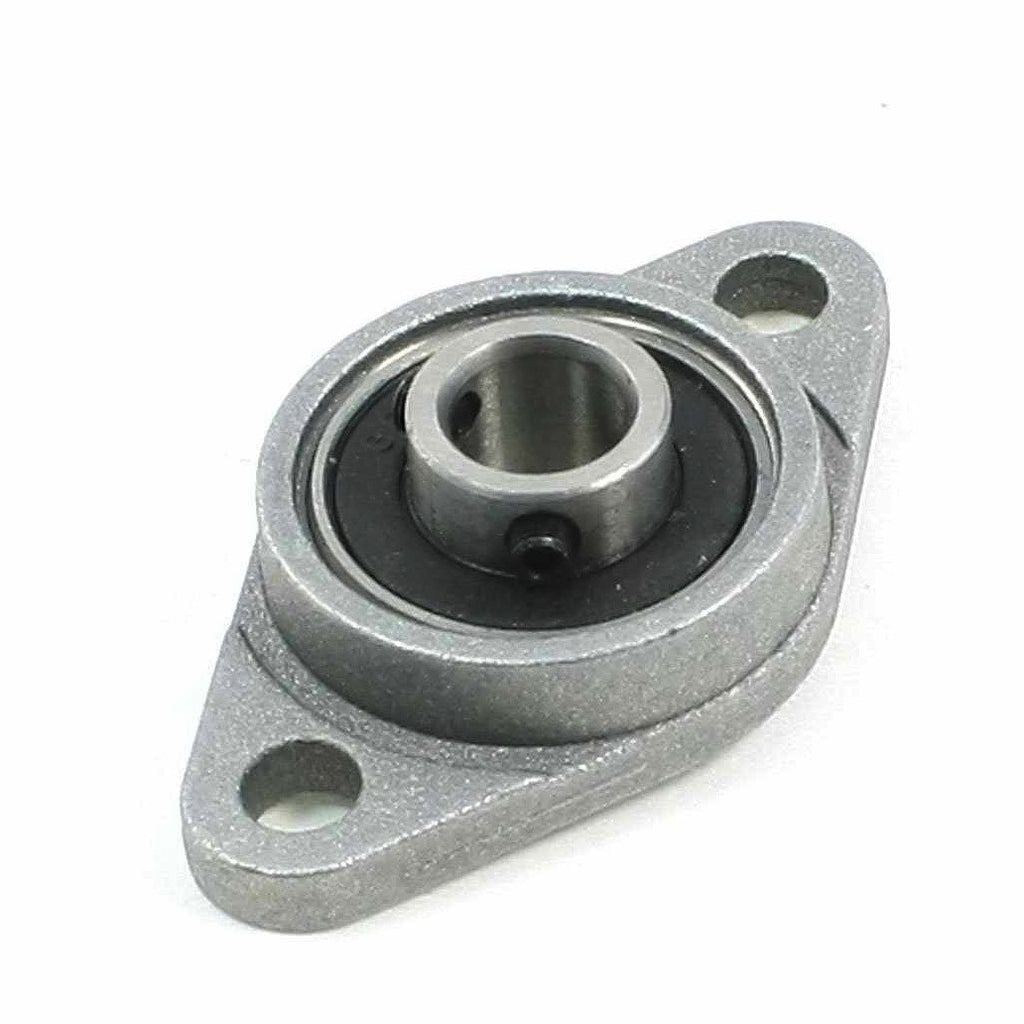

Self-Aligning Flange Bearing (Horizontal- 20mm Dia)

Overview

The Self-Aligning Flange Bearing (Horizontal- 20mm Dia) is a standard-duty flange bearing engineered for applications where the mounting surface is perpendicular to the shaft axis, such as the Z-axis in 3D printers and CNC machines. Featuring a wide inner ring and two set screws, this bearing provides reliable support and easy installation, ensuring smooth linear motion and reduced friction in your mechanical assemblies.

Key Features

• Self-Aligning Design: Compensates for minor misalignments between the shaft and housing, reducing stress and wear.
• Wide Inner Ring: Provides additional support and stability for the shaft.
• Two Set Screws: Secure the bearing to the shaft, preventing slippage and ensuring consistent performance.
• Flange Mounting: Simplifies installation on flat surfaces, perpendicular to the shaft axis.
• Durable Construction: Built to withstand standard-duty loads in demanding applications.

Technical Specifications

• Shaft Size: 20 mm
• Housing Number: KFL004
• Mounting Bolts: M8
• Weight: 230 gm

Applications & Use Cases

• 3D Printers: Ideal for Z-axis lead screw support, ensuring precise layer alignment.
• CNC Machines: Used in linear motion systems for smooth and accurate positioning.
• Robotics: Suitable for joints and actuators requiring reliable shaft support.
• Automation Equipment: Perfect for conveyor systems and other automated machinery.

What's Included

• 1 x Self-Aligning Flange Bearing (Horizontal- 20mm Dia)

Compatibility

• Compatible with 20mm diameter shafts.
• Fits standard KFL004 flange bearing housings.
• Works with M8 mounting bolts (not included).

MOKWN Recommendation

For optimal performance, pair this bearing with a precision-ground shaft and ensure proper alignment during installation. This bearing is an excellent choice for DIY enthusiasts, hobbyists, and professionals looking to upgrade or build reliable mechanical systems.
