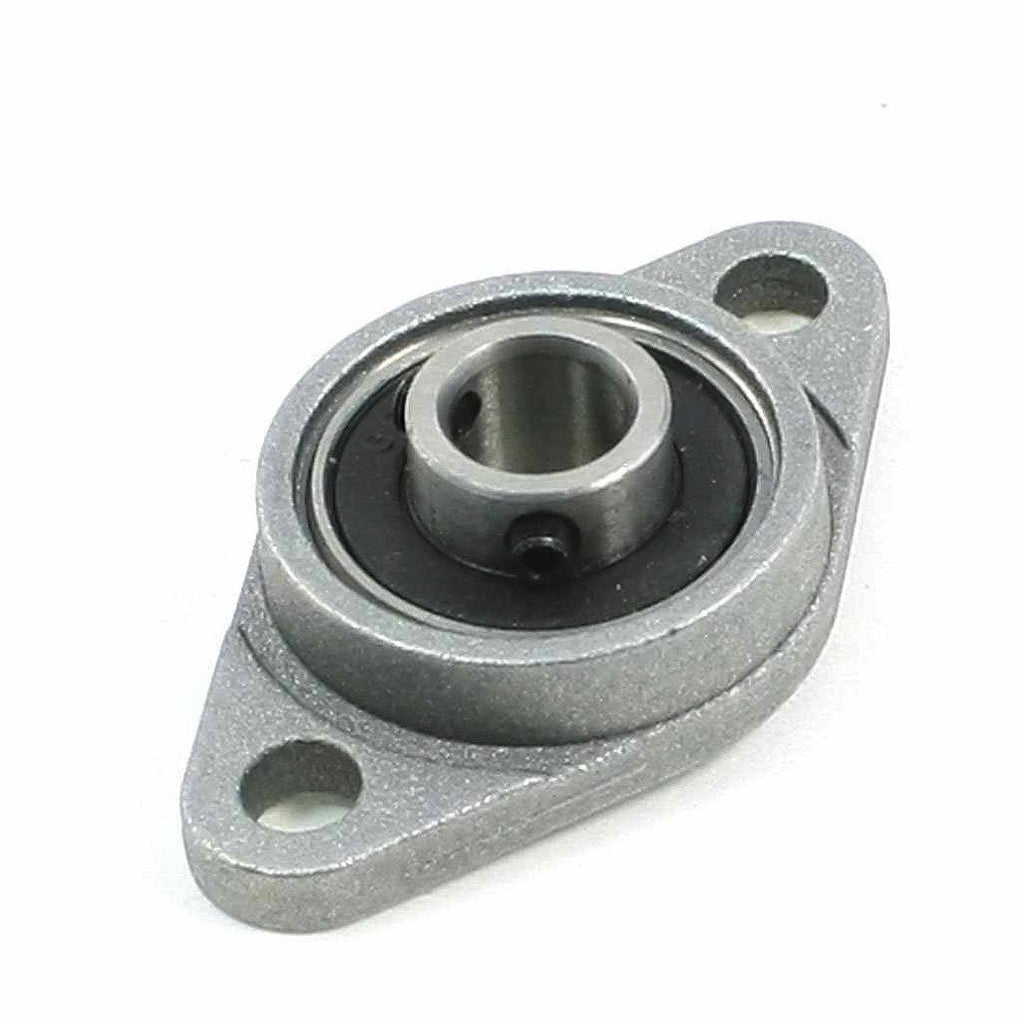

Self-Aligning Flange Bearing (Horizontal- 12mm Dia)

Overview

This Self-Aligning Flange Bearing (Horizontal- 12mm Dia) provides reliable shaft support for applications where the mounting surface is perpendicular to the shaft axis. Engineered for precision and durability, it is a popular choice for 3D printer Z-axis assemblies and CNC machines requiring vertical linear motion. The self-aligning feature compensates for minor misalignments, ensuring smooth operation and reduced wear on your mechanical systems.

Key Features

• Self-Aligning Design: Automatically adjusts to minor misalignments, reducing stress on the shaft and extending the life of your equipment.
• Robust Construction: Built to withstand the demands of continuous operation in 3D printers, CNC machines, and other automation projects.
• Easy Mounting: Includes pre-drilled holes for M6 mounting bolts, ensuring quick and secure installation.
• Smooth Linear Motion: Specifically designed to facilitate smooth vertical movement along a 12mm shaft, perfect for Z-axis applications.
• Compact and Lightweight: Weighs only 80g, minimizing added mass to moving assemblies.

Technical Specifications

| Specification | Value | |---------------|-------| | Weight | 80 gm | | Shaft Size | 12 mm | | Housing Number | KFL001 | | Mounting Bolts | M6 |

Applications & Use Cases

• 3D Printers: Ideal for Z-axis lead screw support, ensuring stable and precise layer stacking.
• CNC Machines: Provides reliable shaft alignment for vertical axes, improving machining accuracy.
• Robotics: Suitable for linear motion systems in robotic arms and automated machinery.
• DIY Projects: Perfect for hobbyists and makers building custom automation or motion control systems.

What's Included

• 1x Self-Aligning Flange Bearing (Horizontal- 12mm Dia)

Compatibility

• Compatible with 12mm diameter shafts.
• Designed to be used with M6 mounting bolts (not included).
• Commonly used in combination with lead screws and linear rods in 3D printers and CNC machines.

MOKWN Recommendation

For optimal performance in your 3D printer or CNC project, pair this self-aligning flange bearing with a high-quality 12mm linear shaft and appropriate lead screw. Ensure that the mounting surface is perpendicular to the shaft axis for best results. This bearing is an excellent choice for both new builds and upgrades, offering reliability and ease of installation.
