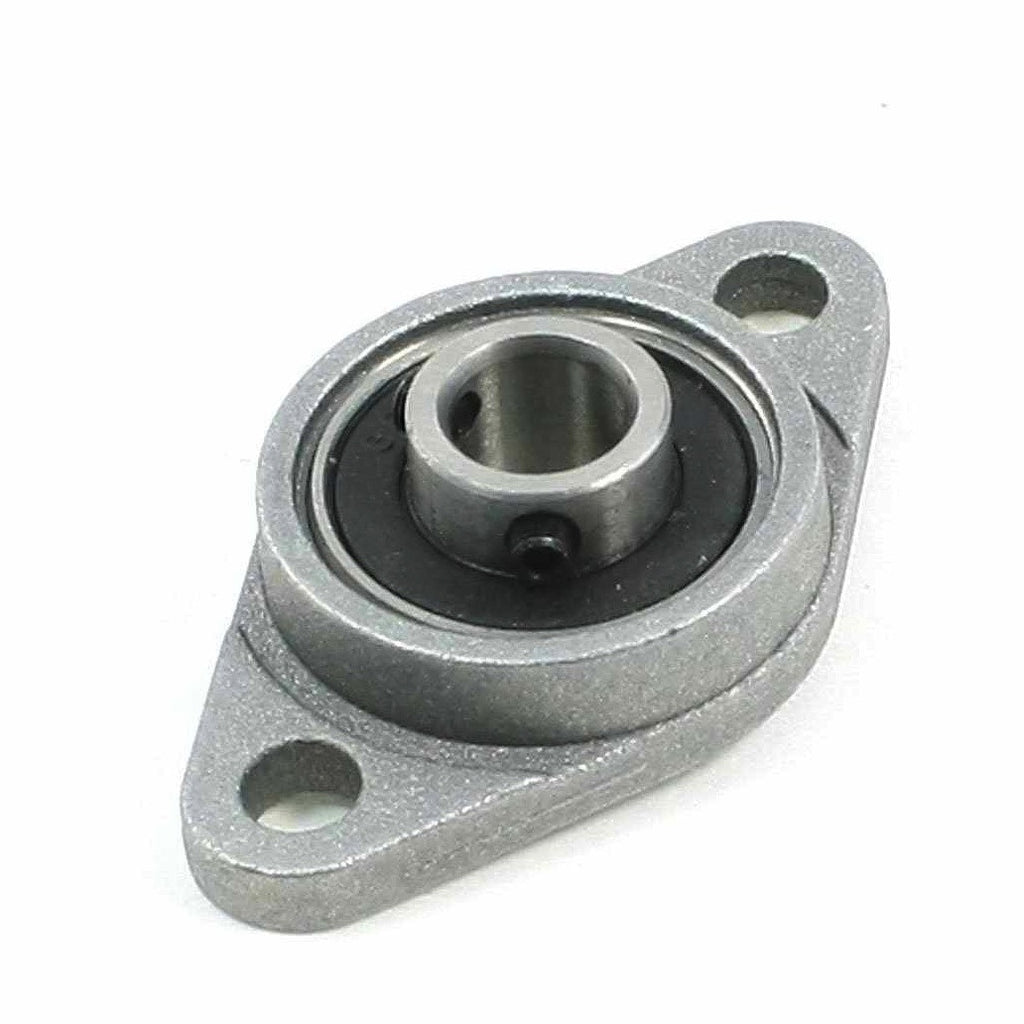

Self-Aligning Flange Bearing (Horizontal- 10mm Dia)

Overview

The Self-Aligning Flange Bearing (Horizontal - 10mm Dia) is a compact, versatile bearing solution designed for applications where space is at a premium. This bearing features a self-aligning spherical insert that automatically compensates for minor shaft misalignments, ensuring smooth operation and extended equipment life. Ideal for 3D printers, CNC machines, and other automation projects, this bearing provides reliable shaft support in horizontal mounting configurations.

Key Features

• Self-Aligning Design: Automatically adjusts to shaft misalignment, reducing wear and noise.
• Compact Horizontal Flange: Saves space in tight installations, perfect for compact machinery.
• Precision 10mm Bore: Fits standard 10mm shafts commonly used in 3D printers and CNC routers.
• Durable Construction: Built to withstand demanding environments and continuous operation.
• Easy Mounting: Flange design with M6 bolt holes for secure and straightforward installation.

Technical Specifications

• Shaft Size: 10 mm
• Mounting Bolts: M6
• Weight: 70 gm
• Mounting Orientation: Horizontal
• Bearing Type: Self-Aligning Flange Bearing

Applications & Use Cases

• 3D Printers: Provides smooth motion in X/Y/Z axes, especially in CoreXY and Cartesian designs.
• CNC Machines: Supports linear shafts in routers, mills, and laser cutters.
• Automation Systems: Ideal for conveyor systems, pick-and-place machines, and other automated equipment.
• Robotics: Suitable for joints and linear guides in robotic arms and gantries.
• DIY Projects: Perfect for hobbyists and makers building custom machines.

What's Included

• 1x Self-Aligning Flange Bearing (Horizontal - 10mm Dia)
• Mounting Screws (M6)

Compatibility

• Compatible with 10mm diameter shafts (linear rods, lead screws, etc.)
• Works with standard M6 mounting bolts
• Suitable for use in a wide range of machinery and equipment from various manufacturers

MOKWN Recommendation

This bearing is an excellent choice for makers and engineers who need a reliable, space-saving solution for shaft support. Its self-aligning capability reduces installation time and maintenance, making it a top pick for 3D printing and CNC applications. At MOKWN, we recommend this bearing for projects where precision and durability are paramount. Order yours today and enhance your machine's performance!
