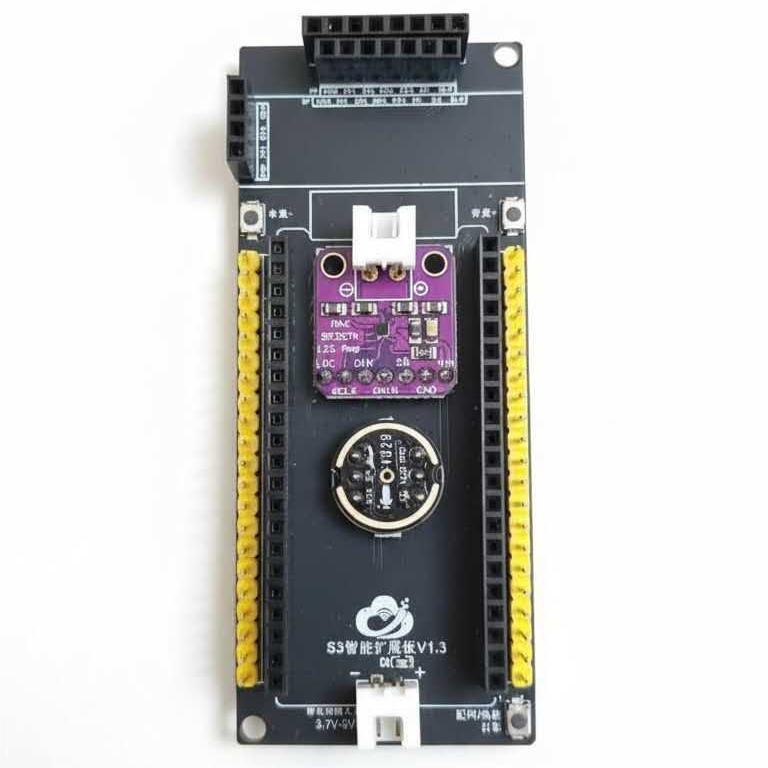

S3 Intelligent Expansion Board

Overview

Transform your ESP32-S3 development board into a full-featured IoT and audio powerhouse with the S3 Intelligent Expansion Board. This carefully engineered expansion board adds essential audio input/output and robust network connectivity to your ESP32-S3, making it the perfect foundation for voice-controlled smart home devices, connected audio systems, and advanced IoT projects. Whether you're a hobbyist, a student, or a professional engineer, this board simplifies your design and accelerates your prototyping.

Key Features

• Integrated Audio Codec: High-quality audio input (microphone) and output (speaker/headphone) for voice recognition, audio playback, and interactive projects.
• Reliable Network Connectivity: Stable Wi-Fi and Bluetooth via the ESP32-S3 module, ensuring seamless communication for IoT applications.
• Plug-and-Play Design: Easy to connect to standard ESP32-S3 development boards – no complex wiring required.
• Compact and Robust: Space-saving layout with high-quality components, designed for long-term reliability.
• Flexible Power Options: Powered directly from the main board or external supply, with proper voltage regulation.
• Developer-Friendly: Well-documented pinout and compatibility with popular development environments (Arduino, ESP-IDF).

Technical Specifications

• Compatible With: ESP32-S3 DevKit boards (standard pinout)
• Audio Codec: Integrated I2S audio codec (e.g., ES8311 or similar) – supports microphone input and speaker/headphone output
• Network: Wi-Fi 802.11 b/g/n, Bluetooth 5 (LE) – provided by the ESP32-S3 module
• Interfaces: I2S for audio, I2C for control, GPIO, UART, and power pins
• Power Input: 5V DC (from USB or external supply), 3.3V logic
• Dimensions: Compact form factor (approx. 60 x 40 mm) – designed to fit standard ESP32-S3 boards
• Operating Temperature: -20°C to +70°C

Applications & Use Cases

• Smart Home Voice Assistant: Build your own wake-word triggered assistant with microphone and speaker.
• IoT Sensor Node: Combine audio alerts with sensor data for a complete monitoring solution.
• Interactive Robotics: Add voice commands and sound feedback to your robot projects.
• Audio Streaming Device: Create a simple Wi-Fi audio player or internet radio.
• Educational Projects: Perfect for teaching embedded systems, IoT, and audio processing.

What's Included

• 1x S3 Intelligent Expansion Board
• (Note: ESP32-S3 development board and audio peripherals (microphone/speaker) are NOT included – sold separately)

Compatibility

• Works with any standard ESP32-S3 development board that exposes the common pinout (e.g., ESP32-S3-DevKitC-1, ESP32-S3-WROOM-1).
• Compatible with Arduino IDE, ESP-IDF, and MicroPython environments.
• Ensure your main board has the correct pinout – check the documentation for pin mapping.

MOKWN Recommendation

At MOKWN, we recommend the S3 Intelligent Expansion Board for makers who want to add audio and network capabilities without the hassle of complex wiring. It's an excellent choice for rapid prototyping and educational use. Pair it with a reliable ESP32-S3 board from our store to get started right away. For any questions, our Cairo-based support team is here to help you get your project running smoothly.
