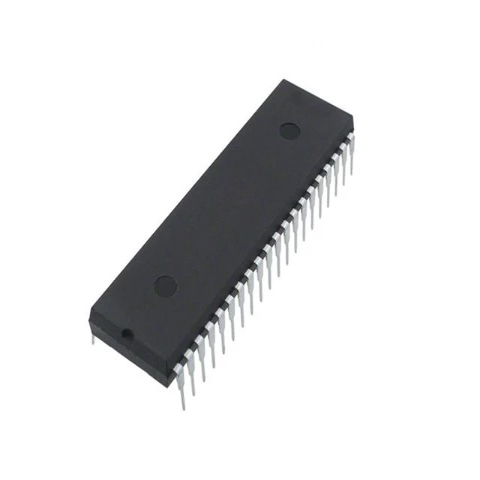

ATMEGA32AU -8-bit AVR

Overview

The ATMEGA32AU is a high-performance, low-power 8-bit microcontroller from Microchip (formerly Atmel), built on the advanced AVR enhanced RISC architecture. It strikes an ideal balance between processing power, memory capacity, and energy efficiency, making it one of the most versatile microcontrollers for embedded systems, robotics, and educational projects. With 32 KB of Flash memory, 2 KB SRAM, and 1 KB EEPROM, it provides ample space for complex programs and data storage. Its ability to execute most instructions in a single clock cycle ensures a maximum throughput of 16 MIPS at 16 MHz, delivering responsive and efficient performance for demanding applications.

Key Features

• High-Performance AVR Core: Enhanced RISC architecture with 131 powerful instructions, most executed in a single clock cycle.
• Large Memory Footprint: 32 KB In-System Programmable Flash, 2 KB SRAM, and 1 KB EEPROM for robust application development.
• Fast Throughput: Achieves up to 16 MIPS at 16 MHz, ensuring rapid data processing.
• Low Power Consumption: Ideal for battery-powered and energy-efficient designs.
• Durable Data Retention: Retains data for 20 years at 85°C and 100 years at 25°C, guaranteeing long-term reliability.
• Flexible I/O Options: Available in 40-pin PDIP and 44-pin TQFP/MLF packages, offering design flexibility.
• Rich Peripheral Set: Includes timers, USART, SPI, TWI (I2C), ADC, and more, enabling diverse applications.

Technical Specifications

• Architecture: AVR enhanced RISC
• Flash Memory: 32 KB (In-System Programmable)
• SRAM: 2 KB
• EEPROM: 1 KB
• Maximum Throughput: 16 MIPS at 16 MHz
• Instruction Cycle: Most instructions executed in 1 clock cycle (2-cycle multiplier)
• Working Registers: 32 x 8-bit general-purpose registers
• Operating Voltage: 2.7V - 5.5V
• Pin Count: 40 (PDIP) / 44 (TQFP/MLF)
• Data Retention: 20 years at 85°C / 100 years at 25°C
• Temperature Range: -40°C to +85°C (industrial)

Applications & Use Cases

• Robotics: Motor control, sensor interfacing, and autonomous navigation systems.
• Embedded Systems: Home automation, IoT nodes, and industrial control units.
• Educational Projects: Ideal for learning AVR programming and microcontroller fundamentals.
• Prototyping: Rapid development of electronic prototypes and proof-of-concepts.
• Data Acquisition: ADC channels for sensor data logging and monitoring.
• Communication Interfaces: Implement USART, SPI, and I2C protocols for device communication.

What's Included

• 1x ATMEGA32AU Microcontroller (choose package variant: PDIP or TQFP)
• Note: Programming hardware, cables, and other accessories are sold separately.

Compatibility

• Programming: Compatible with AVR ISP, JTAG, and high-voltage programming methods.
• Development Tools: Works with Atmel Studio, Arduino IDE (with appropriate board definitions), and other AVR toolchains.
• Breadboard-Friendly: The PDIP package fits standard breadboards for easy prototyping.
• Replacement: Drop-in upgrade for ATmega32 and compatible with many AVR-based projects.

MOKWN Recommendation

For Egyptian makers, students, and engineers, the ATMEGA32AU is a reliable and cost-effective choice. Its robust feature set and low power consumption make it perfect for a wide range of projects. Whether you're building your first robot or a sophisticated industrial controller, this microcontroller offers the performance and flexibility you need. We recommend pairing it with a USBasp programmer and quality breadboard jumper wires for a seamless development experience. Order today from MOKWN and bring your ideas to life!
