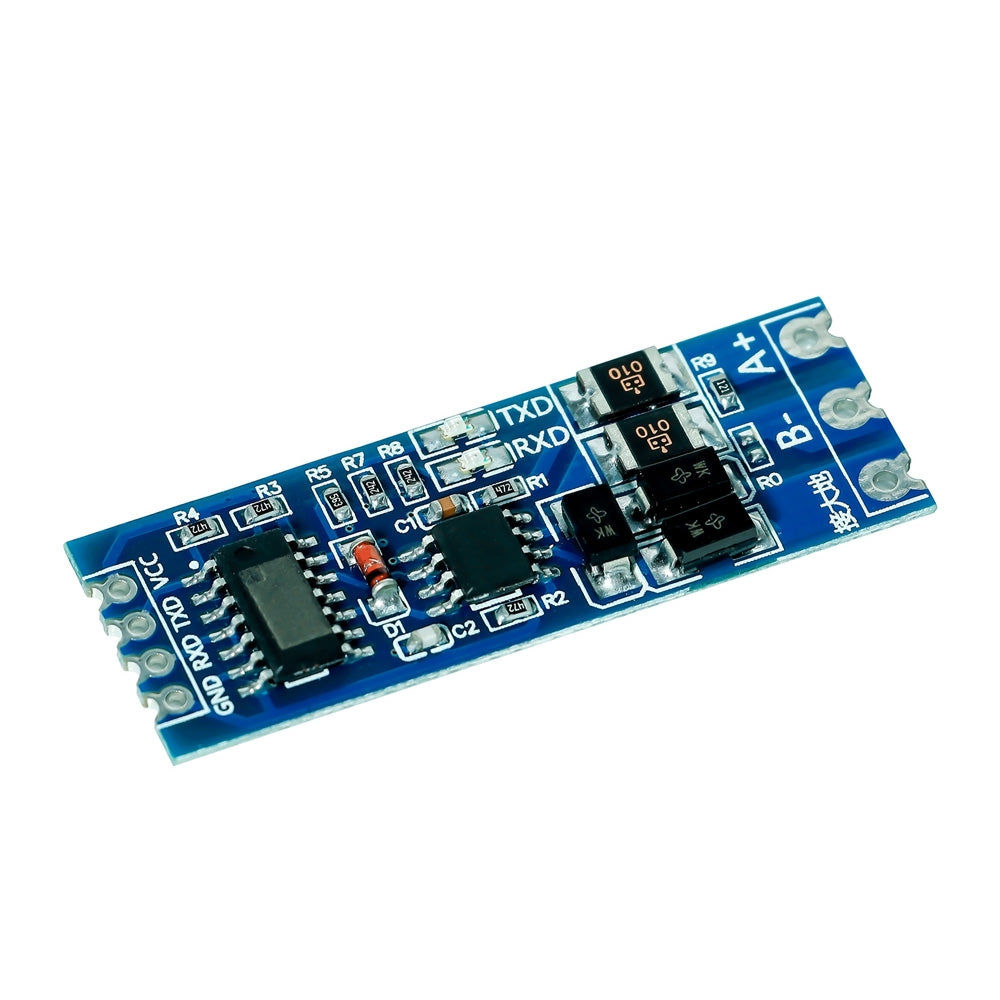

RS485 to TTL Converter (Two Way Converter)

Overview

The RS485 to TTL Converter is a compact and reliable two-way communication module that bridges the gap between TTL-level microcontrollers (like Arduino, ESP32, STM32) and industrial RS485 networks. It enables long-distance, noise-immune data transmission up to 800 meters, making it an essential tool for industrial automation, building management systems, and multi-node sensor networks. With support for 3.3V and 5V logic, this converter integrates seamlessly into both new and existing projects.

Key Features

• Two-Way Communication: Supports both transmit and receive, enabling full-duplex or half-duplex operation.
• Wide Voltage Compatibility: Works with 3.3V and 5V TTL logic levels, perfect for modern microcontrollers.
• Long-Distance Transmission: Stable data transfer up to 800 meters, ideal for industrial setups.
• Robust Noise Immunity: RS485 standard ensures reliable communication in electrically noisy environments.
• Plug-and-Play: Simple wiring with screw terminals or headers; no complex configuration required.

Technical Specifications

• Working Voltage: 3.3V to 5V DC
• Transmission Distance: Up to 800 meters
• Interface: TTL (TX, RX) to RS485 (A, B)
• Data Rate: Supports standard baud rates up to 115200 bps (typical)
• Direction Control: Automatic or via DE/RE pins (depending on variant)
• Connector: Screw terminals and pin headers

Applications & Use Cases

• Industrial Automation: Connect PLCs, sensors, and actuators over long distances.
• Home & Building Automation: Control lighting, HVAC, and security systems reliably.
• Multi-Node Sensor Networks: Daisy-chain multiple sensors on a single RS485 bus.
• Robotics: Enable communication between a central controller and remote motor drivers.
• Data Logging: Transfer data from remote field devices to a central PC or server.

What's Included

• 1x RS485 to TTL Converter Module
• 1x User Manual (quick reference)
• (Screw terminals and headers are pre-soldered)

Compatibility

• Microcontrollers: Arduino (Uno, Mega, Nano), ESP32, ESP8266, Raspberry Pi (via GPIO), STM32, PIC, and any TTL-level UART device.
• Software: Works with standard UART libraries (e.g., SoftwareSerial, HardwareSerial).
• RS485 Devices: Compatible with Modbus RTU, DMX, and other RS485 protocols.

MOKWN Recommendation

For Egyptian makers, students, and engineers, the RS485 to TTL Converter is a must-have for any project requiring reliable long-distance communication. Whether you're building an industrial monitoring system or a smart home network, this module ensures stable data transfer even in harsh environments. Pair it with a USB-to-RS485 adapter for easy PC integration. Order now and take your projects to the next level!
