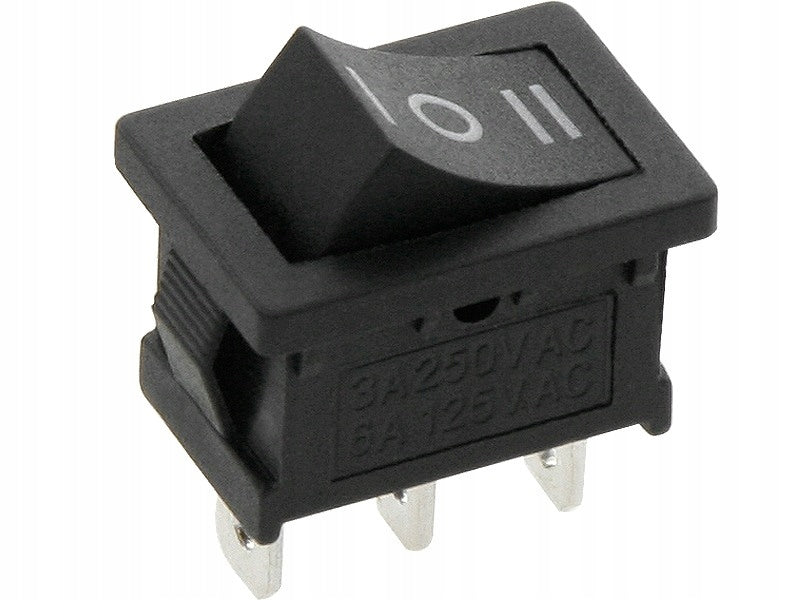

Rocker Switch 3 Pins 3 Position ON/Off/ON

Overview

Meet the QY601 Rocker Switch, a robust 3-pin, 3-position (ON-OFF-ON) switch designed for reliable and intuitive control in a wide range of electronic projects. Whether you're building a custom control panel, robotics project, or power distribution system, this switch provides a clear and tactile way to manage power and signal flow. Its compact design and standard mounting dimensions make it a versatile choice for hobbyists and professionals alike.

Key Features

• 3-Position Operation: Clearly defined ON-OFF-ON positions for flexible circuit control.
• Reliable Switching: Rated at 6A/250V, capable of handling moderate power loads.
• Standard 3-Pin Terminal: Easy to solder or connect with standard connectors.
• Compact Design: Fits standard panel cutouts for straightforward installation.
• Durable Construction: Built to withstand repeated use and typical environmental conditions.

Technical Specifications

• Model: QY601
• Switch Type: Rocker Switch
• Positions: 3 (ON-OFF-ON)
• Terminals: 3 pins
• Electrical Rating: 6A / 250V AC
• Contact Configuration: SPST (Single Pole Single Throw) with center off
• Mounting: Panel mount

Applications & Use Cases

• Control Panels: Ideal for custom control boxes, CNC machines, and 3D printers.
• Power Switching: Suitable for switching AC loads like lights, motors, or small appliances.
• Robotics: Use as a manual override or mode selector in robotic systems.
• Automotive: Can be used for auxiliary lighting, fans, or other 12V DC applications (check current rating).
• DIY Projects: Perfect for home automation, audio equipment, and other maker projects.

What's Included

• 1x Rocker Switch QY601 (ON-OFF-ON) with 3 pins

Compatibility

• Works with standard panel cutouts (approx. 20mm x 30mm).
• Compatible with 6.3mm quick-connect terminals or soldered connections.
• Suitable for low-voltage DC and AC applications up to 250V AC.

MOKWN Recommendation

For Egyptian makers and engineers, the QY601 Rocker Switch is a dependable choice for projects requiring a simple yet effective switching solution. Its ON-OFF-ON capability allows for versatile control configurations, and the 6A rating ensures it can handle most hobbyist and light industrial loads. We recommend pairing it with appropriate wire gauges and ensuring your current draw does not exceed the switch's rating for optimal performance and safety.
