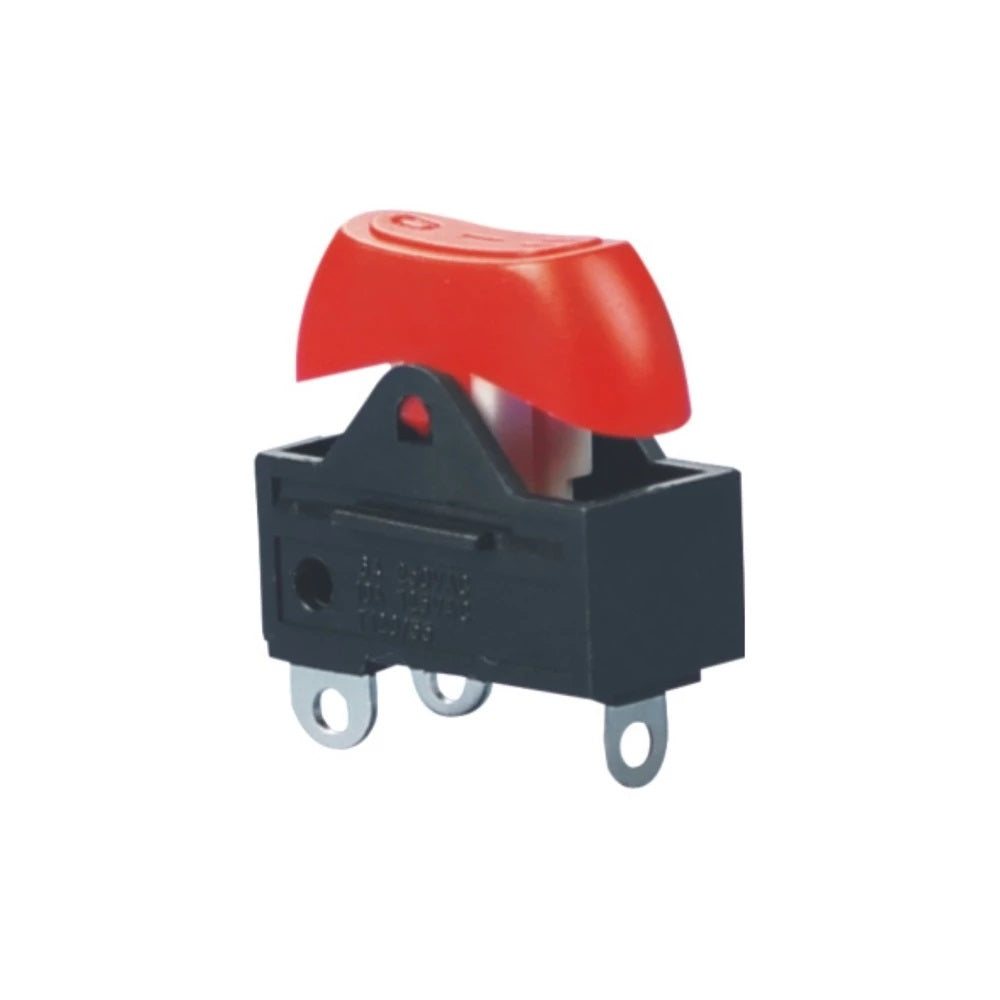

Rocker Switch - 3 Pin SPDT COC

Overview

This compact SPDT (Single Pole Double Throw) rocker switch is a reliable and versatile component for a wide range of electronic projects. Designed to handle high switching currents in a small form factor, it is perfect for controlling power, switching signals, or toggling between two circuits. The switch features a robust Nylon 66 housing and a smooth rocker action, ensuring durability and ease of use.

Key Features

• SPDT Configuration: Switch between two circuits with a single rocker action.
• High Current Rating: Handles up to 10A at 125VAC or 6A at 250VAC, suitable for many power applications.
• Compact and Durable: Nylon 66 housing provides strength and resistance to wear.
• Long Mechanical Life: Rated for 10,000 cycles, ensuring reliable long-term operation.
• Wide Operating Temperature: Functions from -25°C to +85°C, suitable for various environments.

Technical Specifications

• Contact Configuration: SPDT (Single Pole Double Throw)
• Rating: 10A 125VAC / 6A 250VAC
• Housing Material: Nylon 66
• Mechanical Life: 10,000 cycles
• Operating Temperature: -25°C to +85°C

Applications & Use Cases

• Power Control: Use as a main power switch for DIY electronics, small appliances, and power supplies.
• Signal Switching: Route signals in audio, lighting, or communication projects.
• Mode Selection: Toggle between different operating modes in embedded systems.
• Robotics: Control motor direction or power distribution in robotic projects.
• Educational Projects: Ideal for STEM labs and university electronics courses.

What's Included

• 1x Rocker Switch - 3 Pin SPDT (COC)

Compatibility

• Compatible with standard 3-pin switch footprints.
• Works with common wire gauges (22-16 AWG) using solder or crimp connectors.
• Suitable for panel mounting in enclosures with a standard cutout.

MOKWN Recommendation

For makers and engineers in Egypt, this SPDT rocker switch is an essential component for any project requiring reliable switching. Its high current rating and compact size make it a versatile choice. We recommend pairing it with appropriate wire connectors and a panel mount for secure installation. Whether you're building a power supply, a robot, or an educational demo, this switch delivers performance and durability.
