Pluggable Terminal Block 3 pin

Overview

Elevate your electrical and electronic projects with the MOKWN Pluggable Terminal Block 3-Pin. Engineered for secure, reliable, and tool-free connections, this compact connector is a must-have for a wide range of power and signal applications. Whether you're working on industrial control systems, DIY electronics, or prototyping, this pluggable terminal block ensures a stable and maintainable connection, simplifying wiring and reducing downtime.

Key Features

• Secure Connections: Screw-clamp mechanism ensures a firm grip on wires, preventing accidental disconnections.
• High Current & Voltage Rating: Rated for 10A and 300V, suitable for various power and signal applications.
• Durable Construction: Brass clamps with nickel plating and zinc-plated steel screws resist corrosion and ensure long-term reliability.
• Compact Pitch: 5mm pitch saves space on PCBs and in enclosures, allowing for dense wiring layouts.
• Wide Wire Range: Accepts 22-14 AWG (2.5mm²) wires, accommodating a variety of cable sizes.
• Easy Maintenance: Pluggable design allows for quick disconnection and reconnection, making troubleshooting and upgrades effortless.
• High Insulation Resistance: 5000MΩ/DC1000V ensures minimal leakage and safe operation.
• Withstanding Voltage: Withstands AC 2000V for 1 minute, providing robust safety margins.

Technical Specifications

• Pitch: 5 mm
• Rated Current: 10A (18A max)
• Rated Voltage: 300V (250V for some applications)
• Wire Range: 22-14 AWG (2.5mm²)
• Clamp Material: Brass, Nickel plated
• Screw Material: M2.5 Steel, Zinc plated
• Pin Header Material: Brass, Tin plated
• Temperature Range: -40°C to +105°C (typical)
• Contact Resistance: 20mΩ
• Withstanding Voltage: AC 2000V/1 Min
• Insulation Resistance: 5000MΩ/DC1000V

Applications & Use Cases

• Industrial Control Panels: Ideal for PLCs, sensors, and actuators in automation systems.
• Power Supplies: Connect AC/DC power inputs and outputs securely.
• DIY Electronics: Perfect for hobbyist projects, custom PCBs, and prototyping.
• LED Lighting: Reliable connections for LED drivers and lighting fixtures.
• HVAC Systems: Used in thermostats, controllers, and motor connections.
• Robotics: Suitable for motor drivers, sensors, and control boards.

What's Included

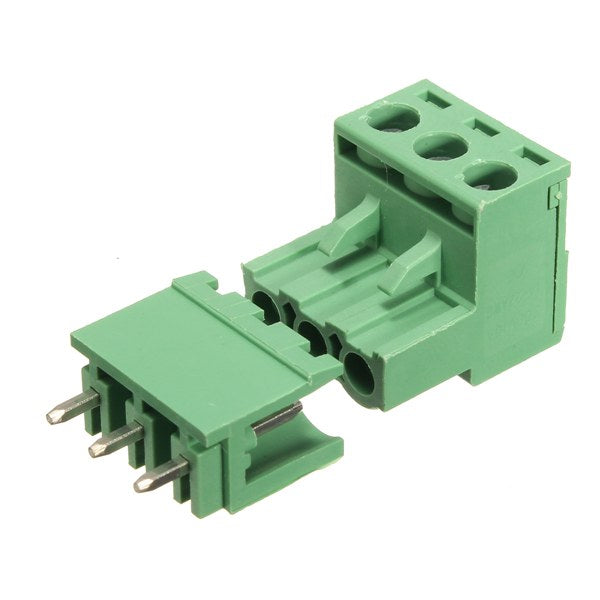

• 1x Pluggable Terminal Block 3-Pin (female socket with screw terminals)
• 1x Mating Pin Header (male, 3-pin, 5mm pitch)

Compatibility

• Works with any standard 5mm pitch pluggable terminal block system.
• Compatible with MOKWN's range of PCB mount headers and other 5mm pitch connectors.
• Suitable for use with wires from 22 to 14 AWG (0.5 to 2.5 mm²).

MOKWN Recommendation

For a dependable and versatile connection solution, the Pluggable Terminal Block 3-Pin is an excellent choice. Its robust construction and high electrical ratings make it suitable for both professional and hobbyist applications. We recommend pairing it with our high-quality PCB mount headers and using proper wire stripping (6-7mm) for optimal performance. For higher current applications, consider our 5.08mm pitch terminal blocks. Order now and experience MOKWN's commitment to quality and customer satisfaction.
