PCB Stacking Terminal Block 3pin

Overview

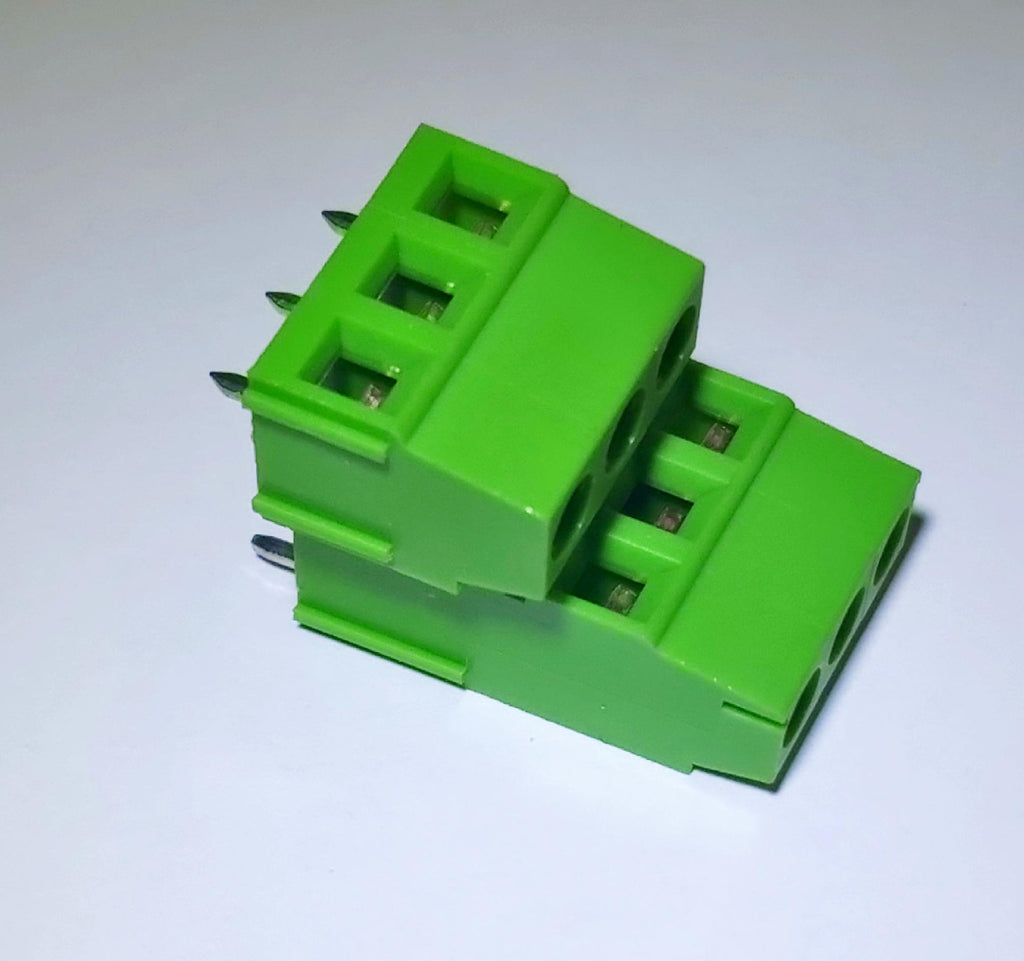

The PCB Stacking Terminal Block 3-Pin is a compact and versatile solution for making reliable electrical connections on printed circuit boards. Its space-saving design allows you to stack multiple blocks vertically, making it ideal for projects where board real estate is at a premium. Whether you're building a prototype, a permanent installation, or a custom control panel, this terminal block offers a secure and organized way to manage wiring.

Key Features

• Space-Saving Design: Stack blocks vertically using dovetail joints to maximize board space.
• Secure Connections: Screw-type clamps with nickel-plated brass ensure a firm grip on wires.
• Durable Construction: High-quality materials resist corrosion and wear for long-lasting performance.
• Easy to Assemble: Dovetail joints allow for quick and simple stacking without extra hardware.
• Clear Identification: Each pin is clearly marked for easy wiring and troubleshooting.

Technical Specifications

• Pitch: 5 mm
• Rated Current: 10A to 18A (depending on configuration)
• Rated Voltage: 300V to 250V AC/DC
• Contact Resistance: 20mΩ
• Withstanding Voltage: 1000M/DC1000V
• Insulation Resistance: 5000M/DC1000V
• Clamp Material: Brass, Nickel-plated
• Screw Material: M2.5 Steel, Zinc-plated
• Pin Header Material: Brass, Tin-plated

Applications & Use Cases

• Prototyping: Ideal for breadboard-to-PCB transitions and temporary connections.
• Industrial Control: Use in PLCs, motor controllers, and power distribution units.
• DIY Electronics: Perfect for Arduino, Raspberry Pi, and other maker projects.
• LED Lighting: Connect LED drivers, strips, and power supplies securely.
• Power Supplies: Terminate AC/DC power inputs and outputs safely.

What's Included

• 1x PCB Stacking Terminal Block 3-Pin
• (No additional hardware required; screws are pre-installed)

Compatibility

• PCB Thickness: Suitable for standard PCBs (1.6mm typical).
• Wire Gauge: Accepts 22 AWG to 14 AWG (0.5 mm² to 2.5 mm²).
• Stacking: Multiple blocks can be joined using the dovetail design.

MOKWN Recommendation

This terminal block is a must-have for any electronics enthusiast or professional. Its stacking capability is a game-changer for compact designs, and the quality ensures reliable connections. We highly recommend it for educational kits, sensor networks, and any project where space is limited. Order now and experience the convenience of organized, space-saving wiring!
