Motor D2822 2822

Overview

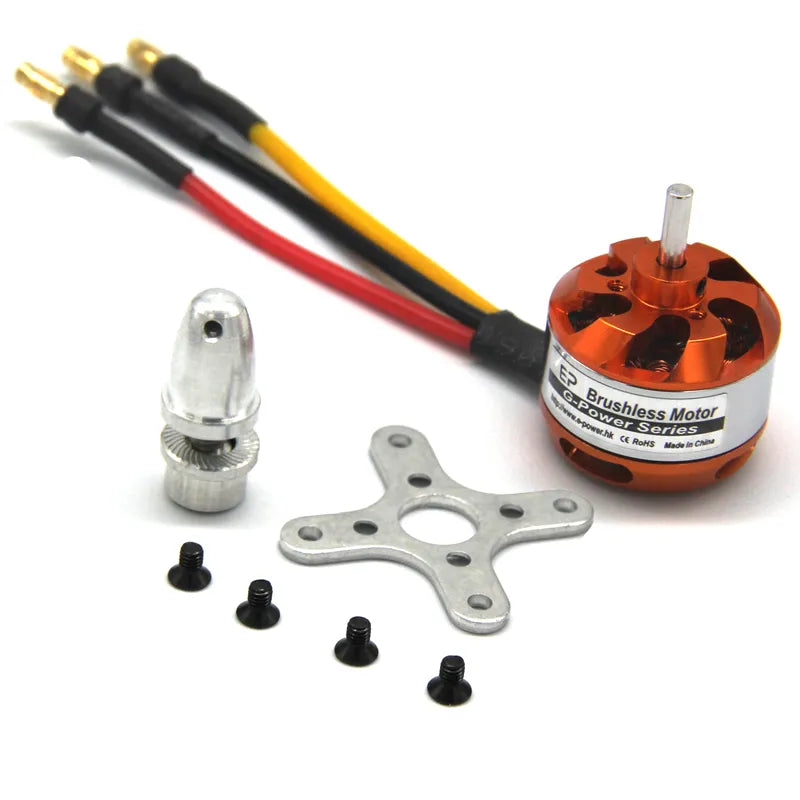

Unleash the power of flight with the MOKWN D2822 2200KV Brushless Outrunner Motor. Engineered for RC enthusiasts, this compact yet potent motor delivers exceptional thrust and efficiency for a wide range of model aircraft. Whether you're building a lightweight trainer, a sporty aerobatic plane, or a high-speed quadcopter, the D2822 provides the reliable performance you need to take your projects to new heights.

Key Features

• High KV Rating (2200KV): Delivers high RPM for fast and responsive performance.
• Outrunner Design: Provides high torque and efficient cooling without additional gearboxes.
• Low Internal Resistance (0.033Ω): Minimizes energy loss, maximizing efficiency and battery life.
• Lightweight Construction: Weighs only 50g, keeping your model agile and responsive.
• Durable Build: High-quality materials ensure longevity and reliable operation.
• Versatile Compatibility: Works with a wide range of propellers and 2-3S LiPo batteries.

Technical Specifications

• KV Rating: 2200KV
• Max Power: 342W
• Max Pull: 960g
• Battery Compatibility: 2-3S LiPo
• ESC Recommendation: 40A
• Internal Resistance: 0.033Ω
• Shaft Diameter: 3.175mm
• Shaft Length: 37mm
• Motor Diameter: 28mm
• Motor Length: 26mm
• Weight: 50g
• Propeller Options: 12x6/10x7, 11x7/10x5, 9x4.7/7x4, 7x3/7x4

Applications & Use Cases

• RC Airplanes: Perfect for trainers, sport planes, and scale models.
• Multirotors: Ideal for small to medium-sized quadcopters and drones.
• Flying Wings: Great for high-speed, agile flying wings.
• Educational Robotics: Excellent for STEM projects and robotics competitions.

What's Included

• 1x D2822 2200KV Brushless Outrunner Motor
• 1x Propeller Adapter
• 1x Mounting Screws Set
• 1x Bullet Connectors (pre-soldered)

Compatibility

• ESCs: Recommended 40A brushless ESC (compatible with 30A-50A)
• Batteries: 2S or 3S LiPo
• Propellers: As listed above, choose based on your application
• Radio Systems: Any standard RC transmitter/receiver

MOKWN Recommendation

For optimal performance, pair the D2822 with a 40A ESC and a 3S LiPo battery. Choose a propeller based on your model type: smaller props (7x3/7x4) for high-speed applications, larger props (12x6/10x7) for maximum thrust and efficiency. Always ensure proper motor mounting and balance for safe and enjoyable flights.
