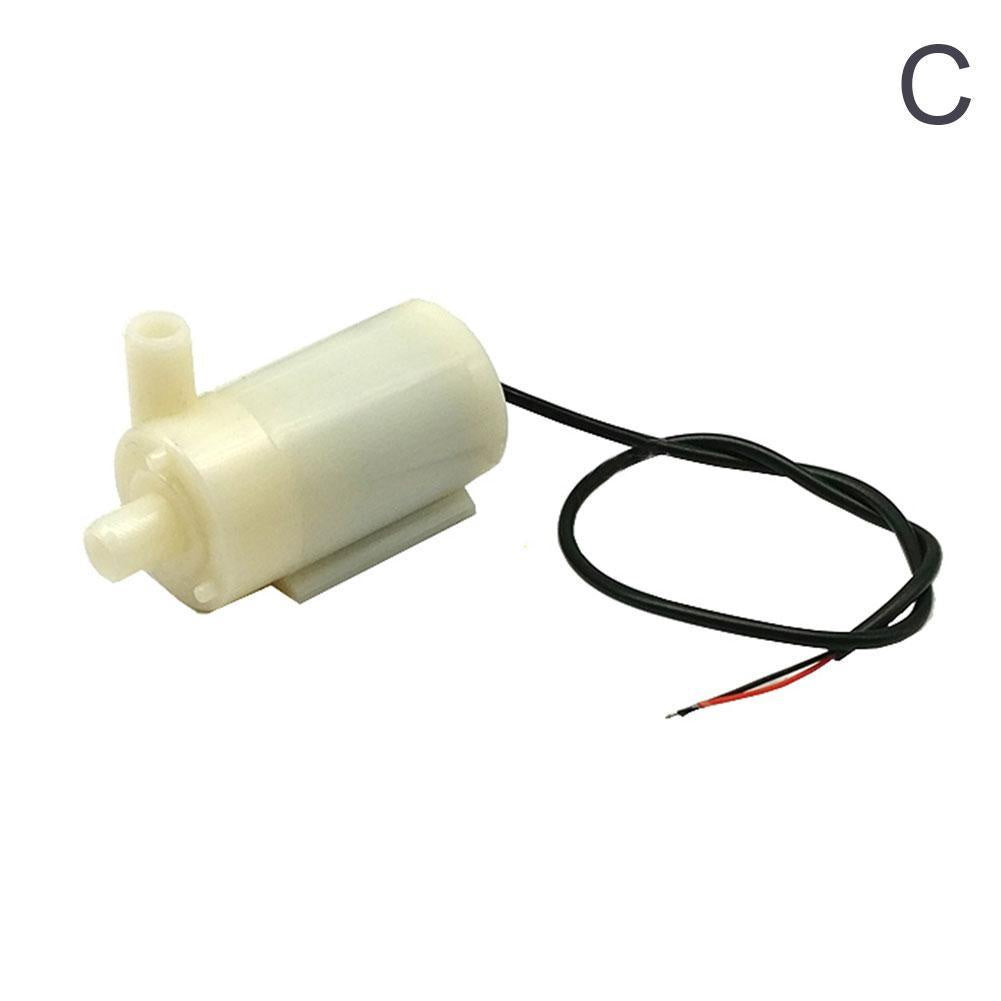

Mini water pump

Overview

Introducing the Mini Water Pump – a compact and efficient DC pump designed for a wide range of low-flow applications. Whether you're building a small water circulation system, a robotics project, or a miniature irrigation setup, this pump delivers reliable performance in a tiny footprint. Its low power consumption and versatile voltage range make it an ideal choice for hobbyists, students, and engineers working on embedded systems and DIY projects.

Key Features

• Compact & Lightweight: At just 33mm high and 24mm in diameter, this pump fits easily into tight spaces.
• Low Power Consumption: Draws only 0.4–1.5W, making it perfect for battery-powered or solar-powered projects.
• Wide Voltage Range: Operates from 2.5V to 6V DC, giving you flexibility in power supply selection.
• Decent Flow Rate: Delivers 80–120 L/H, sufficient for small circulation and transfer tasks.
• Maximum Lift: Can lift water up to 110cm, enabling use in small fountains or vertical setups.
• Durable Construction: Built to handle continuous operation in clean water environments.

Technical Specifications

| Specification | Value | |---------------|-------| | Power | 0.4–1.5W | | DC Voltage | 2.5–6V | | Working Current | 130–220mA | | Flow Rate | 80–120 L/H | | Maximum Lift | 40–110cm (15.75"–43.4") | | Length | approx. 45mm (1.8") | | Height | approx. 33mm (1.30") | | Diameter | approx. 24mm (0.95") | | Inside Diameter of Water Outlet | approx. 4.7mm (0.18") | | Outside Diameter of Water Outlet | approx. 7.5mm (0.3") |

Applications & Use Cases

• Robotics: Cooling systems, liquid transfer, or small-scale hydraulic mechanisms.
• Hobby Projects: Miniature fountains, aquariums, or water features.
• Small-Scale Irrigation: Drip irrigation for potted plants or small gardens.
• Embedded Systems: Integration into IoT devices requiring water circulation.
• Education: Perfect for science fair projects and school demonstrations.

What's Included

• 1x Mini Water Pump (DC 2.5–6V)

Compatibility

• Works with any DC power source within 2.5–6V range, such as batteries, solar panels, or bench power supplies.
• Can be controlled by microcontrollers (e.g., Arduino, Raspberry Pi) via MOSFET or relay modules for automated systems.
• Suitable for use with standard flexible tubing that fits the 4.7mm inner / 7.5mm outer diameter outlet.

MOKWN Recommendation

Whether you're a student, hobbyist, or professional, the Mini Water Pump is a reliable and affordable solution for your low-flow pumping needs. Its compact design and low power requirements make it a great addition to any maker's toolkit. Order today and get your projects flowing!
