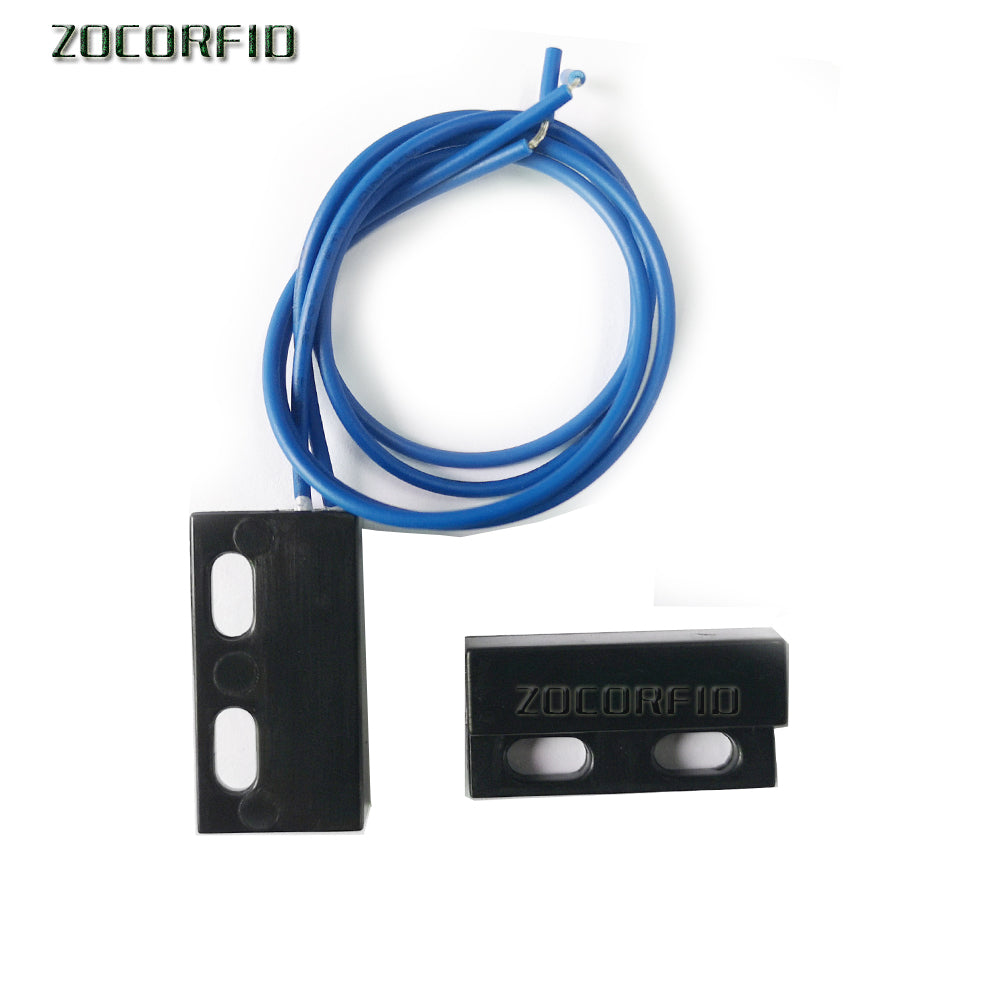

Magnetic Door Switch 220 V - 50 W

Overview

Enhance your home security systems with the MOKWN Magnetic Door Switch 220V - 50W. This reliable and easy-to-install magnetic contact switch is designed to detect when doors or windows are opened, triggering an alarm or alert for enhanced safety. Perfect for DIY security projects, smart home automation, and educational electronics, this switch combines simplicity with robust performance.

Key Features

• High Voltage Rating: Operates at 220V AC, suitable for direct integration with many alarm systems.
• Power Handling: Supports up to 50W, making it versatile for various loads.
• Normally Closed (NC) Contact: The switch contacts are closed when the magnet is nearby, ensuring fail-safe operation (opens circuit when separated).
• Simple Two-Part Design: Consists of a magnet and a reed switch, allowing easy mounting on doors, windows, or other movable parts.
• Durable Construction: Built to withstand regular use, providing long-lasting performance.
• Easy Wiring: Two-terminal connection simplifies installation.

Technical Specifications

• Operating Voltage: 220V AC
• Maximum Power: 50W
• Contact Type: Normally Closed (NC)
• Switch Type: Magnetic Reed Switch
• Mounting: Surface mount (screws or adhesive)
• Cable Length: Approx. 15cm (may vary)
• Dimensions: Switch: 25mm x 14mm x 8mm; Magnet: 25mm x 14mm x 8mm (approx.)

Applications & Use Cases

• Home Security Systems: Use as intrusion detection on doors and windows.
• Alarm Systems: Integrate with alarm circuits to trigger alerts when a door/window is opened.
• Smart Home Automation: Connect to microcontrollers (e.g., Arduino, Raspberry Pi) for automated notifications.
• DIY Projects: Perfect for hobbyists building security or automation systems.
• Educational Demonstrations: Teach principles of magnetism and electrical circuits.

What's Included

• 1x Magnetic Door Switch (reed switch unit)
• 1x Magnet unit
• Mounting screws (if applicable)

Compatibility

• Works with any alarm system that accepts normally closed (NC) dry contact switches.
• Can be used with microcontrollers (e.g., Arduino) using appropriate voltage dividers or relays.
• Compatible with MOKWN's range of relay modules for safe integration.

MOKWN Recommendation

For a complete security solution, consider pairing this switch with our Arduino starter kits or relay modules. It's an essential component for any electronics enthusiast looking to add security features to their projects. Order now and secure your space with reliable magnetic sensing!
