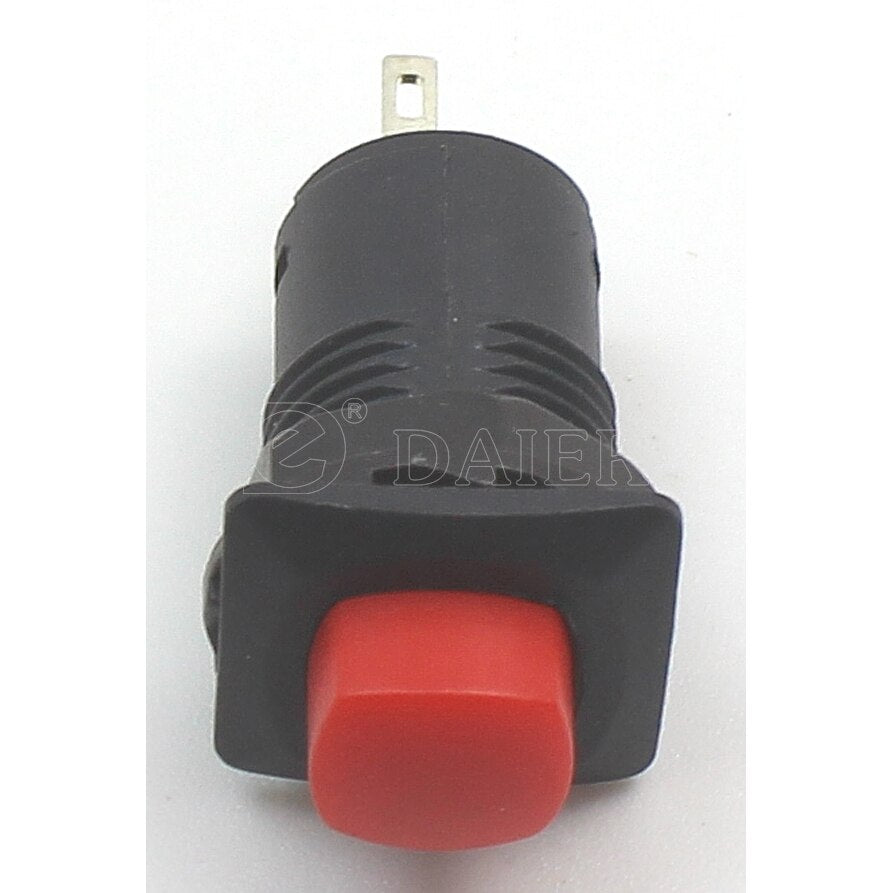

DS-225 OFF-(ON) 1A push button

Overview

Take control of your projects with the DS-225 push button switch. This compact and reliable momentary switch is designed for simple and effective on/off control in a wide range of electronic applications. With a 12.5mm mounting hole, it fits standard panels and enclosures, making it a versatile choice for hobbyists, students, and professionals alike. The red actuator provides clear visual feedback, and its robust construction ensures long-lasting performance.

Key Features

• Momentary Action (OFF-(ON)): This switch is normally off and only makes contact while pressed, ideal for reset buttons, doorbells, and momentary control circuits.
• Compact 12.5mm Mounting: Fits standard 12.5mm holes, perfect for control panels, instrument cases, and DIY enclosures.
• Wide Operating Range: Rated for 12VDC to 250VAC, suitable for both low-voltage DC and standard AC applications.
• 1A Current Rating: Handles up to 1 ampere, sufficient for relay control, signal switching, and small loads.
• Bright Red Actuator: High-visibility button for easy identification and operation.
• Durable Construction: Built to withstand frequent pressing, ensuring reliable performance over time.

Technical Specifications

• Model: DS-225
• Switch Type: Push Button, Momentary (OFF-(ON))
• Contact Rating: 1A
• Voltage Rating: 12VDC ~ 250VAC
• Mounting Hole Diameter: 12.5mm
• Actuator Color: Red
• Terminal Type: Solder Lug (typical)
• Operating Temperature: -20°C to +70°C (typical)

Applications & Use Cases

• DIY Electronics: Reset buttons for Arduino projects, Raspberry Pi, and other microcontroller boards.
• Control Panels: Momentary control for industrial equipment, test instruments, and machinery.
• Home Automation: Manual override buttons for smart home systems.
• Educational Kits: Ideal for school and university electronics labs.
• Prototyping: Use in breadboard or perfboard projects for quick testing.

What's Included

• 1x DS-225 Push Button Switch

Compatibility

• Works with any standard 12.5mm panel opening.
• Compatible with solderless breadboards (via jumper wires) and perfboards.
• Suitable for Arduino, Raspberry Pi, PIC, and other microcontrollers.

MOKWN Recommendation

For reliable and affordable switching, the DS-225 is a solid choice. Its momentary action is perfect for creating reset buttons, foot switches, or any application requiring temporary contact. Pair it with our range of resistors, LEDs, and jumper wires to complete your project. Order now and get it delivered quickly anywhere in Egypt!
